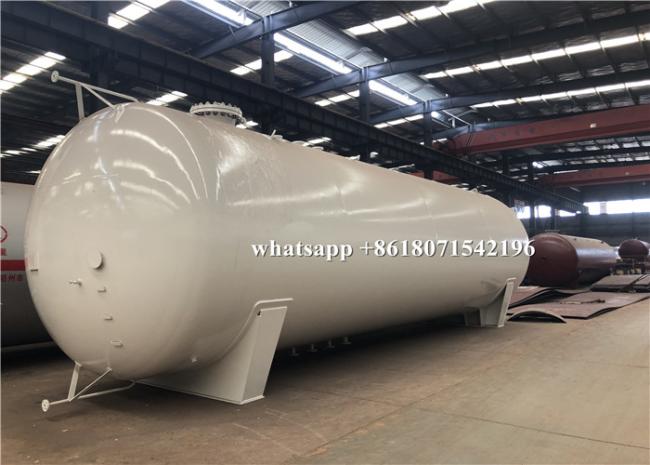

ASME Standard 60CBM /30T LPG Gas Storage Tank DN2700mm Tank Diameter
ASME Standard 60cbm /30 Ton LPG/Propane/Butane Storage/Cooking Gas Tank
Founded in 2004,ChengLi has grown into one of the largest vehicle manufacturers in China and the top 500 private enterprises within 14 years with solid technology,flawless inspection,advanced equipment,reliant quality and flexible modes of operation.Covering 300 hectare,ChengLi owns 45 workshop and 9000 staffs in which more than 800 persons are R&D specialists and more than 5000 are technical workers.
Product Description
1. Storage medium of filling station gas tank : LPG, cooking gas,propane gas,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of filling station gas tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of filling station gas tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
Specification of 30mt filling station gas tank
| Parameter of 60000liters 30tons filling station gas tank | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 60cbm | Thickness of Shell | 14mm | |||
| Tank Material | Q345R | Thickness of End plate | 16mm | |||
| Overall Size | 10962*2728*3318mm | Tank Net Weight | 12750kg | |||
| Tank Diameter | 2700mm | Loading Capacity | 23940kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 420kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Life time | 15 years | |||||
| Accessories | ||||||
| Model | Item | Qty | Junction surface | |||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
| J41N-2.5-100 | Stop Valve DN100 | 1 | RF | |||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
| A42F-25-100 | Safety Valve DN100 | 1 | RF | |||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |||
