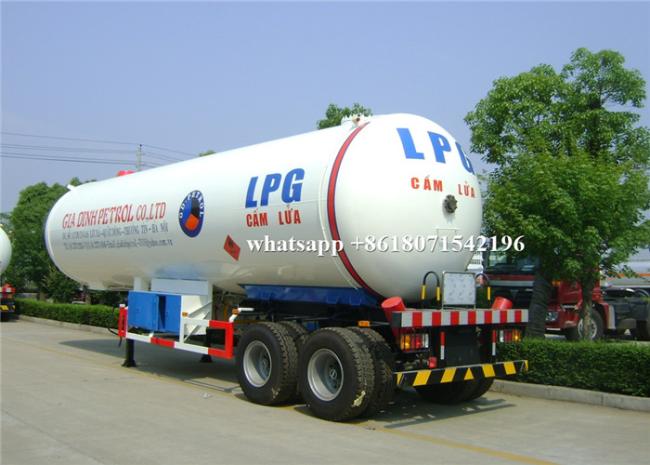

Large Capacity LPG Transport Truck Semi Trailer Propane Bridger Truck
40cbm LPG Road Tanker Truck 20tons Liquefied Petroleum Gas Tank Semi Trailer Propane Bridger Truck
Specification
| Tanker Essential Information | |
| Volume of Tank (cbm) | 45 |
| Overall Dimensions(L*W*H)(mm) | 12254*2500*3730 |
| Tank Dimensions(Inner Diameter*thickness*Length) | 2200*12*12254 |
| Estimated Tare Weight (kg) | 14023 |
| Payload(kg) | 18480 |
| Total Weight(kg) | 32503 |
| Wheelbase(mm) | 7170+1320 |
| Shell of Tanker | |
| Products | Liquefied Petroleum Gas (propane) |
| Fluid Property | Flammable |
| Design Temperature(℃) | -19℃~50℃ |
| Design Pressure(MPa) | 1.61 |
| Corrosion Allowance(mm) | 1.00 |
| Weld Joint Factor | 1 |
| Major Materials of Bearing Pressure | Tanker body:Q345R,12mm, |
| End plate:Q345R,12mm,double ellipse | |
| Main beam:16Mn | |
| Detection | |
| Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ |
| Flaw Detection | 100% Flaw detection |
| Hydraulic Test(MPa) | 2.21 |
| Manhole (As Customer’s Requirement) | |
| Quantity | 1;on top,DN450 |
| Safety Valve(As Customer’s Requirement) | |
| Quantity | 2 |
| Location | On the top of tanker |
| Size | DN50 or As Customer’s Requirement |
|
Level Gauge 3*13T Fuwa |
|
| Type | Manuel rotation type |
| Location | At the rear of the end plate |
| Running System | |
| Axles | 2*12T BPW brand |
| Tire | 12R22.5 Tubeless tire ,8 with one spare tire |
| Landing leg | JOST |
| King Pin | #50 or #90 |
| Control System | |
| Emergency Cut-off Valves | 2 |
| Ball Valve | 2 |
| Liquid Gauge | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Accessories | |
| Tool Box | 2 |
| Wheel Carrier | 1 |
| Fire Extinguisher | 2 |
| Fender | 6 |
| Paint | As Customer’s Requirement |
FAQ
Q1: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q2: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
