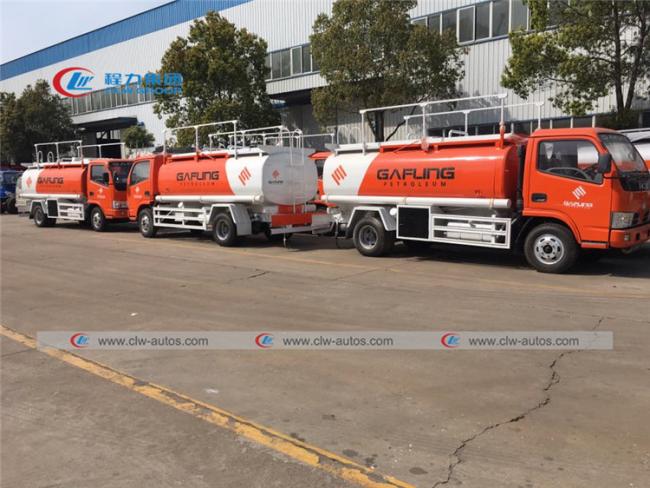

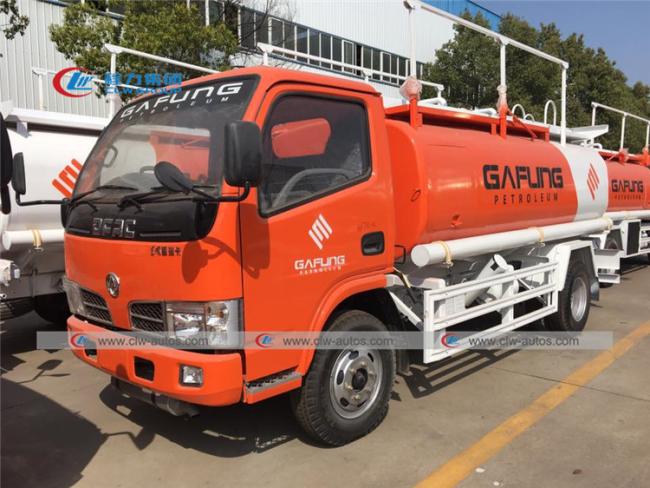

CCC 3m3 Dongfeng 4X2 5 Ton Fuel Delivery Truck
Dongfeng 4X2 5ton Oil Refueling Dispenser Fuel Delivery Tanker Truck
Product Description
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
| General Technical Parameters | |||
| Overall Dimension | 5995×2050x2500(mm) | ||
| Gross Vehicle Weight | 7360(Kg) | ||
| Curb Weight | 3765(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | Dongfeng | ||
| Drive model | 4*2 | ||
| Cabin | Dongfeng, Single, LHD, with air conditioner | ||
| Number of Passengers | 2 | ||
| Engine | Model | 4-stroke direct injection , 4-cylinder in-line, intercooled supercharging, with ABS. | |
| Power | 75KW/102HP | ||
| Emission standard | EURO 2 | ||
| Fuel type | Diesel | ||
| Gearbox | 5 Forwards & 1 Reverse, manual operation. With power steering. | ||
| Brake System | Oil break | ||
| Wheel Base | 3308mm | ||
| Front/Rear Axle Loading | 2000/4000(Kg) | ||
| Tire | 7.00-16, 6pcs with 1 spare tire | ||
| Max Driving Speed | 90(km/h) | ||
| Upperstructure Specification | |||
| Oil Tank | Effective Volume | 6CBM | |
| Transport Oil Type | Diesel | ||
| Tank dimension | 4000x1700x1100 | ||
| Tank Thickness | 4mm | ||
| Tank Material | Q235, carbon steel( also can choose stainless steel,aluminum ) | ||
| Refueling System | 1. Oil pump; | ||
| 2. Oil dispenser machine; | |||
| 3. Hose reel with filling gun. | |||
| Equipment | 1. Manhole 1 Unit | ||
| 2. Ladder handrail | |||
| 3. Electrostatic Wire Reel | |||
| 4. Loading, Discharge | |||
| 5. Emergency cut-off valve 1 Unit | |||
| Options | Compartments, unloading valve, flow meter, API standard manhole, oil vapor recovery, anti-overflow probe. | ||
Production line for oil tank truck & trailer
