12000L 60T LPG Gas Storage Tank For Liquid Petroleum Gas Filling Plant
Price:
negotiable
MOQ:
1 Unit
Delivery Time:
20~30 days after receiving deposit
Brand:
CLW
Product Description
60tons LPG Gas Tank 120,00L Liquid Petroleum Gas Filling Plant
Product Description
1. propane storage tank's storage medium: LPG, propane,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc
2. Available propane storage tank capacity: 5m³~200m³,2ton~100tons
3. Manufacturing standards of propane storage tank: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
| 60tons LPG Gas Tank | |||
| Volume of Tank | 120cbm | ||
| Filling Weight | 47880 kg | ||
| Tank Weight | 24960 kg | ||
| Thickness of Shell (mm) | 18 mm | ||
| Thickness of End plate (mm) | 20 mm | ||
| Tank Diameter (mm) | 3400 mm | ||
| External Dimensions (mm) (length x width x height) | 13820 x 3436X4026 mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa / 17.7Bar | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 500 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN80 | 1 | |
| Inflow Pipe | DN80 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Drain Hole | DN50 | 1 | |
| Manhole | DN450 | 1 | |
| Air-out Pipe | DN50 | 1 | |
| Safety Valve Pipe | DN80 | 2 | |
Safety Accessories (Included in the quotation): Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. |
|||

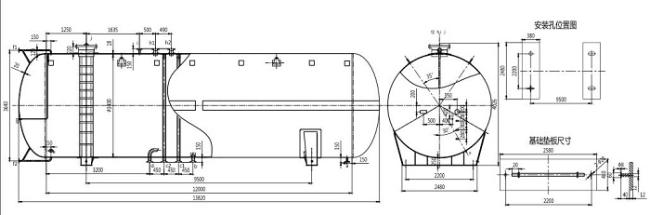

80cbm LPG Gas Tank Diagram

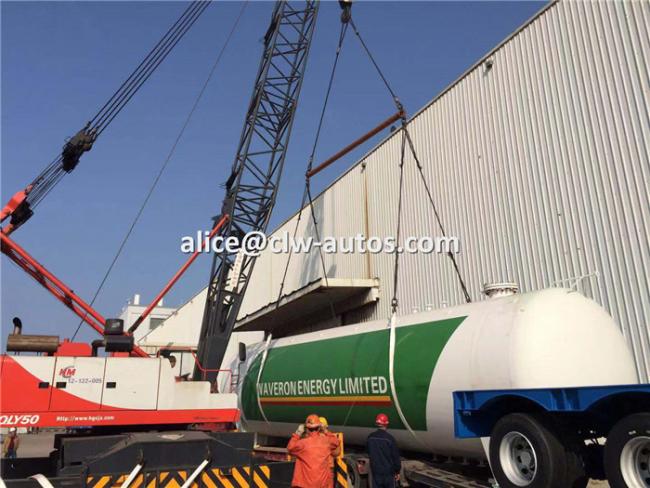

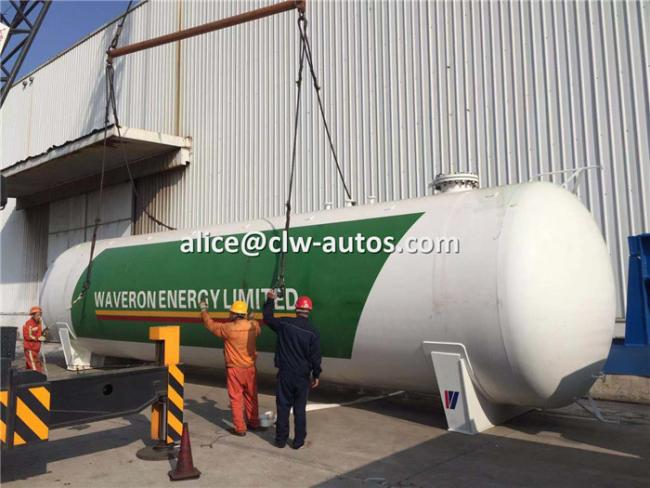

Loading on the vessel
Cooking Gas station design in Nigeria
Cylinders Filling House
Key words: 60tons LPG Gas Tank,60Tons LPG bullet Tank, gas filling plant
