45000 Liters 3 Axle Fuel Delivery Semi Truck Trailer
45000liters Diesel Gasoline Truck Trailer 3-axle 45tons Fuel tanker Semi Trailer
Product Description
- Rust Resist Tank Design, good for fuel delivery, such as diesel,gasoline and so on
- Tank Material: Carbon steel,Aluminum 5083 5454,
- All Aluminum Pipe line with the aluminum valve.
- optional for Bottom Discharge, API Manwhole, Vapor Recovery, Pnumatic Control Bottom Valve.
- Whole Tank Rolling Machine to better protection
- Good Welding Technic with Sub-merged Arc Welding
Specifications of Fuel tanker Semi Trailer
| Main Dimensions | |||||||
| Overall Length | 11780mm | ||||||
| Overall Width | 2500mm | ||||||
| Overall Height | 3880mm | ||||||
| Tare Weight | 10000KGS | ||||||
| Loading Capacity | 45m3 | ||||||
| Photo only for reference, final product can be made according to exact requirements | |||||||
| Tank Body | |||||||
| Shape | Mono block Cylinder | ||||||
| Total Volume(m3) | 45 CBM | ||||||
| Tanker Body Material | 5mm carbon steel | ||||||
| End plate | 6mm carbon steel | ||||||
| Lifting Ladder | Including Top walkway and backside steel material | ||||||
| Manhole cover | 3 manhole cover, ∮500mm 3 sets with 3 breather valves | ||||||
| Bottom Valve | 3 sets of API Pneumatic Bottom Valve | ||||||
| Top Safety Rail | 1 Set | ||||||
| Discharging valve | 3 set ∮100mm discharging valves | ||||||
| No.of Compartment | 3(15000L+15000L+15000L) | ||||||
| Discharging Pipe | 4”rubber hose, 2 pc, 6m long | ||||||
| Chassis | |||||||
| Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | ||||||
| Axle | 3 axles | ||||||
| FUWA 13 Tons | |||||||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||||||
| King Pin | JOST brand 2” bolt-in king pin | ||||||
| Suspension | German design heavy duty mechanical suspension | ||||||
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | ||||||
| Wheel rim | 9.00-22.5 wheel rim, 13 pieces including one spare | ||||||
| Tire | 12R22.5 tubeless tire with one spare tire, 13 pieces | ||||||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | ||||||
| Accessories | One standard tool box | ||||||

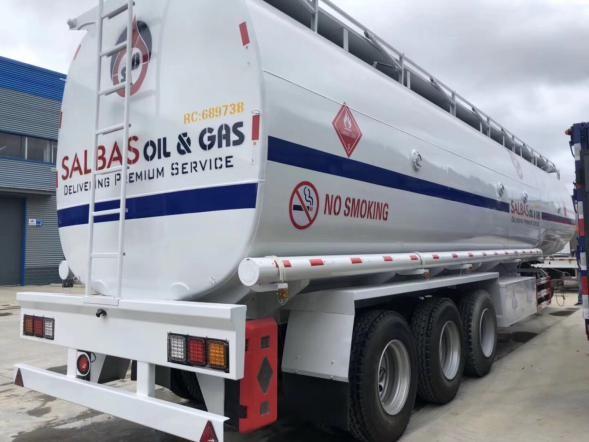

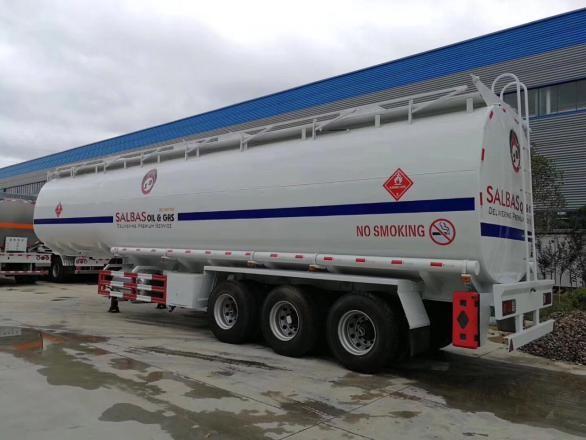

Pictures of Fuel tanker Semi Trailer

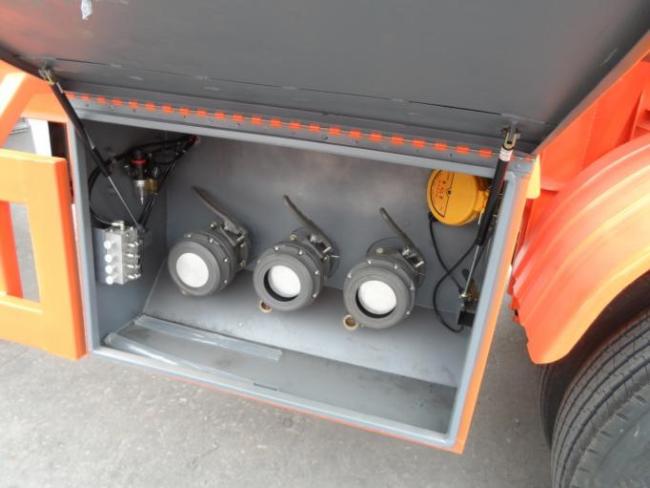

Reference picture of discharging valve
'

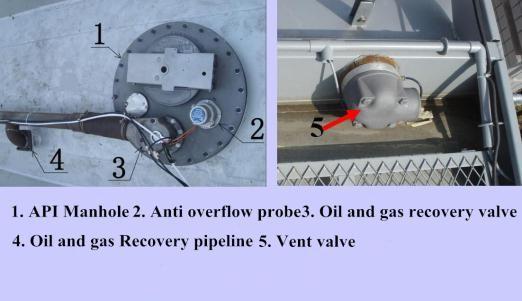

API manhole

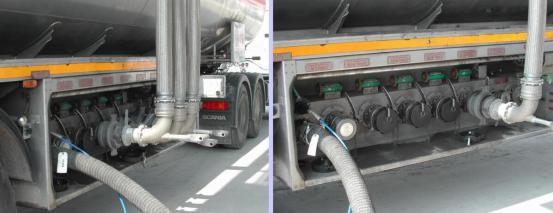

API bottom loading system photos for ref
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of fuel tanker semi trailer I can order from your company?
A: There are various sizes of fuel tanker semi trailer with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied fuel tanker semi trailer to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
