JMC 21M Telescopic Aerial Working Platform Truck For Street Light Repair
Price:
negotiable
MOQ:
1
Delivery Time:
30 days
Brand:
CLW
Product Description
JMC 21meters Aerial Working Platform Truck Telescopic Man Lift Truck for Street Light Repair
Product Description
1. Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.
2. Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.
3. 360 degree Rotation Arms.
4. Arm and H leg Automatic Locking System to secure safety handling.
| Parameter | Overall dimension (Length*width*high) | (mm) | 5998×2050×2850 |
| Total Mass | (kg) | 4495 | |
| Kerb Mass | (kg) | 4295 | |
| Wheel base | (mm) | 3360 | |
| Front/rear tract base | (mm) | 1385/1425 | |
| Approach/rear angle | 27/11 | ||
| Max speed | (km/h) | 90 | |
| Fuel type | diesel | ||
| Engine | Engine type | Yunnei | |
| Displacement standard | EURO 3 | ||
| Chassis | Chassis type | JMC | |
| Drive system | 4x2 | ||
| Tire type | 7.00R16 | ||
| Number of tire | 6 | ||
| Front/rear axle loading(kg) | 1015/2025 | ||
| passengers | 3 | ||
| Cabin | Single, with 2 passengers allowed, with Air conditioner | ||
| Special parameter | Working platform rating loading | (kg) | 200 |
| Max. Working Height | (m) | 21 | |
| Platform height | (m) | 19.3 | |
| Boom type | Five section telescopic type | ||
| Loading of hook | (kg) | 800-1000 | |
| Bucket rotation angle | (°) | 360 |
Reference photos

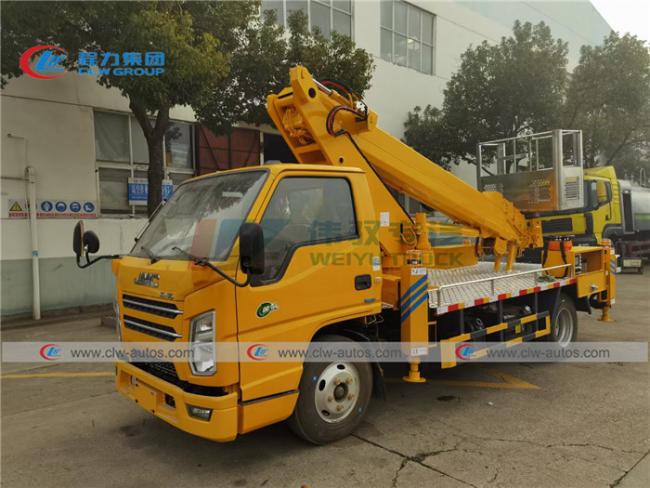

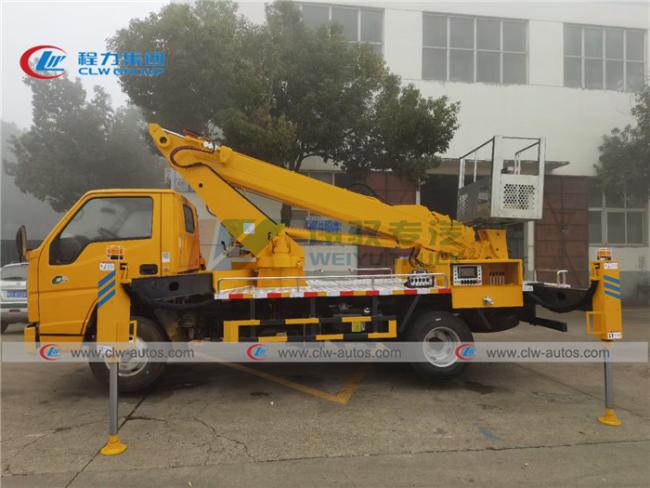

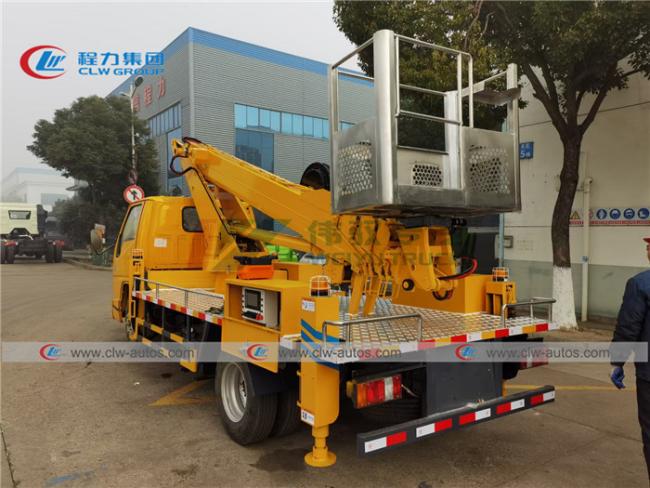

Aerial working platform Truck Working Show
Bulk Shipment For Aerail working Platform Truck
For more details contact alice +86 180 7154 2196
