10000L SA516 Liquefied Petroleum Gas Storage Tank
LPG 10, 000L/10cbm 5mt Dispenser Tanker Cooking Auto Gas Skid Station for Africa
Product Description
Cylinder Car Refilling Tanker 10Ton 20Ton LPG Skid Filling Station
1. LPG Skid Station for cooking gas refilling in home use cylinder in different size.
2. One Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment: Sunshade for filling area, Leakage Detector.
Product Specifications
| Accessories list of lpg tank | |||
| Parts No | Size | Parts Name | Model No. |
| a | DN50 | Cut-off Valve for Drain Outlet | J41N-2.5-50 |
| b | DN50 | Cut-off Valve for Liquid Phase Outlet | J41N-2.5-80 |
| c1 | DN50 | Cut-off Valve for Gas Phase Balance Outlet | J41N-2.5-50 |
| c2 | DN50 | Cut-off Valve for Gas Phase Balance Outlet | J41N-2.5-50 |
| d | DN50 | Cut-off Valve for Liquid Inlet | J41N-2.5-50 |
| i | DN50 | Cut-off Valve for Air Drain Outlet | J41N-2.5-50 |
| f1 / f2 | DN25 | Magnetic Level Gauge | J41N-2.5-25 |
| e | M33*2 | Thermometer | WTQ-280 |
| g | M20*1.5 | Pressure Meter | Y-100T |
| / | / | Ball floating Level Meter | HG21584-95 |
| h | DN80 | Safety Valve | A42F-25 |
| j | DN450 | Manhole | HG20592-WN |
| Remark | The f1, f2 is the Magnetic Level Gauge. But the Ball Floating Level Meter is recommended for you. | ||
| Accessories list of skid station | ||
| Item name | Model Number | Quantity |
| CORKEN pump and ABB motor | Z2000EGAEE | 1 Piece |
| Digital filing scale | / | 4 Pieces |
| Safety Reverse Valve | AH42F-25DN25 | 1 Piece |
| Check Valve | H42N-40DN50 | 2 Pieces |
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece |
| Discharging pipe | L=4M DN50/DN25 | 1 Piece |
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces |
| Filling Gun pipe | L=2M | 3 Pieces |
| Elbow Cap | DN65 | 2 Pieces |
| Elbow Cap | DN50 | 10 Pieces |
| Alarm system | QJ-D-99F | 2 Pieces |
| Flange | 2.5MPaDN65 | 1 Piece |
| Flange | 2.5MPaDN50 | 50 Pieces |
| Flange | 2.5MPaDN32 | 1 Piece |
| Flange | 2.5MPaDN25 | 8 Pieces |
| Flange | 2.5MPaDN15 | 20 Pieces |
| Metal gasket | DN65 | 5 Pieces |
| Metal gasket | DN50 | 80 Pieces |
| Metal gasket | DN32 | 2 Pieces |
| Metal gasket | DN25 | 10 Pieces |
| Metal gasket | DN20 | 2 Pieces |
| Metal gasket | DN15 | 30 Pieces |
| 8.8 degree Bolt | 16*70 | 300 Pieces |
| 8.8 degree Bolt | 12*55 | 100 Pieces |
| Bottom Base | / | 1 Piece |

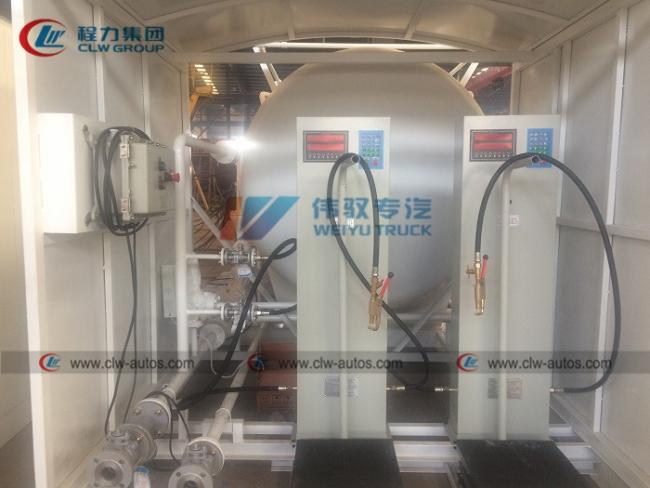

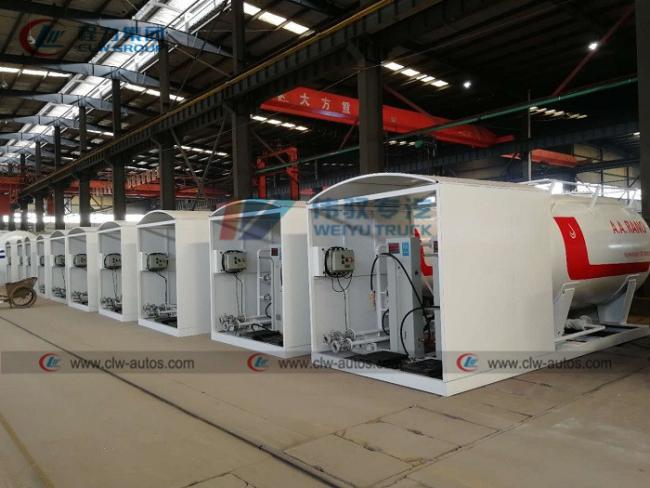

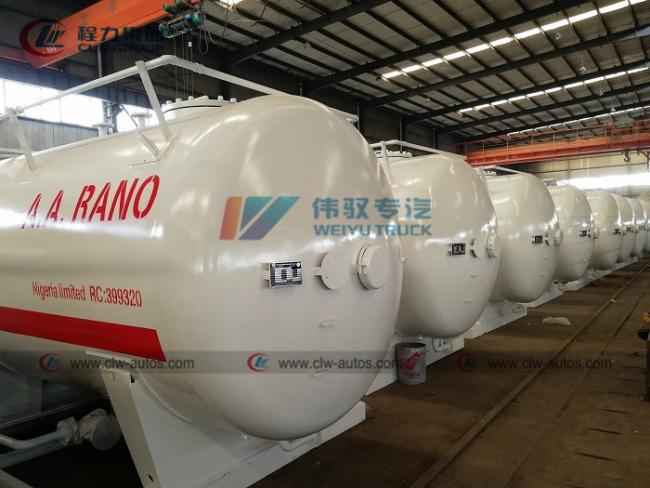

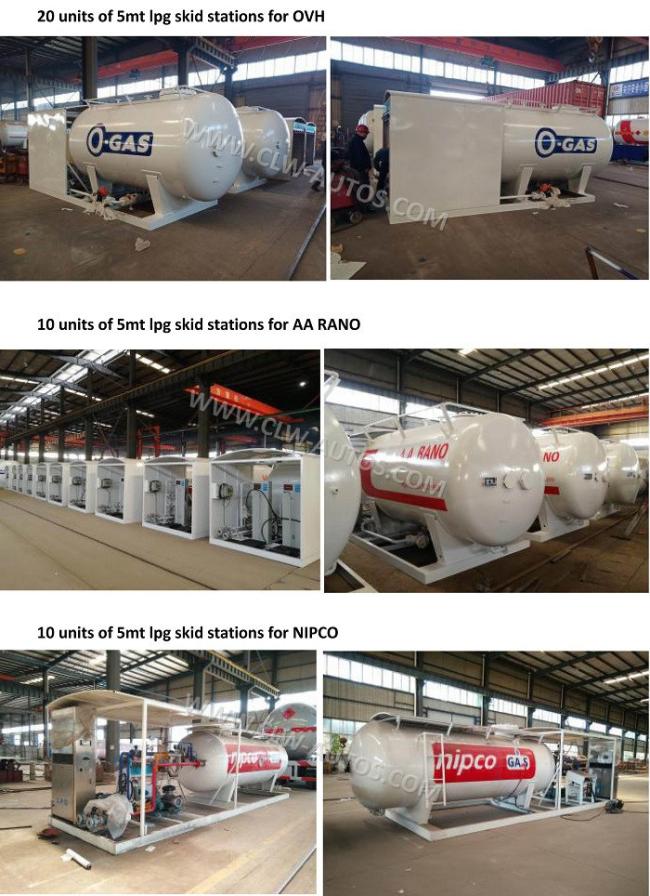

Reference Photos
Our Service
1)Quick feedback to solve your questions;
2)Professional engineering and production team;
3)Related Accessories and spare parts offered,no future worries;
4)Regular customer after-sale visiting;
5)Free technical staff training and guidance;
6)Reasonable price and good quality;
7)Quick delivery and shipment.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
