3 Axle 38cbm 50cbm Oil Refueling Semi Trailer Truck
Factory Price High Quality 38000L-50000liters Fuel Tank Dispenser 3-Axle 38m3-50cbm Oil Refueling Semi Trailer Truck
Product Description
1-Oil Tanker Trailers ,also called oil tanker semitrailer,fuel tank semitrailer,oil tanker trailer,
oil semitrailer,semi tanker trailer,stainless steel tanker trailer,carbon steel fuel trailer is used to deliver/transport/haulage oil,eatable oil,palm oil,maripa oil,gasoline,diesel,kerosene and so on.
2-Oil Tanker Trailerscan be designed as customer's request according to special standard request of TOTAL,vietnam,Tanzania and Zambia.
3-Oil Tanker Trailers is optional for air bag suspension,front axle lifting.
4-Nice shape and rational structure.
5-High class running system and tank material.
6-High-intensity kingpin and landing legs.
7-Top gemany brand BPW axle or Chinese brand FUWA axles.
8-Durable and long term service life.
Product Specification
| Tare weight | 9500kg |
| Volume | 45m3 |
| Overall length | 12300mm |
| Overall width | 2500mm |
| Overall height | 3950mm |
| Tank body | Q235A/5mm steel |
| End plate | Q235A/6mm steel |
| Axle number | 3,Brand:fuwa,Capacity:13T |
| suspension | mechanical suspension |
| Leaf spring | Leaf spring |
| Manhole cover | 500mm manhole cover.2 sets with 2 breather valve. |
| Tire | 315/80R22.5 Triangle brand,12pcs |
| Wheel rim | 9.0-22.5 steel wheel rim |
| Discharge valve | 2 sets of 100mm discharge valves |
| Discharge pipe | 4"rubber hose,2pcs,6m long |
| Kingpin | 3.5"bolt-in king pin |
| Landing gear | JOST brand two-speed,manual operating,heavy duty landing gear |
| Bottom valve | 1set of bottom valve |
| Outside sheet | 1.2mm steel sheet |
| Compartment | One |
| Braking system | WABCO RE6 relay valve;T30/30 Spring brake chamber;40L air tanks |
| Painting | Complete chassis sand blasting to clean rust,1coat of anti-corrosive prime,2coats of final paint |
| Accessories | One standard tool box. |
| Main beams | Opting for high tensile steel Q345B welded by automatic submerged-arc processes |

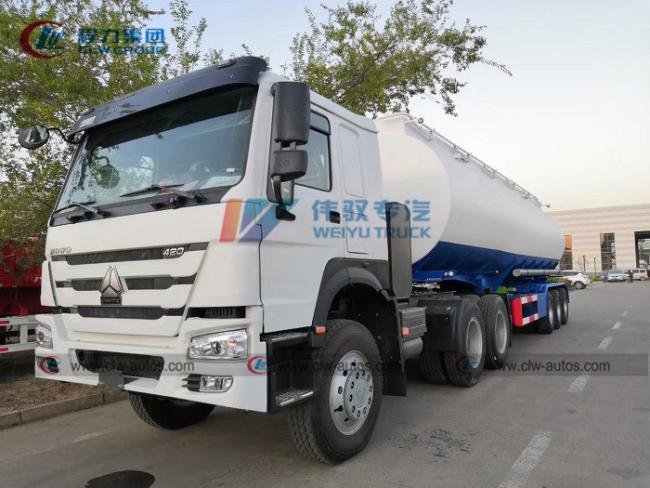

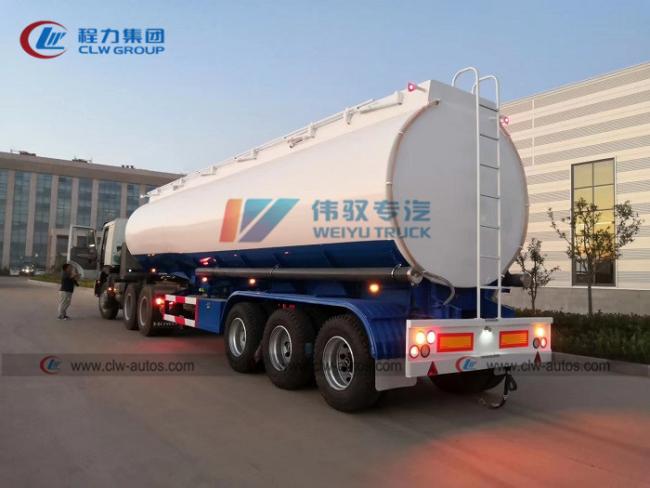

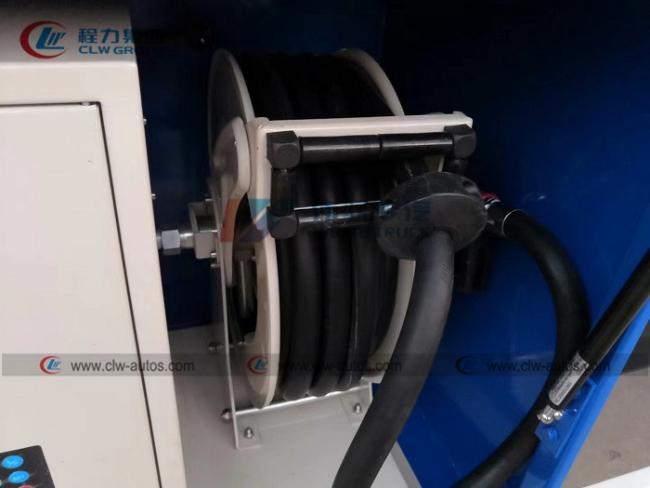

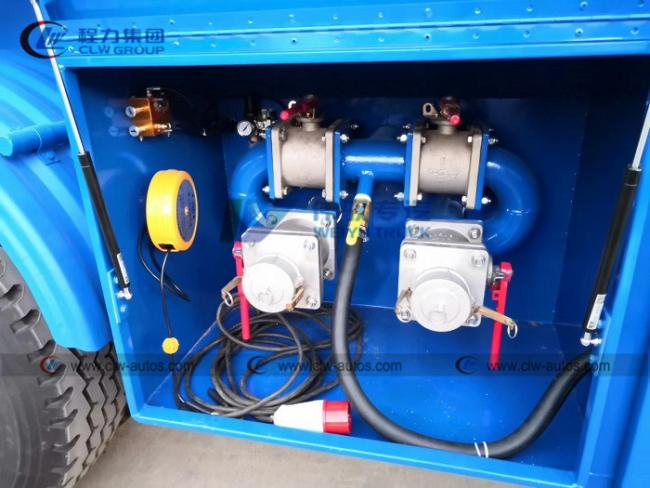

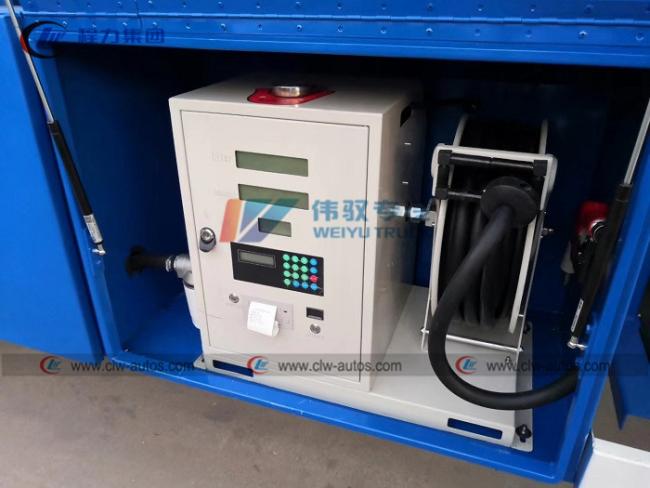

Reference Photos
Main Structure Diagram
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of fuel tank trailer I can order from your company?
A: We can supply various sizes of fuel tank trailer from30-50tons,etc.
Q2: What's the material of your fuel tanker?
A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.
Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?
A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
