JMC 4 Brushes 8cbm Stainless Steel Road Cleaning Vehicle
JMC 4 Brushes Road Cleaning Vehicles 8cbm 8000liters Vacuum Street Sweeper Truck
Product Description
2-The Vacuum Street Sweeper has the functions of road cleaning, road sweeping,road edge and curb stone surface cleaning, low pressure washing, spray dust removal and so on. There are various operation modes such as "full wash", "left wash", "right wash", "full sweeping", "left sweeping" and "right sweeping". Select "Full Wash" mode to clean the square and pavement, the cleaning efficiency is high, and the washing rate is over 90%. Select the "Left Wash" or "Right Wash" mode to clean the pavement and curb and scrub the curbstone facade. The sweep mode can be selected when road cleaning or road cleaning is required. When spray dust removal is required, the spray device can be turned on for spray dust removal. Low-pressure flushing of the road surface like a sprinkler.
3- Vacuum Street Sweeper is the best choice for road, factory, residential area sweeping & Cleaning.
4-All function contained in 1 control panel in cabin, Easily for 1 man contorl.
5-Stainless Water Tank & Garbage Tank for long time use.
6-Hydraulic Controlled Brush with automatic retreating system to avoid collosion.
7-Floating Suction Pan to adjust as per road height.
Advantages
1. The garbage bin is made of stainless steel with a filter plate inside, which can effectively prevent light objects such as leaves from blocking the air outlet and dust from being discharged.
2. Anti-corrosion, anti-rust and anti-virus treatment inside the water tank.
3. The cleaning structure of "Center 4 brush + rear suction cup", the front sweeping disk has automatic obstacle avoidance function, and the left and right sweeping brushes can be controlled separately.
4. According to the user's requirements, it can be equipped with pre-shooting, post-sprinkling, spraying, self-cleaning reel, operation monitoring system, auxiliary suction device and snow shovel.
Product Specification
| Cabin | Driving type 4x2 RHD or LHD | ||||||
| single row,with two seat,with A/C | |||||||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6830*2220*2650 | |||||
| Wheel base (mm) | 3815 | ||||||
| Wheel track (front/rear) (mm) | 1680/1640 | ||||||
| Approach/Departure angle(°) | 20/13 | ||||||
| Weight in KGS | Tare Weight | 5800 | |||||
| payload | 2215 | ||||||
| Overall Weight | 8210 | ||||||
| Front axles loading capacity | 1x2950 | ||||||
| Rear axles loading capacity | 1x5260 | ||||||
| Engine | Brand | JMC | |||||
| Model | JX4D30A5H | ||||||
| Horse Power(HP) | 152HP | ||||||
| Emission standard | EuroV | ||||||
| Gearbox | Mechanical 5 forwards & 1 reverse with Synchronizer,Manual Type | ||||||
| Steering | LHD or RHD | ||||||
| Tire | 7.50R16LT,6 tires with one spare | ||||||
| Driving Type | 4X2 Rear Axle Drive | ||||||
| Suspension Type | Steel Plate Spring | ||||||
| Steel Spring No. (F/R) | 8/10+7 | ||||||
| Brake Type | Double circuit pneumatic brake, drum type | ||||||
| Braking Length(Full Load 30km/h) | ≤10m | ||||||
| Max. driving speed(km/h) | 99 | ||||||
| Min. Radius of Turning Circle(m) | 8 | ||||||
| Max. Grade-ability | ≥30% | ||||||
| Fuel Consumption of Engine | Driving(L/100km) | Working(L/h) | Working(L/10000cbm) | ||||
| ≤12 | ≤6 | ≤3 | |||||
| Special Function Parts | |||||||
| Water tank | 2000 Liters,4mm Stainless Steel | ||||||
| Garbage Hopper | 7cbm,4mm Stainless Steel,with high pressure self-cleaning device for cleaning garbage hopper | ||||||
| Cleaning Width (mm) | 2800~3200 | ||||||
| Sweeping Speed(km/h) | 3~15 km/h | ||||||
| Washing speed(km/h) | 15~20km/h | ||||||
| Max. Cleaning Capacity | 48000m2/h | ||||||
| Suction Capacity | Density(g/cbm) | 2 | |||||
| Weight(kg) | 1.5 | ||||||
| Suction granularity(mm) | ≥100 | ||||||
| Dumping angle | ≥45° | ||||||
| Sweeping Efficiency | ≥96% | ||||||
| Working Noise(db) | <88 according with GB7258 regulation | ||||||

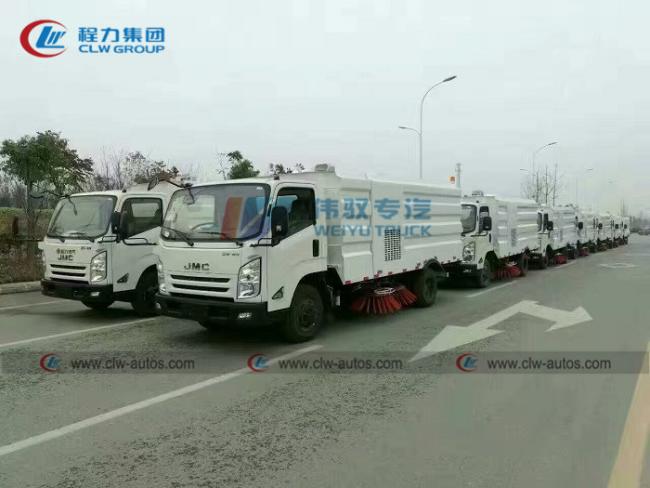

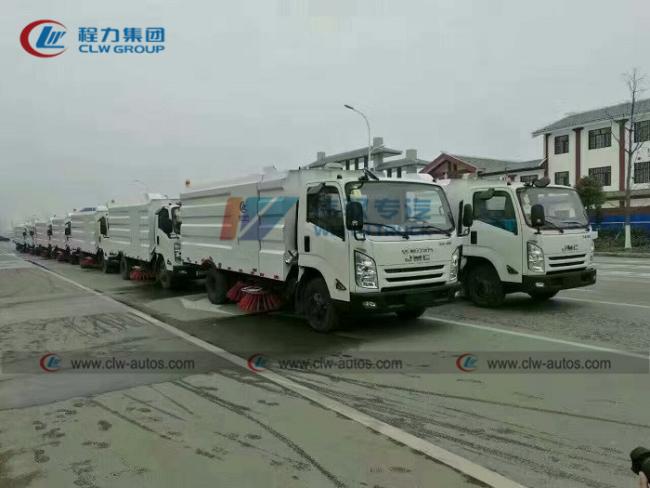

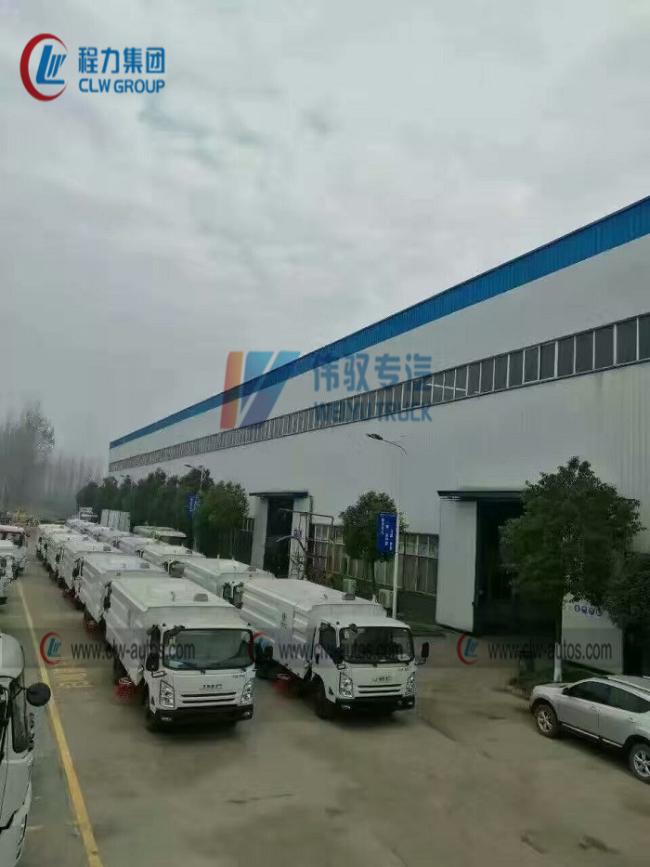

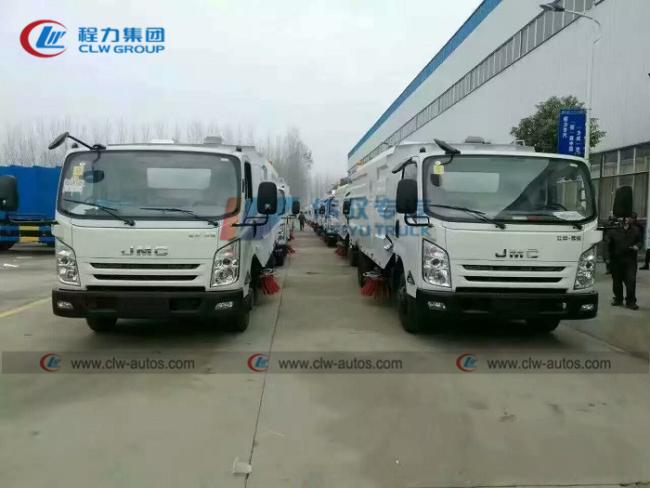

Reference Photos

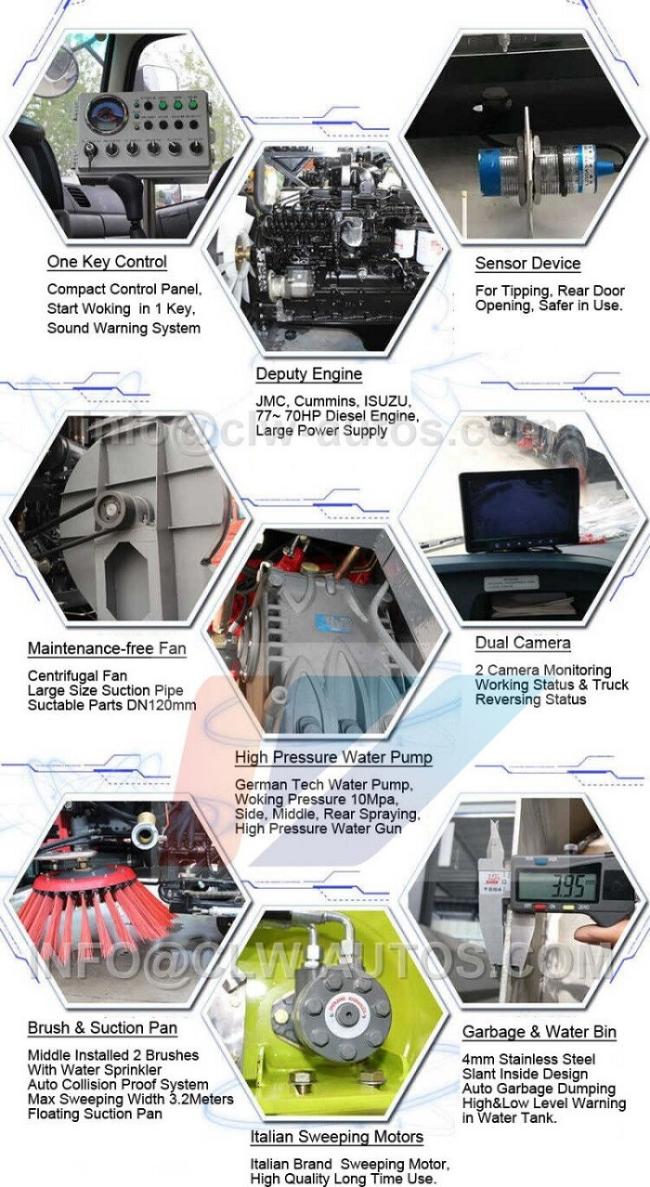

Main Details
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of dust vacuum suction trucks I can order from your company?
A: There are various sizes of dust vacuum suction trucks,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied dust vacuum suction trucks to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many South America, Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
