Euro V 4CBM 4000L 98HP ISUZU Vacuum Sewage Pump Truck Description -- Vacuum pump truck(also called pumping service truck,vacuum septic tank,vacuum tanker truck,sewer cleaning truck, vacuum septic truck,septic cleaner truck,high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck,septic jetter truck,sewage jetting truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, septic,fecal,sewer,sewage to avoid secondary pollution. ISUZU vacuum pump truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of water oil,waste water,fecals, mud, crude oil and other liquid materials. Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.
Feature - tanker material optional for carbon steel or stainless steel 304; -- Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm; -- Sludge Tanker Truck's pump is optional for chinese brand Yifeng or weilong pump,water ring suction pump,Italy brand BP,Jurop, Moro Keiser imported brand; -- Suction speed less than 10min and and discharge speed less than 8 min; -- horizontal suction distance: within 80 meters; -- Vertical suction depth:within 9 meters;
--- Quality chassis , perfect performance --- Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.
--- Nice shape , rational structure
--- Massive, durable ,perfect performance
--- Prolonged service time

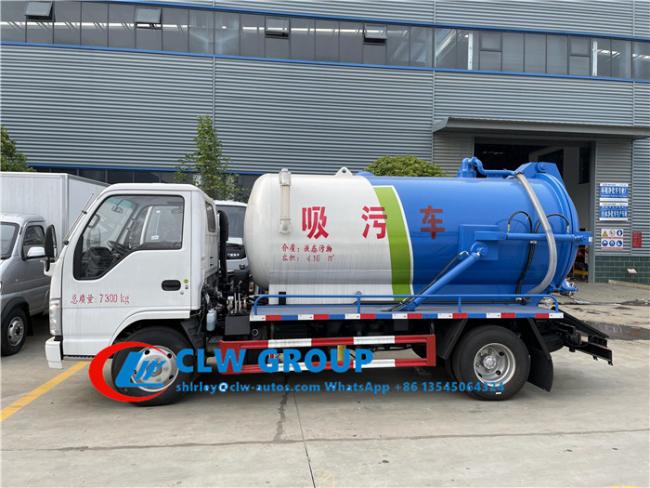

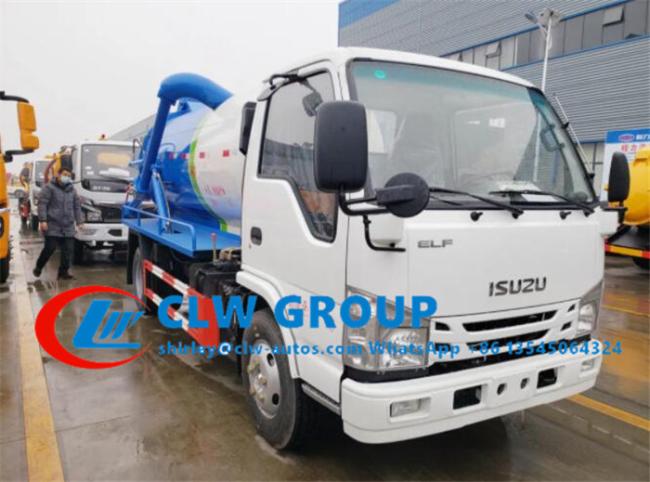

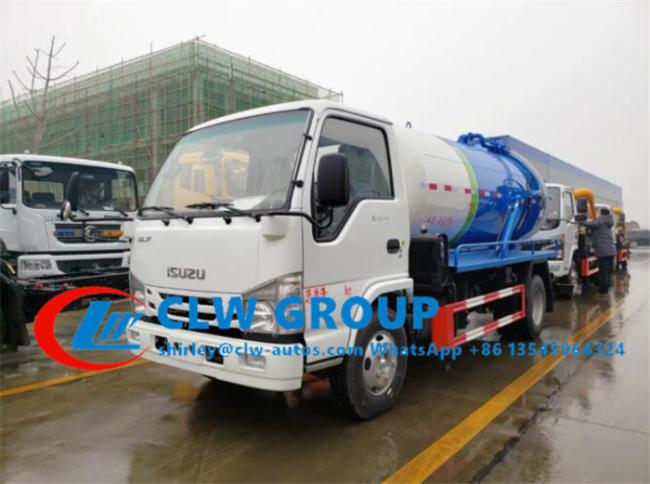

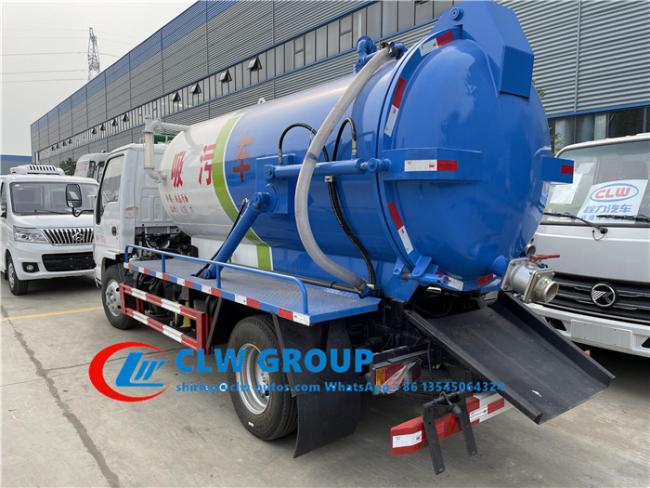

Reference picture of 4000L isuzu vacuum pump truck as follows Wanna get a detailed video of above isuzu 4tons pumping service vacuum truck?Click here

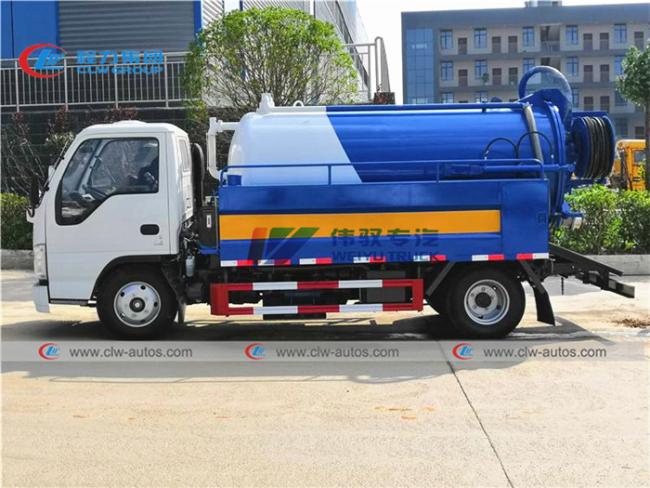

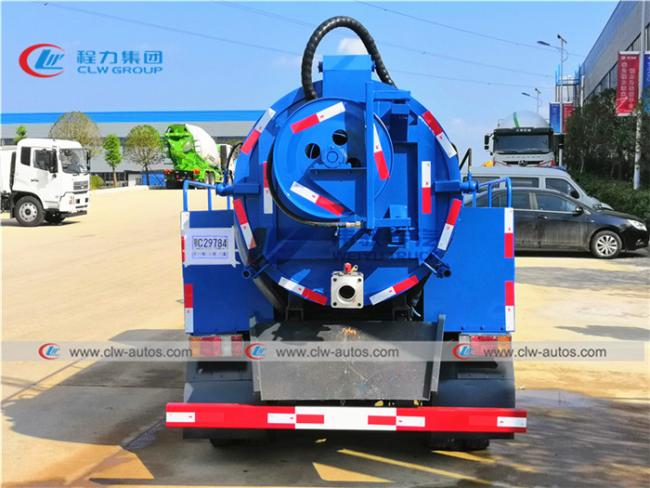

ISUZU VACUUM PUMP truck is optional for another design with water tanker and high pressure flushing and washing device for high pressure sewer cleaning service as follows,
Specification
Chassis parameters
Cabin ISUZU 100P cabin/Left hand drive/4x2
Loading weight(kg) 3800kg
Wheelbase(mm) 3360 mm
Dimensions(mm) 5900*1900*2400mm
Front/Rear Axle loading(kg) 2000/4000 kg
Wheel track (front/rear) (mm) 1770/1586 mm
Front/Rear overhang(mm) 1210/1490 mm
Approach/Departure angle(°) 24/12 °
Max. driving speed(km/h) 100 km/h
Clutch Reinforced diaphragm clutch
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 6 pcs with one spare tire
Specifications 7.00R16
Gear box Manual type,ISUZU MSB transmission/ 5 forward & 1 reverse
Engine
Brand ISUZU engine
Model 4KH1CN5LS
Fuel type Diesel
Displacement(ml) 2999ml
Power(kw) 72 kw
Horsepower(HP) 98 HP
Max. Torque(N.m) 220
Emission standard Euro V
Sewage Suction Tanker
1) Sewage tank and water tank material are carbon steel, tanker body thickness 5mm, tank head thickness 6mm.
2) Equipped with 10pcs different thrust cleaning nozzle, suitable for cleaning and dredging of different sewer.
3) Equipped with sludge window,self flow outlet and 1pc sludge suction tube length 6m~8m.
5) Vacuum water pump
Model : SK-6
Type : water ring pump
Vertical suction: 9m
Flow : 1.5m3/min
Structure of a vacuum pump truck
Why do you choose us for ISUZU vacuum truck?
1. well experienced truck production company to offer high quality and competitive-price vacuum sewage suction truck to our worldwide customers. 3. Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
5. Timely shipment
6. Overseas training and after sales service is available
