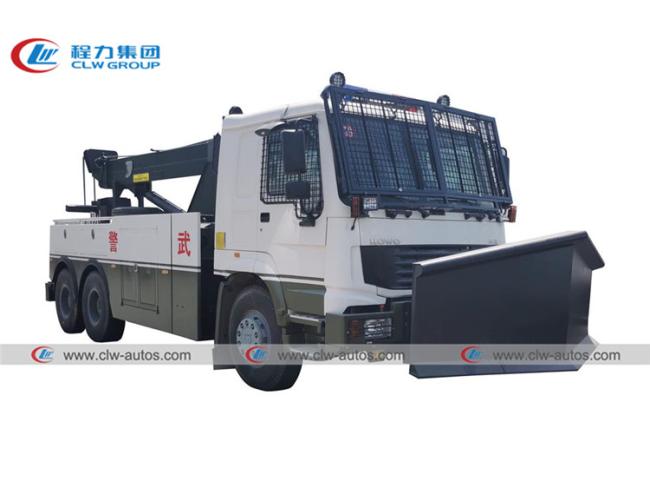

Anti Riot 360 Degree Turning 20T Wrecker Tow Truck

Police Riot Barrier Breaking 20Ton Full Turning 360 degree Tow Truck

Product Description

20Ton Full Rotator Wrecker Tow Truck

Chassis configuration:

• Howo flat-topped luxury cab,
• Anti- Riot Steel Mesh on all glass windows.
• Anti-Rioat Heavy Duty Steel Blade to break out road block.
• Sinotruk 340 horsepower national four engine,
• Sinotruk 10-speed gearbox,
• 7 tons front axle, 16 tons double rear axle,
• 13.00R20 or 12R22.5 Tubless Tire,
• Original power take-off, air conditioner.

Upper Body Specification:

• 20Ton Hoisting Crane, Full Rotation Booms, 2 section arms,
• 2Unit 100KN hydraulic winch, with 40m steel wire rope,
• 20Ton Underlift with length in 2800mm.
• Double-sided linkage operating devices, front bumpers with counterweights,
• 3 rear working lights, 1 hand washing box,
• 1 set of U-shaped tire holding device, 5 pairs of fork holders, 1 pair of fork holders, 2 chain hooks, 1 long row of LED engineering lights, auxiliary light assembly 1 set, 1 set of auxiliary brake air pipe assembly.

Specification of emergency towing truck

20TON Rotator Wrecker Tow Truck
Product Name	Wrecker Tow Truck	Overall Size (mm):	10120×2500×3800
Chassis Model:	ZZ1257N5847E1	GVW:(kg)	25000
Curb Weight:(kg)	21000(Kg)	Approach /Departure Angle(° )	14/14,14/12
Max Driving(km/h):	102	Front /Rear Overhange(mm):	1500/1800,1500/2020
Emission Standard:	Euro 2 ~ Euro 6
Chassis Specification
Model No.:	ZZ1257N5847E1	Axle Loading	7000/18000(2Unit)
Axle:	3	Fuel Kind:	Diesel
Wheel Base(mm):	5825+1350, 5800+1400,	Front Tracking(mm):	20,222,041
Cabin Allow:	2,3	Rear Tracking(mm):	1830/1830
Tire Number:	10	Leaf Spring:	10/12,4/12,4/5,10/-,4/-
Tire Size:	12.00R20 16PR/
Vehicle description:	"The corresponding relationship between the lifting weight (kg) and the number of passengers (person) in the cab is 3870/2, 3805/3. The corresponding relationship of vehicle size/rear suspension/wheelbase is (mm): 10475/1800/5825+1350, 10500/1800/5800+1400, 10095/2020/5225+1350, 10120/2020/5200+1400.
Engine parameters
Engine Model	Engine Manufacture	Displacement(ml)	Power(kw)
D10.34-50	Sinotruk	9726	249









Structure of tow wrecker truck 8tons







Item No.	Name
1	chassis
2	Warning lamp
3	Single lamp(white-front clearance lamp;red-rear clearance lamp
4	Winch and steel rope
5	Loading plate
6	Side signal lamp
7	Chain hook
8	Wheel lift
9	“L” bracket
10	Operation and hydraulic system
11	Auxiliary wheel
12	Side guard rail
13	Tool box and accessories
14	PTO and oil pump
15	Witch and operation handle of PTO





Our Service

• Quick feedback to solve your questions

• Professional engineering and production team

• Related Accessories and spare parts offered,no future worries

• Regular customer after-sale visiting

• Free technical staff training and guidance

• Reasonable price and good quality

• Quick delivery and shipment



FAQ



Q1: What kinds of emergency towing truck I can order from your company?

A: There are various sizes of emergency towing truck with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied emergency towing truck to any overseas companies?

A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.



Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
