FAW 8X4 30000L Fuel Delivery Tank Truck With Flow Meter
FAW 8x4 30000Liters 8000galon Diesel Petrol Gas Tanker Delivery Truck
Description:
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Specifications
| Description | FAW 8X4 30cbm Fuel Tank Truck | |
| Drive Model | 8x4 | |
| Fuel Type | Diesel | |
| Chassis | FAW CA1310 | |
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 11980X2500X3500 |
| Wheel base (mm) | 1900+4500+1350 | |
| Overhang (front/rear) (mm) | 1375/2855 | |
| Wheel track (front) (mm) | 1914/1914 | |
| Wheel track (rear) (mm) | 1847/1847 | |
| Approach/Departure angle(°) | 16/10 | |
| Weight in KGS | Curb Weight | 11205 |
| GVW. | 31000 | |
| Max. driving speed(km/h) | 79 | |
| Engine | Model | BF6M1013 |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 276HP | |
| Emission standard | Euro III | |
| Gearbox | 8 forwards & 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 380 | |
| Tire | 11.00R20, 12pcs + 1 spare | |
| Number of axles | 4 | |
| Brakes | dual circuit compressed air brake | |
| Tank | ||
| Material | Aluminum alloy 5083(Aluminum, stainless steel optional) | |
| Tank Shape | Elliptic cylindrical | |
| Medium and density | Petrol 700kg/cbm | |
| Body Internal Dimension | 9200x2480x1680mm | |
| Thickness | 6mm | |
| Fact cubage | 29.4cbm | |
| Standard Equipment | 1.Europen standard tank mouth 2.Ladder 3. Guardrail 4. Anti-wave partition 5.Sea valve 6. ABS and GPS |
|
| Optional Equipment | 1. Adding compartments 2. European standard vapor collecting system 3. Air conditioner |
|

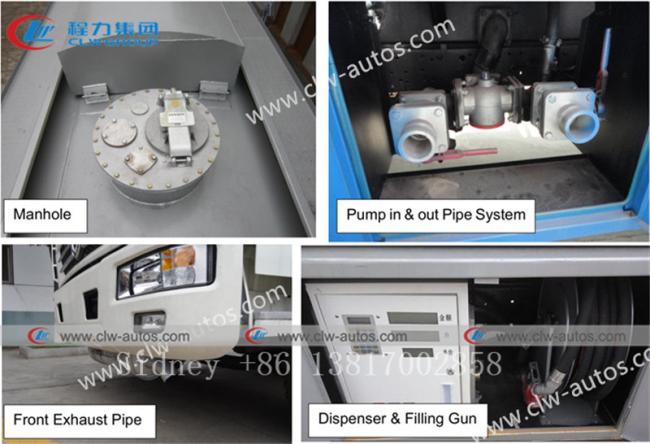

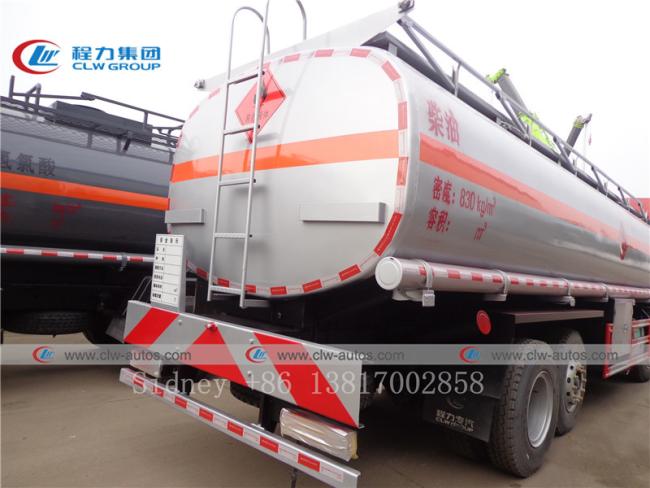

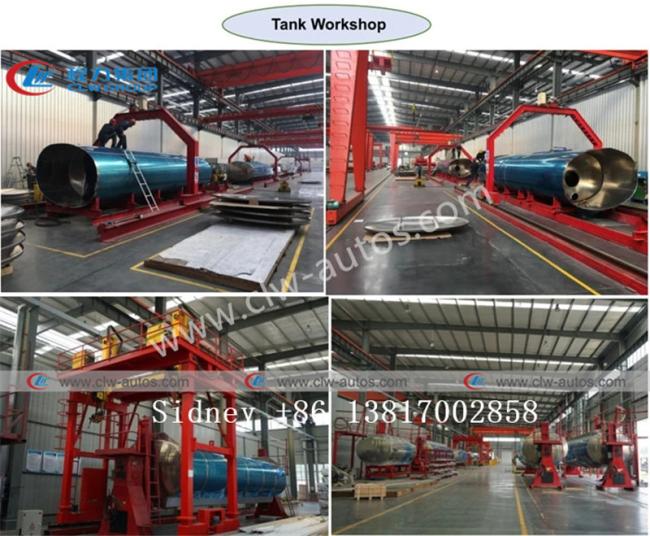

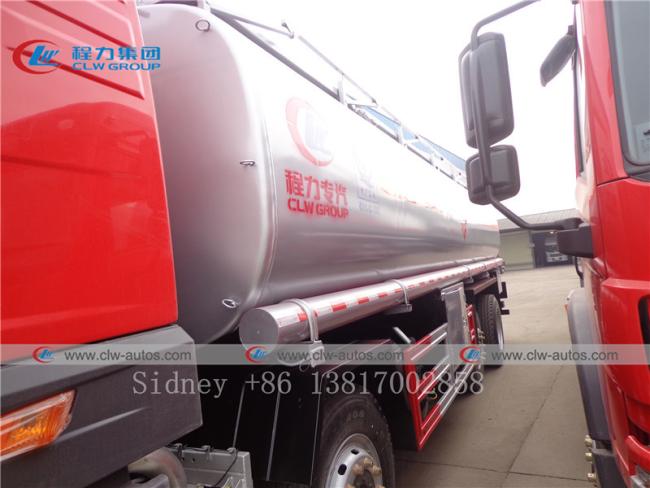

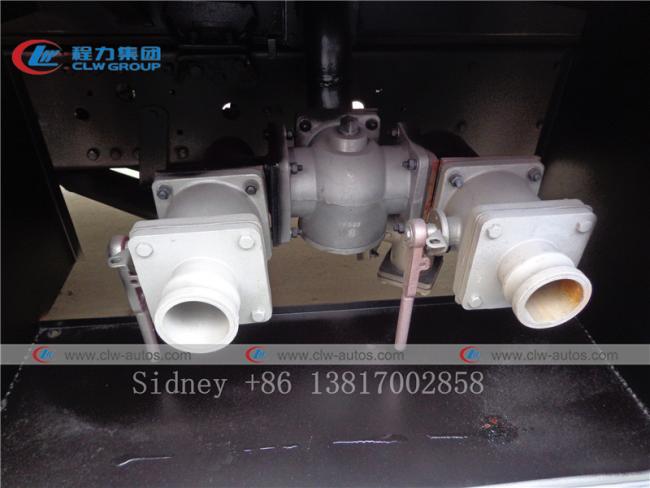

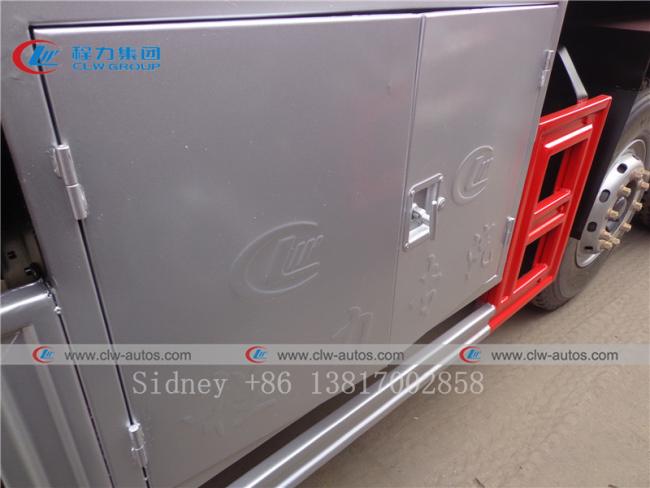

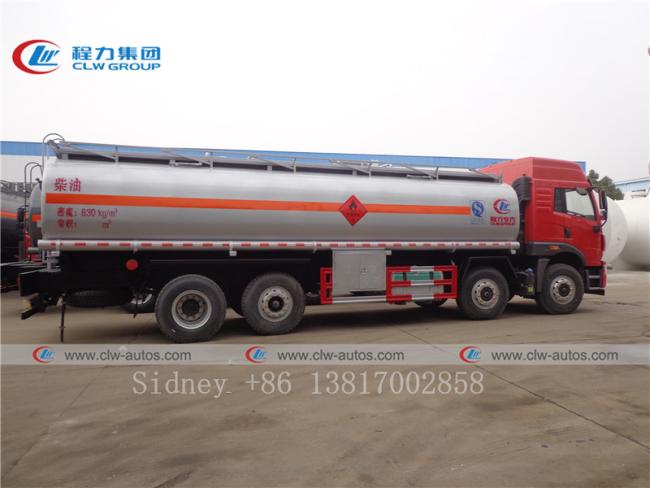

Reference photos
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
