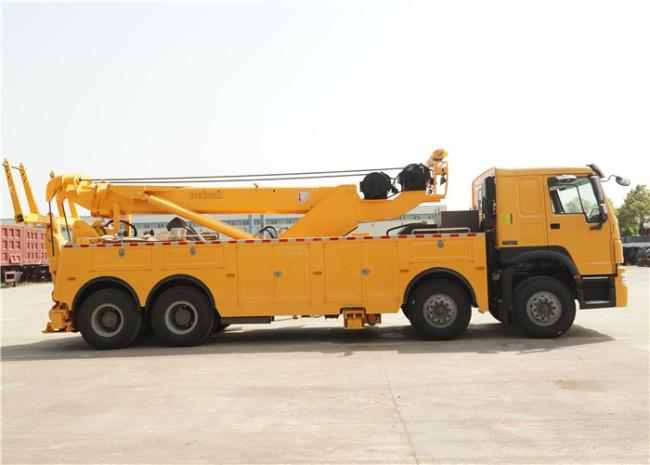

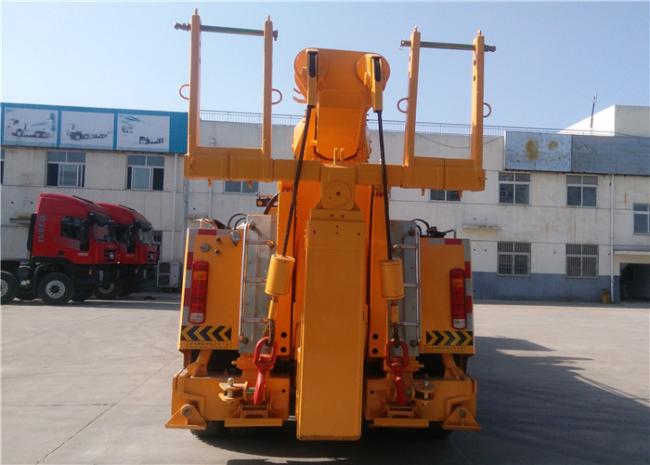

Sinotruk HOWO 8X4 371HP 50T 360 Degree Rotation Recovery Tow Truck
Sinotruk HOWO 8x4 371hp 50tons 50T Road Wrecker Recovery Towing truck 360 Degree Rotation Wrecker Tow Truck
Product Description:
1. Purpose of Recovery Truck: wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of Recovery Truck :howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of Recovery Truck : Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of Recovery Truck:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. Fifth wheel attachment is optional for towing trailers as follows
| CHASSIS | |||||
| Cabin | HW76 standard cabin,Right or left hand drive,with air conditioner,allowed for 2~3 persons | ||||
| No load(kg) | Curb Weight | 13070 | |||
| Front axle | 7000*2 | ||||
| Rear axle | 18000*2 | ||||
| Full load | Max. Overall Weight | 31000 | |||
| Overall Dimensions(mm) | Length | 11430 | |||
| Width | 2500 | ||||
| Height | 3270 | ||||
| Wheel base(mm) | 1800+4600+1350 | ||||
| Track(mm) | 2022/1830 | ||||
| F/R Suspension(mm) | 1500/2200 | ||||
| A/D Angle(°) | 16/18 | ||||
| Driving Model | 8X4 | ||||
| Tyre | 12R22.5 | ||||
| Max. Speed(km/h) | 105 | ||||
| Max. Grade-ability(%) | 30 | ||||
| Min. Turning Diameter(m) | 22.6 | ||||
| Min. Ground clearance(mm) | 310 | ||||
| Engine | Model | WD615.47 | |||
| Horsepower(HP) | 371 | ||||
| Displacement(mL) | 9726 | ||||
| Transmission | HW19710,10 forwards&2 reverses | ||||
| WRECKER EQUIPMENT | |||||
| Max. Towing Weight(kg) | 43000 | ||||
| Lifting System | Max. Lifting Weight(kg) | 25000 | |||
| Max. Lifting Weight under all extension(kg) | 8300 | ||||
| Effective Length of Corbeling Arm(mm) | 3650 | ||||
| Extend-retract of Corbeling Arm(mm) | 1750 | ||||
| Slope Angle of Corbeling Arm(°) | 7 | ||||
| Folding angle under no load(°) | -7~92 | ||||
| Folding angle under load(°) | -7~16 | ||||
| Max. Ground Distance(mm) | ≮900 | ||||
| Landing Strength(KN) | 80*2 | ||||
| Hydraulic Hose | Tianhe,Guangdong Province | ||||
| Hydraulic Joint | Germany technology and exported Sealing rings | ||||
| Hydraulic Lock | Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd. | ||||
| Swivel Joint | Yangzhou Zhongmei Pressure Parts Co.,Ltd. | ||||
| Compartment plate | One-step Modeling by Germany 3P2A 1000T punching machine | ||||
