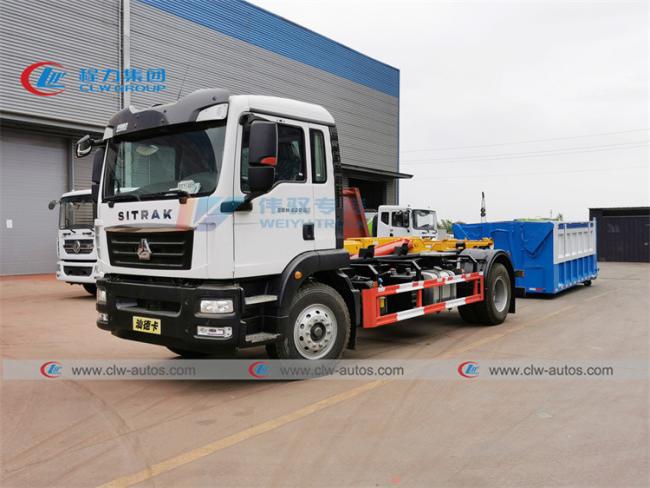

Pull Arm Construction Sinotruk SITRAK LHD trash transport truck

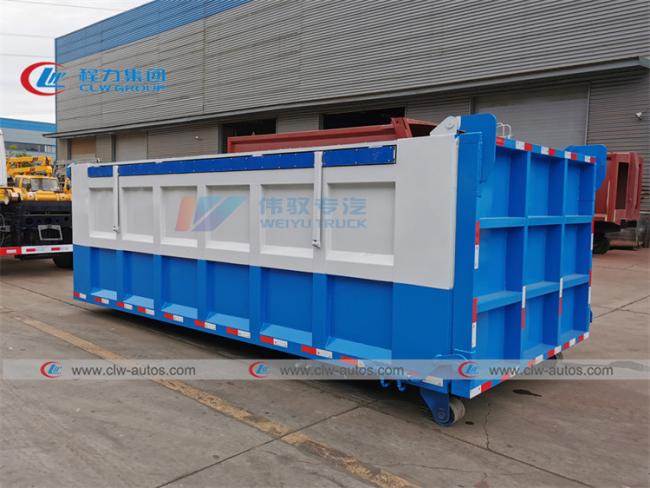

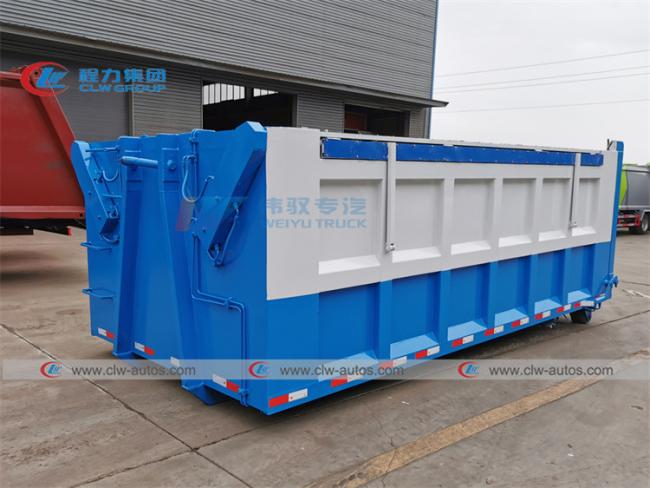

Pull arm construction garbage Trasnport truck for 15 ton Dumping Box with cover
Product Description
- Equipped with 220 HP Or 245 horsepower engine, Vehicle model: HDW5188ZXXZ6,
- G5-M cab, 8-speed gearbox,
- 4.5T front axle, 9T rear axle,
- Double-layer frame (7+4/250),
- Bosch steering gear, SBS (4-channel brake),
- 10.00R20 tires, 200L fuel tank,
- Airbag seat, original air conditioning, cruise control, electric glass,
- Adjustable multifunctional steering wheel, central control door lock + remote control key, etc.

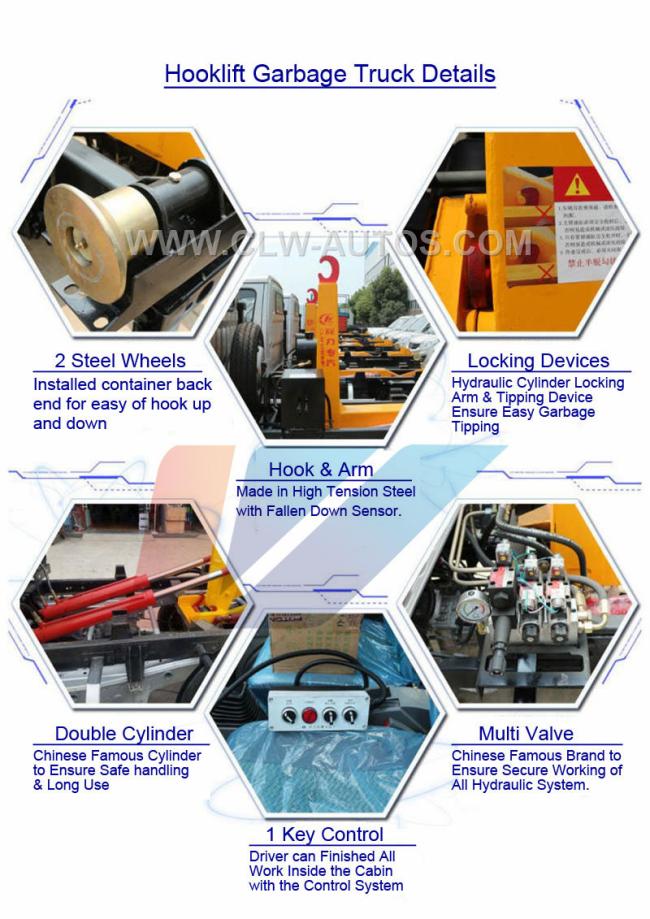

Hook arm upper mounting structure
1. Hydraulic system
2. High-strength alloy steel one-piece main hook arm
3. Reinforced hook
4. Reinforced sub-beam
5. Cast steel tailstock wheel
6. Explosion-proof oil pipe
7. Hydraulic cylinder
8. Locking mechanism
9. Electric control and hydraulic operating device
Others: 5000kg lifting capacity, can be equipped with 5-30 trash bins, fixed-point placement, circular transportation.
Hydraulically complete loading, unloading, locking, self-unloading and other operations.
| Sinotruk 14Ton Construction Garbage Transport Truck | |||
| Brand | CLW Brand | Model No. | HDW5188ZXXZ6 |
| Overall Weight(kg) | 18000 kg | Tare Weight(kg) | 8290 |
| Loading Weight (Kg) | 9,780 | Overall Size (mm) | 7570 x 2500 x 3855 |
| Passenger Allowed (persons) | 2,3 | Approaching/Departure Angle (°) | 16/19,16/21 |
| Axle Loading Weight(kg) | 6500/11500 | Front/Rear overhang (mm) | 1450/1420 |
| Max Speed (km/h) | 110 | Remark | Design for garbage transport |
| Chassis Specification | |||
| Chassis No. | ZZ5186XXYK501GF1 | Chassis Type | Special Chassis |
| Brand | Sinotruk | Wheel Base(mm) | 4500mm |
| Axle Quantity | 2 | Tire Quantity | 6 |
| Tire Size: | 295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR,315/60R22.5 18PR | ||
| Leaf Spring: | 11/9+8 | Front Wheel Track (mm): | 1900 |
| Fuel Type: | Diesel | Rear Wheel Track (mm): | 1850 |
| Engine Model | Manufacturer | Displacement(ml) | Power(Kw) |
| MC05H.20-60 | Sinotruk | 4910 | 147 |
| MC05H.23-60 | Sinotruk | 4910 | 166 |
| MC05H.25-60 | Sinotruk | 4910 | 180 |
| MC07.25-60 | Sinotruk | 6870 | 188 |
| MC07.27-60 | Sinotruk | 6870 | 202 |
| MC07.29-60 | Sinotruk | 6870 | 213 |
| MC07H.29-60 | Sinotruk | 7360 | 213 |
| WP4.6NQ220E61 | Weichai Power | 4580 | 162 |
| WP6H245E61 | Weichai Power | 6220 | 180 |
| WP6H270E61 | Weichai Power | 6220 | 199 |
| WP7.270E61 | Weichai Power | 7470 | 199 |
| WP7.300E61 | Weichai Power | 7470 | 220 |
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipmen
FAQ
Q1: What kinds of container hook lift truck I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied container hook lift truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered container hook lift trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
