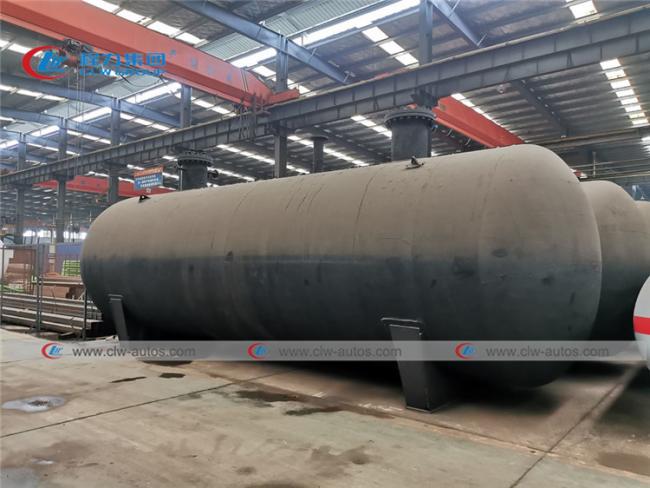

25 Ton Buried Underground LPG Refilling Station With Corken Pump
Buried Underground lpg propane tank 25ton Gas Refilling Station with Corken Pump
Product Description
Description:
* Special Designed for under ground use, corrosion resistant.
* Water Resistant Fabric with Asphalt Coating in 3 Layer
* Red Painting Rust Resistant Design in 2 Layer
* Pressure Vessel Designed Tank Material in 14mm to 16mm.
Advantange of Undergound Tank:
1. Underground Cooling the tank
2. More Safe in construction
3. Less Land Requirement
Specification:
| 50CBM LPG TANK DIMENSIONS | |||
| Volume of Tank | 50 CBM | ||
| Filling Weight | 25,000 kg | ||
| Tank Weight | 10640kg | ||
| Thickness of Shell (mm) | 14 mm | ||
| Thickness of Endplate (mm) | 16 mm | ||
| Tank Diameter (mm) | 2700 mm | ||
| External Dimensions (mm) (length x width x height) | 9182 x 2728 x 3318 mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 500 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Drain Hole | DN50 | 1 | |
| Manhole | DN450 | 1 | |
| Air-out Pipe | DN50 | 1 | |
| Safety Valve Pipe | DN80 | 1 | |
| Safety Accessories(Included in the quotation): Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. |
|||
- LPG PUMP AND MOTOR
- LPG COMPRESSOR
- AIR COMPRESSOR
- VOLUME/MASS FLOW METER
- LPG DISPENSER MACHINE/CYLINDER WEIGHT SCALE
- GAS LEAKAGE DETECTOR
- LEVEL GAUGE(MAGNETIC PLATE TYPE,ROCHESTER,FLOAT BALL..)
- ALL KINDS OF VALVES(globe valves,safety valves,ball valves,non-return valves,strainer,emergency cut-off valves...)
- PIPELINES
- GASKETS
- BOLTS AND NUTS
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
