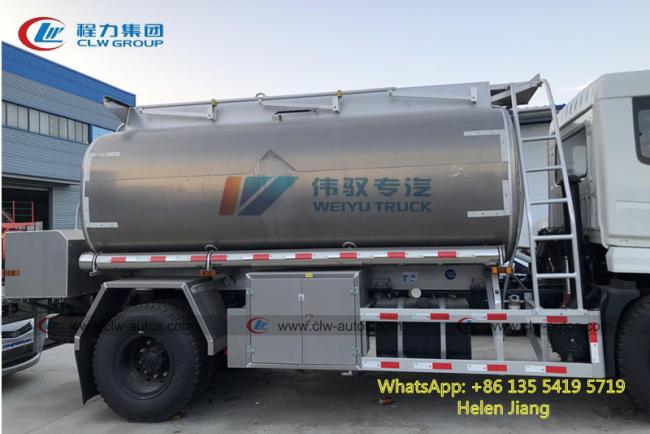

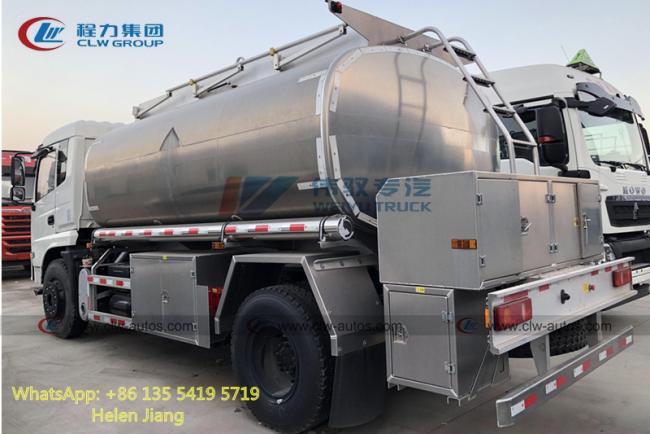

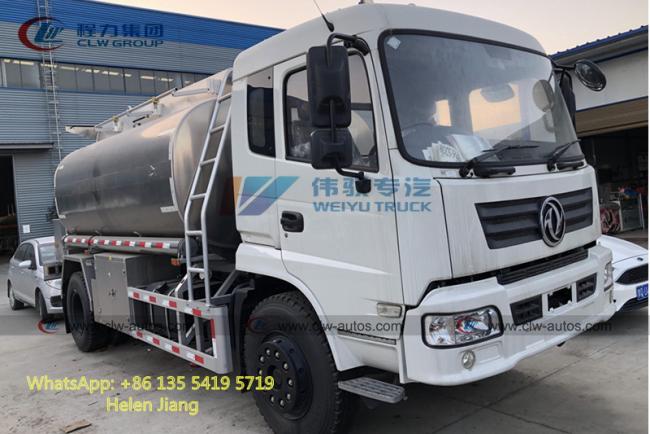

Dongfeng 4x2 RHD 8000 Liters Mobile Fuel Dispensing Trucks
Dongfeng 4x2 RHD 8000liters Diesel Gasoline Dispenser Tank Truck Mobile Oil Fuel Refueling Truck
Product Description
- According to clients' requirements, we can customize different volume and compartment.
- The popular oil tanker truck models include: sinotruk HOWO/SHACMAN 336hp 6X4 10 wheeler fuel tanker truck, 8x4 oil tank truck, SINOTRUK howo/SHACMAN Oil and fuel Tank truck, HOWO /SHACMAN15000L oil Tanker truck , HOWO/SHACMAN 20000L fuel tank, truck fuel tank size can be designed as 2 compartment, 3 compartment, 4 compartment etc and fuel tanker truck dimensions and size is optional.
- According to the different brand, we can provide both SINOTRUK and Shacman and Dongfeng and Beiben to meet customer brand requirement.
- Our oil fuel tank price is really good with high quality ensured.
- Truck fuel tank size,volume and compartment optional
product Specification
| General Technical Parameters | |||
| Overall Dimension | 6950×2200x2800(mm) | ||
| Gross Vehicle Weight | 12495(Kg) | ||
| Curb Weight | 5500(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | Dongfeng | ||
| Drive model | 4*2 | ||
| Cabin | Dongfeng, Single, LHD, with air conditioner | ||
| Number of Passengers | 2 | ||
| Engine | Model | 4-stroke direct injection , 4-cylinder in-line, intercooled supercharging, with ABS. | |
| Power | 115KW/156HP | ||
| Emission standard | EURO 2 | ||
| Fuel type | Diesel | ||
| Gearbox | 5 Forwards & 1 Reverse, manual operation. With power steering. | ||
| Brake System | Oil break | ||
| Wheel Base | 3800mm | ||
| Front/Rear Axle Loading | 3000/5500(Kg) | ||
| Tire | 8.25-16, 6pcs with 1 spare tire | ||
| Max Driving Speed | 90(km/h) | ||
| Upperstructure Specification | ||
| Oil Tank | Effective Volume | 10CBM |
| Transport Oil Type | Diesel | |
| Tank dimension | 4700x2000x1330 | |
| Tank Thickness | 4mm | |
| Tank Material | Q235, carbon steel( also can choose stainless steel,aluminum ) | |

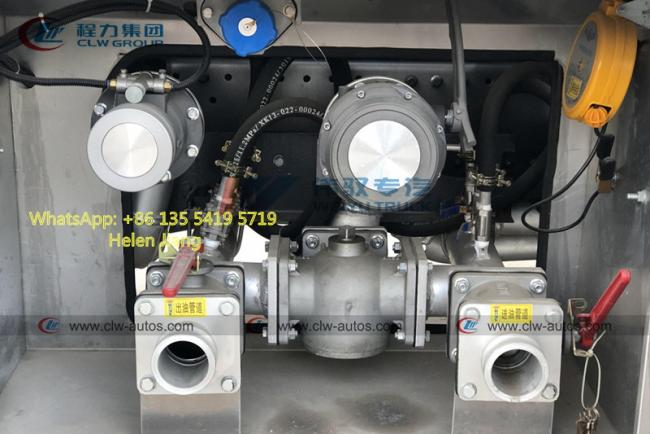

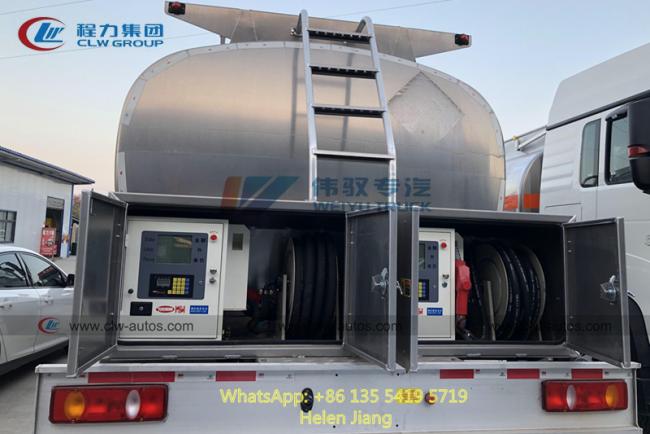

| Refueling System |

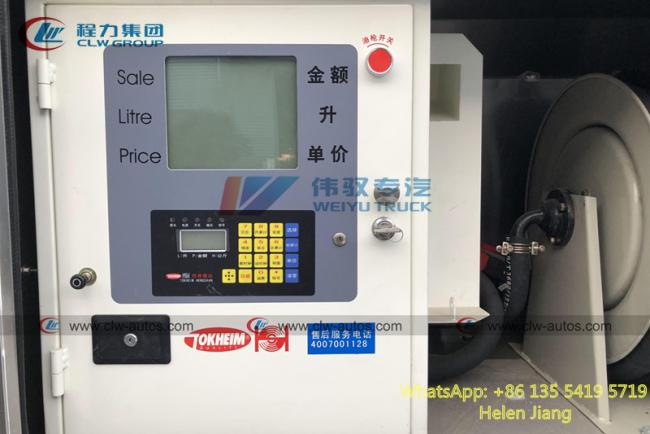

1. Oil pump; 2. Oil dispenser machine; 3. Hose reel with filling gun. |
|

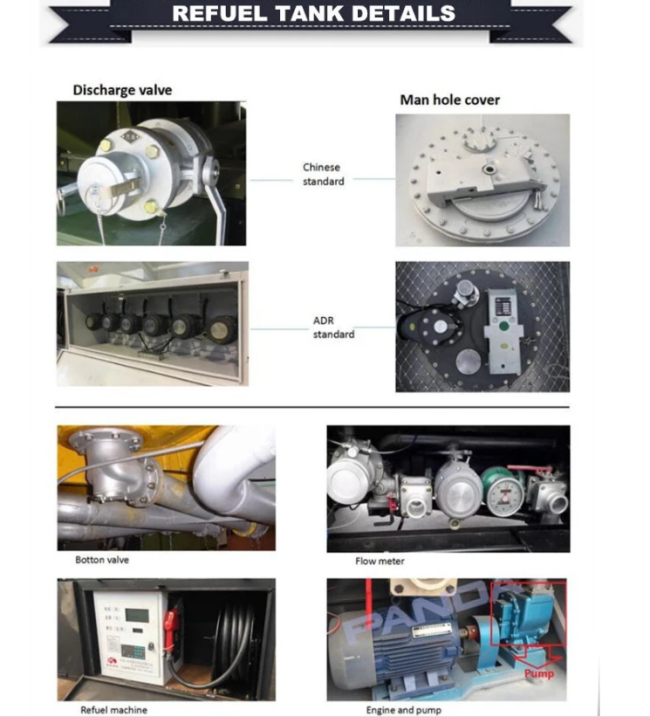

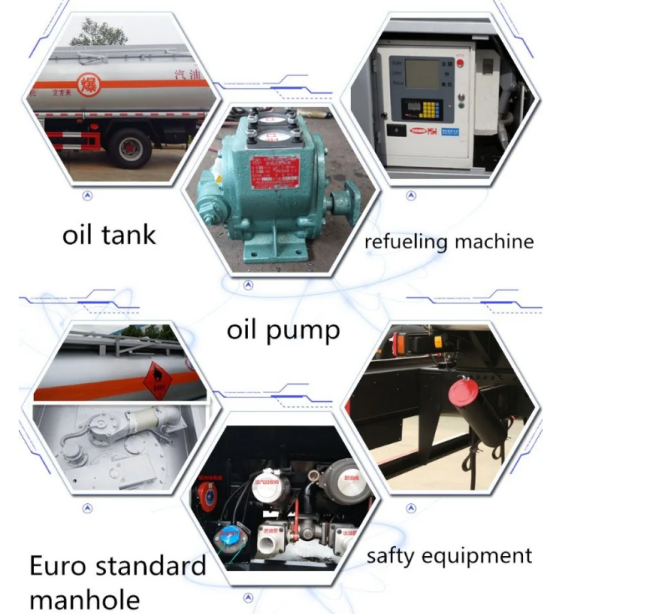

| Equipment |
1. Manhole 1 Unit 2. Ladder handrail 3. Electrostatic Wire Reel 4. Loading, Discharge 5. Emergency cut-off valve 1 Unit |
|
| Options | Compartments, unloading valve, flow meter, API standard manhole, oil vapor recovery, anti-overflow probe. | |
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
