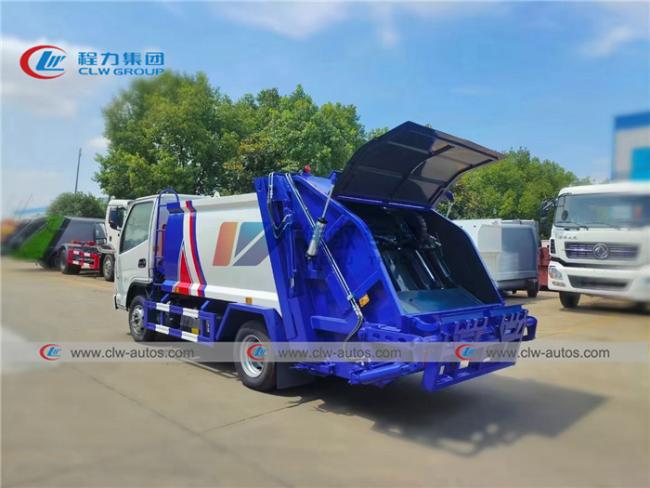

EURO II LHD 5m3 Hydraulic Compression Garbage Truck
5m3 Compression Garbage Trucks Hydraulic Garbage Compactor Truck
- Garbage compactor truck is composed of garbage box, hydraulic system and operating system, which is designed to load and transport more garbage by compression domestic garbage. Dirty liquid was saved in waste sink, perfectly preventing pollution. When arriving at destination, the garbage tank will discharge by one button operation. It is mostly wide used garbage truck all over the world.
Specifications of 5m3 Compression Garbage Truck
| Dongfeng 6CBM Compressed Garbage Truck | |||||
| Overall Dimension | 6220 ×2050×2570 mm | Gross Vehicle Weight |
8275 kg |
||
| Curb Weight | 4350 kg | Loading Weight | 1830 kg | ||
| Wheel Base | 3308 mm | Front / Rear Axle | 1800 kg / 3500kg | ||
| Cabin | Left Hand Driving, 2/3 Passengers Allowed, with Air Conditioner, Radio | ||||
| Engine | Chaochai | ||||
| Engine horsepower | 98HP, EURO II | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 7.00R16 (6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 5CBM | |||
| Material | Q345B, 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 0.6 - 0.7 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Working System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time＜14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
Diagram
Working Show
Our Service
-
Quick feedback to solve your questions
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
