16m FOTON Hydraulic Truck Mounted Aerial Work Platform With Folding Arm Boom
16m FOTON Hydraulic Truck Mounted Aerial Work Platform With Folding Arm Boom
Product Description
- Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
- The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
- Full Computer Control System with Danger Warning System.
- LCD Screen in Both the Bucket and Truck to Display the Working Status.
- Rectangular Shape Arms to Increase the Arm Strength.
- V Shape Leg, H Shape Leg can be adapted to Different Road Condition Increasing the Stability.
Product specification
| Parameter | Overall dimension (Length*width*high) | (mm) | 5995*2050*2900 |
| Total Mass | (kg) | 5730 | |
| Curb Mass | (kg) | 5405 | |
| Max speed | (km/h) | 90 | |
| Fuel type | diesel | ||
| Engine | Engine power | 85kw/115hp | |
| Displacement standard | EURO 3 | ||
| Chassis | Chassis type | FOTON | |
| Drive system | 4x2 | ||
| Tire type | 7.00R16 | ||
| Wheel Base | (mm) | 3360 | |
| Number of tire | 6 | ||
| passengers | 2 | ||
| Cabin | Single, RHD, with 2 passengers allowed, with Air conditioner | ||
| Special parameter | Working platform rating loading | (kg) | 200, 2 persons |
| Platform height | (m) | 14.3 | |
| Max Working Height | (m) | 16 | |
| Boom type | Folding arm | ||
| Max hook loading weight | (kg) | 1000 | |
| Loading of hook | (kg) | 800-1000 | |
| Bucket rotation angle | (°) | 360 | |

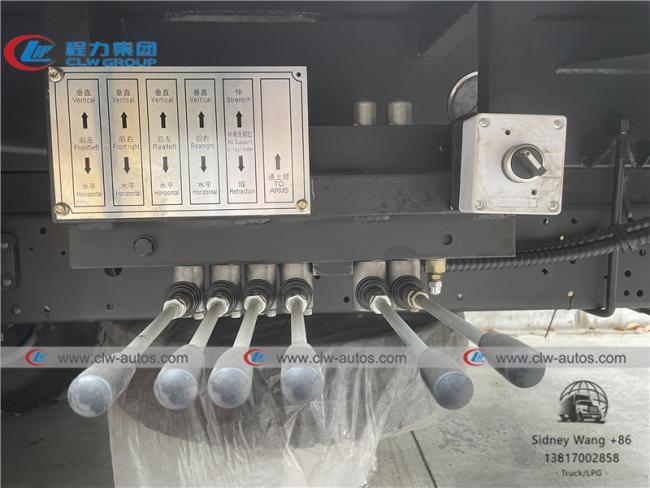

| Control | Control both on the ground and remote control in cage | ||
| Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump | ||
| Leveling System | Hydraulic stablizer to level the vehicle on uneven ground |

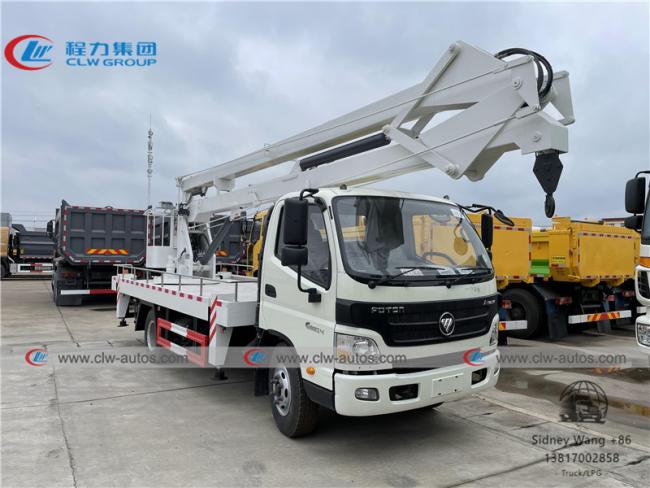

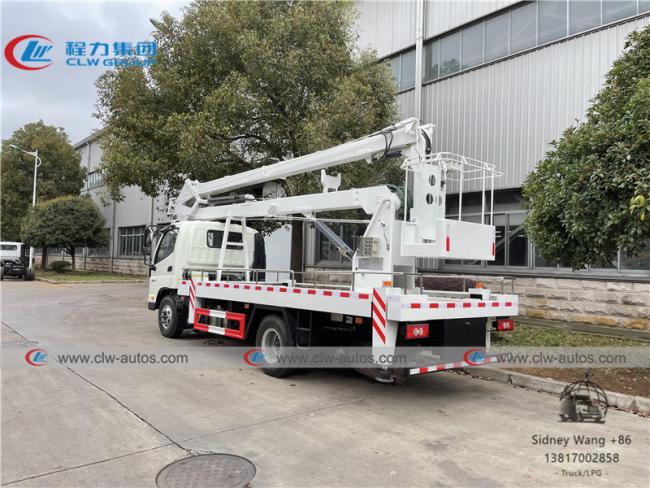

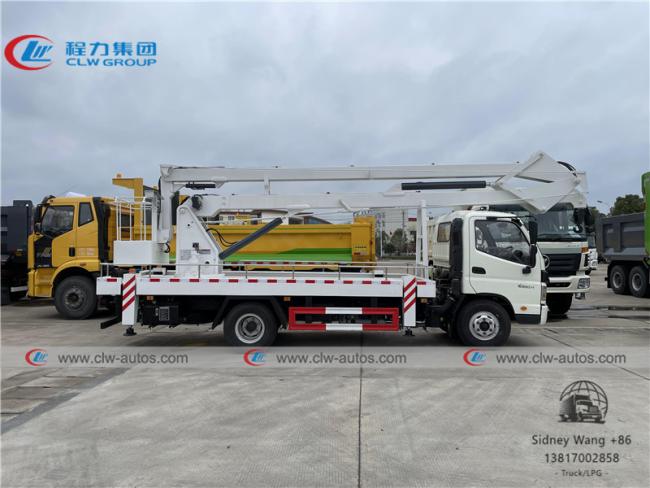

Reference photos
High-Altitude Operation Truck Working Show
Diagram for cherry picker truck

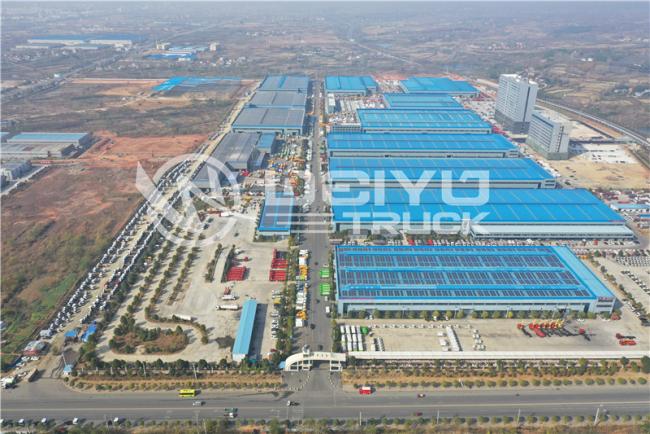

Factory overview
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
