10,000liters/5 Metric Tonnes LPG Cylinder Filling Station In Nigeria Market Sale
Price:
Negotiable
MOQ:
1 set
Delivery Time:
40-45 days after receiving the deposit
Brand:
CLW
Product Description
10,000liters/5 metric tonnes LPG Cylinder filling station In Nigeria Market sale
we are not proud that our skid station is the cheapest, but the safest, most durable and functional.
Product Description
- 2 sets of 5.5 kw lpg pumps and motors(two can work together or work as a spare)
- SONCAP certificate offered, no worry for custom clearance;
- gas leakage detector with English panel
- Fire extinguisher for each station
- ex-proof lamp
- Lockable filling room with rolling off door to protect your filling equipment.
- Safest pipeline system with pipeline safety valves and non-return valves
- Shock proof discharging pipeline at inlet and outlet of pump to protect pump lifetime
-
Strainer valve before pump inlet to avoid impurity into pump and lengthen pump lifetime
Product Specification;
| Specification of 5tons 10000L lpg refilling plant | |
| Volume of Tank | 10CBM |
| Filling weight(Kg) | 3990 |
| Thickness of Shell (mm) | 10 mm |
| Thickness of Endplate (mm) | 10 mm |
| Tank Diameter (mm) | 1600 mm |
| Tank Dimensions (mm) (length x width x height) | 5260X1620X2210mm |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas ( Propane) |
| Design Pressure | 1.71 MPa |
| Corrosion Allowance | 1 mm |
| Medium Density | 500-590 kg/ cbm |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |
| Specification of LPG Pump and Motor | |
| Item | Specification |
| Specification of the Motor | |
| Model | Chinese famous brand |
| Revolving speed | 1470 r/min |
| Power | 5.5 kw |
| Voltage | 380 V |
| Protection grade | Anti explosive |
| Specification of the hydrocarbon Pump | |
| Model | YQB15-5 |
| Medium | Liquid petroleum gas |
| Speed | 15 m3/h |
| Input and Output Diameter | 50 mm |
| Working pressure | 2.0 Mpa |
| Working temperature | -40ºC- 50ºC |
| Material | carbon steel |
Pictures of LPG gas plant with the accessories:

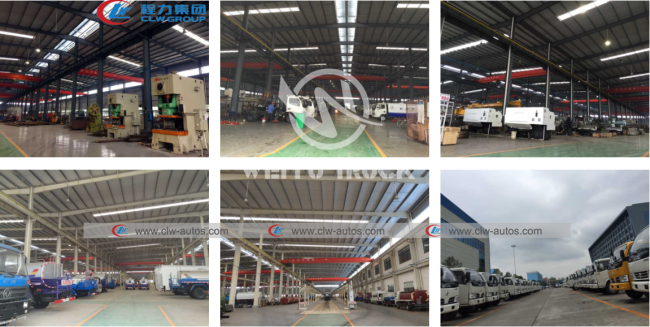

Production Process for LPG storage tank:
