China Brand LPG Bobtail Trucks LPG Refilling Truck 24m3 12mt 1.61Mpa
Price:
negotiable
MOQ:
1 Unit
Delivery Time:
30 days after receiving deposit
Brand:
CLW
Product Description
China Brand 24m3 12mt 1.61Mpa LPG bobtail trucks LPG Refilling Truck
Product Description
- LPG bobtail truck capacity: from 5cbm to 37.2cbm
- tank meaterial:Q345R Q370R Q420R SA516
- tank production flow:cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
- Refiling System of LPG Bobtail Trucks : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
- Truck Spec of LPG Bobtail Trucks : D10.34-40type diesel Engine 339hp,12.00-20 16PR,12.00R20 14PR,315/80R22.5
Specifications
| Description | Sinotruk Howo 6X4 24m3 LPG Dispenser Truck | |
| Drive Model | 6X4 | |
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 10895x2496x3230mm |
| Wheel base (mm) | 5200+1400mm | |
| Overhang (front/rear) (mm) | 1540/2755mm | |
| Front Axle | 7000kg | |
| Rear Axle | 18000kg | |
| Approach/Departure angle(°) | 15/16 | |
| Weight in KGS | Curb Weight | 8780kg |
| GVW. | 25000kg | |
| Payload | 16220kg | |
| Max. driving speed(km/h) | 101km/h | |
| Engine | Type | D10.34-40,4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inner cooling. |
| Horse Power(HP) | 339HP | |
Engine |
9726ml(Diesel) | |
| Emission standard | Euro5 | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Tire | 11.00-20,11.00R20 16PR , 11 pieces including one spare tire | |
| Cabin | 2-3 Passengers allowed, with Air Conditioner | |
| LPG Tank | ||
| Volum (m³) | 24 | |
| Material | Q345R | |
| Thickness | 12mm | |
| Diameter | 1800mm | |
| End plate | 12mm | |
| Tank length | 2050mm | |
| Gas phase | DN50 | |
| Liquid phase | DN50/DN80 | |
| Filling gas | Propane(LPG) | |
| Design Prtessure | 1.61Mpa | |
| Accessory | ||
| LPG Pump | 1 pc | |
| LPG Volume Flow Meter | 1pc | |
| Filling hose with filling nozzle | 15M | |
| Level Gauge | Manhole rotation type, at the rear of tank | |
| Safety Valve | 1, DN50 | |
| Tool and Valve Box | 1 | |
| Thermometer | 1 | |
| Pressure Gauge | 1 | |
| Level Gauge | Manual Rotation Type | |
| Emergency Valve | 1 | |
| Fender | Steel | |
| Fire Extinguisher | 2 | |
| Exhaust shaft | At the front of truck for safety | |
Dispenser way

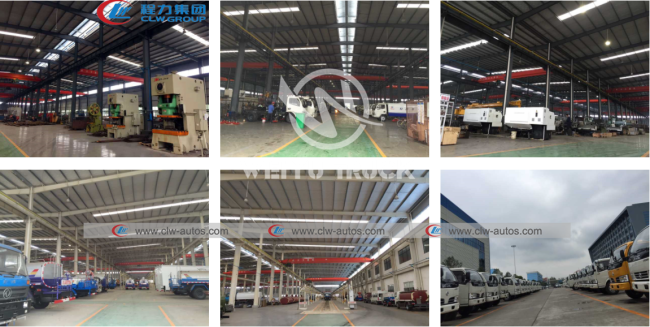

Our Factory
Our advantages
CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
- Certificate: ASME, ISO, BV, SGS, CCC etc.
- more than independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- Trucks Sold to more than 90 countries
Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
