HOWO 4X4 Off Road AWD 15000l Helicopter Aircraft Aviation Refueling Tank Truck For Jet A1 Filling
HOWO 4X4 Off Road AWD 15000liters Helicopter Aircraft Aviation Refueling Tank Truck For Jet A1 Filling
Product Description
Competitive advantage fuel tanker truck series
1. Purpose: It used for helicopter refueling and mobile transporting aviation kerosene.
2. Main parts: Fuel pump, flow meter and filling gun etc.
3. Advantage: Top quality Jets Refueling Truck with competitive price.
Product Specification
| Condition | New condition/Left hand drive | ||
| Drive Type |
4x4, Full Wheel Drive, All Wheel Drive, AWD. Off Road Type For Army, Military Using |
||
| Chassis | Brand | SINOTRUK | |
| Model | HOWO | ||
| Curb weight(kg)(Whole Truck) | 9000 kg | ||
| Loading weight(kg) | 12000 kg | ||
| Wheelbase(mm) | 4600 mm | ||
| Front/Rear axle loading weight(kg) | 7000/16000 kg | ||
| Dimensions(mm)(Whole Truck) | 9175*2480*3290 mm | ||
| Front/Rear overhang(mm) | 1500/2675 mm | ||
| Approach/Departure angle(°) | 20/14° | ||
| Max. driving speed(km/h) | 80 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheel. Auxiliary brake: engine exhaust valve brake |
||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 10pcs with one spare tire | |
| Specifications | 12.00R20/12R22.5 | ||
| Fuel tank volume(L) | 400 L | ||
| Transmission | Manual type, HW19710, 10 Forwards and 2 reverses | ||
| Steering | Power steering, hydraulic steering with power assistance | ||
| Cabin | It can accommodate three people, With Air conditioner | ||
| Engine | Brand | SINOTRUK | |
| Model | WD615.62 | ||
| Fuel type | Diesel | ||
| Displacement(ml) | 9726 ml | ||
| Power(kw) | 196 kw | ||
| Horsepower(HP) | 266 HP | ||
| Cylinder number | 6 pcs | ||
| Rated speed(rpm) | 2500 rpm | ||
| Emission standard | Euro 2 | ||
| Upper & Equipment | |||
| Fuel tank | Capacity(cbm) | 15cbm, 15000Liters, 15M3, 15 Cubic Meters | |
| Tank material | Aluminium alloy | ||
| Compartment quantity(pcs) | 1 pcs | ||
| Filling medium | Aviation kerosene, Jet A1 | ||
| Piping system | Stainless steel | ||
| Manhole | Quantity(pcs) | 2 pcs | |
| Size(mm) | 500 mm | ||
| Filter | International brand filter | ||
| Remarks | Pls directly contact with us for more technical parameters | ||

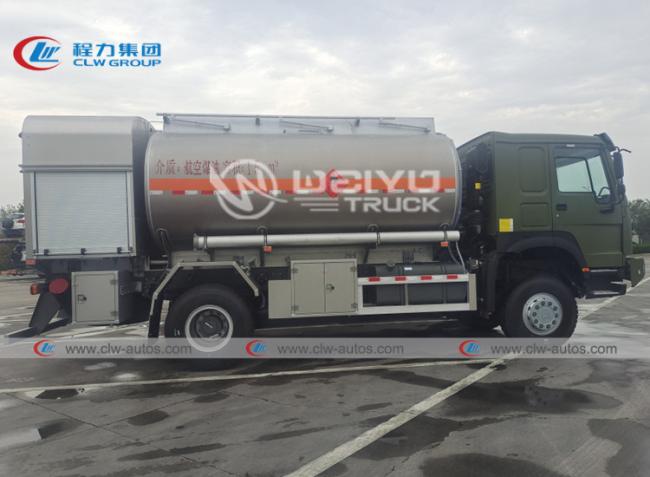

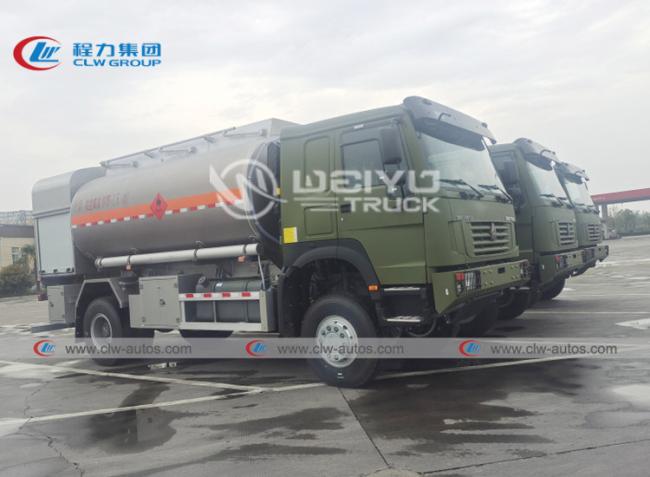

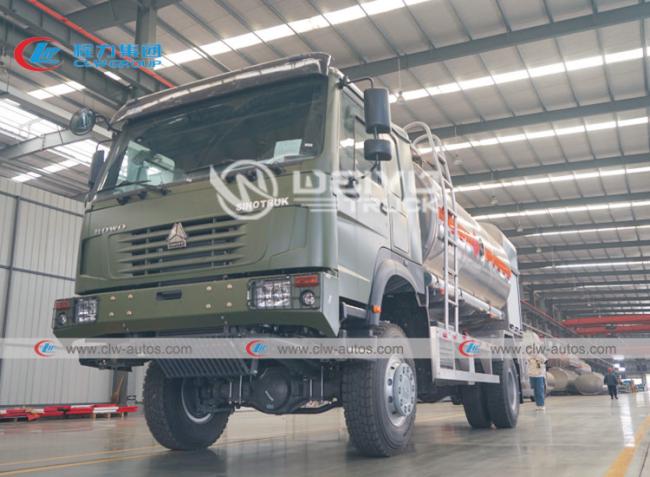

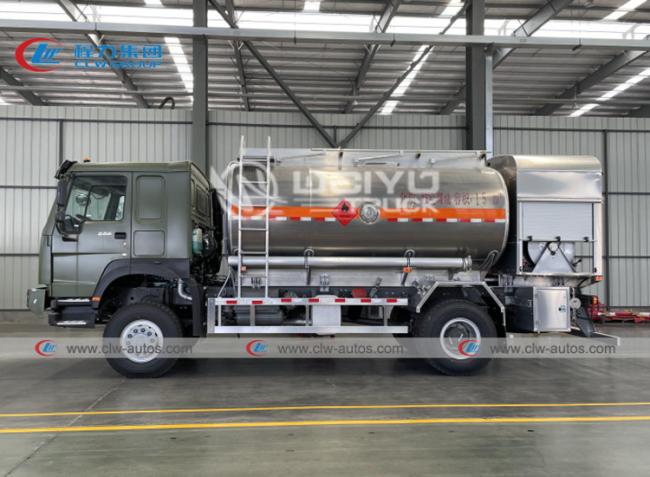

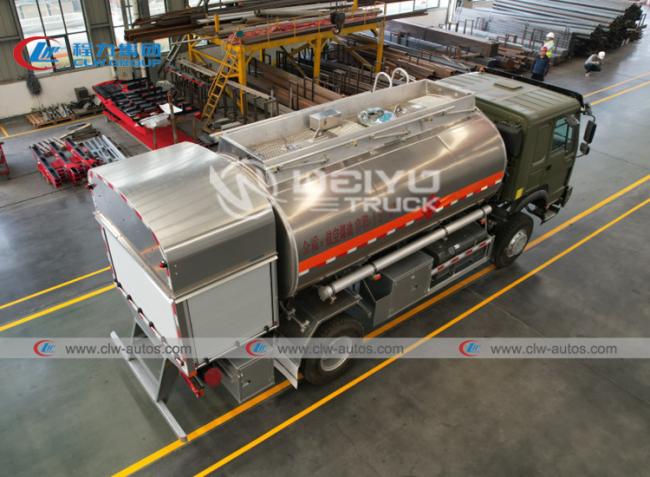

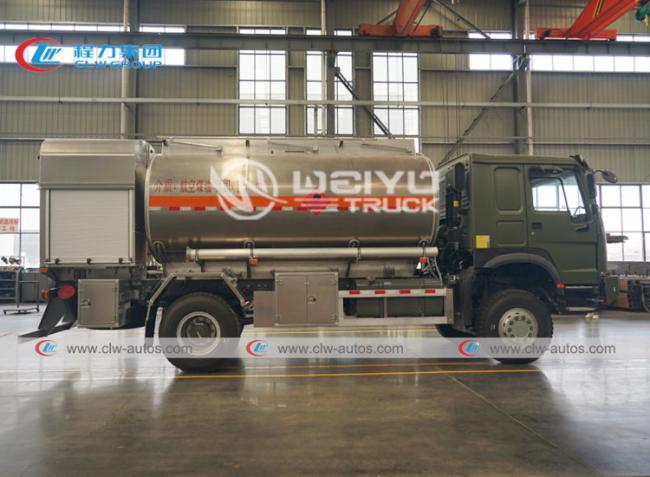

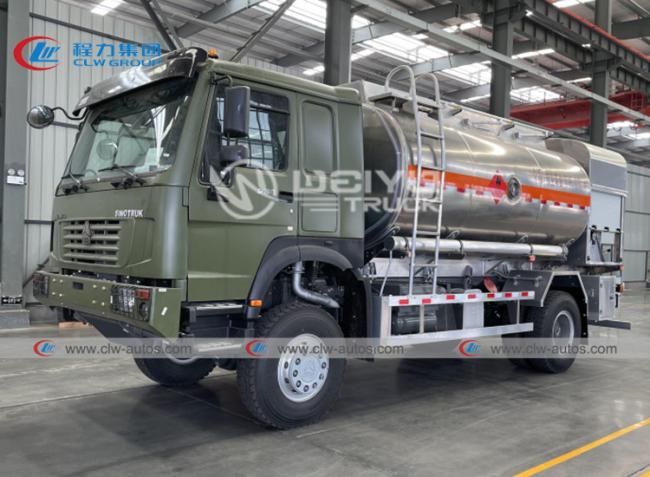

More pictures for HOWO 4X4 Off Road AWD 15000liters Helicopter Aircraft Aviation Refueling Tank Truck for
Jet A1/Aviation kerosene filling.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation
and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products
arriving at destination safely.
