4X4 All Wheel Drive 10cbm 10000liters Refuelling Oil Tank Truck Aircraft Aiviation
Price:
Negotiated
MOQ:
1 unit
Delivery Time:
30-35 days after receiving the deposit
Brand:
CLW
Product Description
4X4 All-Wheel Drive 10cbm 10000liters Fuel Tanker Refuelling Oil Tank Truck Aircraft Aiviation Fuel Tank Truck
Product description:
- Howo 4X4 off load left hand driving
- WEICHAI diesel engine with 266hp
- Front/rear axle loading: HF7/ ST16
- 10-Forward & 2-Reverse gear box single H manual operation type
- Q235B carbon steel; Ellipse tank shape
- 10cbm tank volume with 5mm thickness
Product advantages:
- 4X4 four-wheel drive fuel truck adopts world-class automotive technology, novel design and unique style
- The cab is comfortable to ride, has a wide field of vision, is well sealed and has complete functions;
- The best engine power matching, high passability, high reliability chassis, flexible maneuverability,
- It is used for cargo transportation in roadless areas, suitable for a variety of complex road conditions,like deserts, floating soil, Gobi, gravel, mud, mountains, rugged, ice and snow.
- Temperature resistance ±45℃
- The use of special tires for desert off-road makes the vehicle even more powerful and invincible. (Optional by model)
| Product specification | ||||
| Model | Refueling tank truck | Tank volume | 10,000L /10m3 | |
| Overall Dimension(LxWxH) | 8200*2450*3200mm | Driving type | 4x4 off road | |
| Chassis parameters | ||||
| Chassis | HOWO | |||
| Cabin | One and a half row, allowable for 3 passengers, with a bed, and Air conditioner | |||
| Engine | Model | WD615.62 | ||
| Rated power | 266hp | |||
| Displacement | 9.726L | |||
| Type | 6 cylinders in-line, 4-strokes, turbo-charged intercooling, direct injection | |||
| Emission | Euro 2, Diesel | |||
| Manufacturer | SINOTRUK | |||
| Tire | Size | 295/80R22.5, tubeless tire | ||
| Number | 6 tires plus one spare | |||
| Front / Rear axle | HF7/ ST16 | Transmissions | HW15710, 10-Forward & 2-Reverse | |
| Fuel tank | 400L, steel | Wheel Base | 4300mm | |
| Tanker parameters | ||||
| Tank dimensions | 3800*1570*1100mm | Tank volume | 10,000L | |
| Shape of the tanker | Ellipse | Tank thickness | 5mm body/ end plate 6mm | |
| Material of tanker | Q235B carbon steel, epoxy paint 3 layer inner surface for anti-corrosion | |||
| Transport medium | Diesel oil | |||
| Manhole | GLME, Euro standard, including pressure relief valve | |||
| Bottom Valve | GLME, Euro standard | |||
| Discharge Valve | Aluminium Alloy Ball Valve type (stainless steel ball valve is optional) | |||
| Emergency Cutoff Device | Equipped | |||
| Oil Pump | Weilong or Yifeng (Chinese famous brand ) | |||
| Flow Meter | High-end flow meter | |||
| Filling Gun | Rotary filling gun | |||
| Standard configuration | tool box,climbing ladder, handrail, fire extinguisher, oil hose etc are included | |||
| Optional Configuration | pneumatic valve, AIP valve, overflow sensor system, vapour recovery system | |||
| Color & Logo | Customized | |||

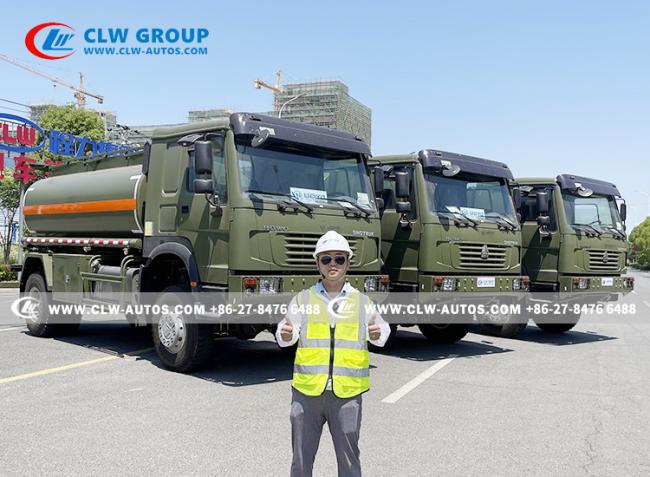

1.Trucks photos in Factory

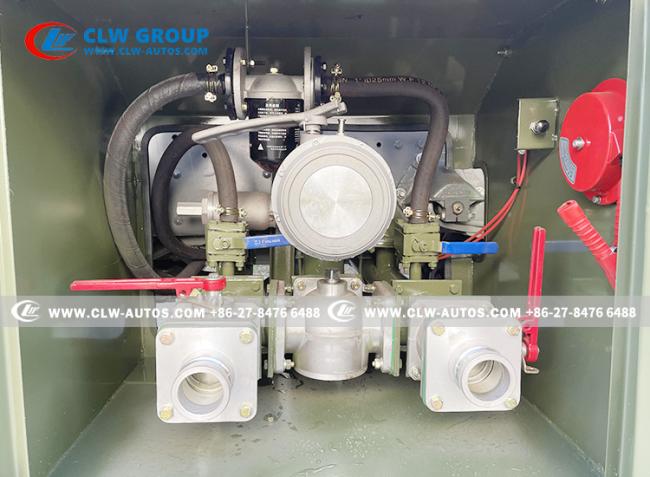

2.Toolbox filling room

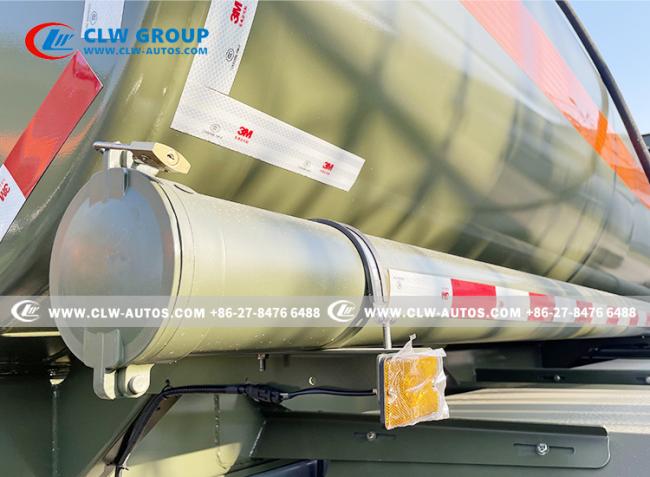

3. Unloading pipes on both sides of the tank
Our advantages:
- Certificate: ASME, ISO, BV, SGS, CCC etc.
- More than 30 independents workshops for different types of trucks
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians and about 8000 staffs
- 800kinds of trucks and semi-trailers with various functions
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- More than 100,000 trucks and semi-trailers annually.
- Truck Sold to 90 countries
- Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK,FOTON,FAW,BEIBEN,ETC
