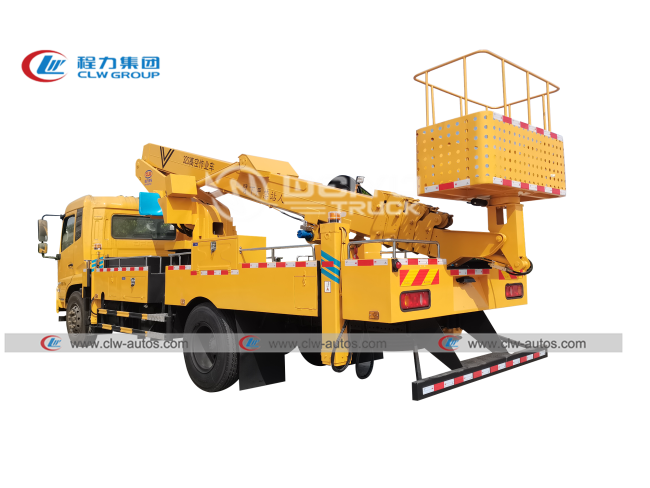

Dongfeng 32M Telescopic Boom Bucket Hydraulic Platform Truck
Dongfeng 32M Telescopic Boom Bucket Hydraulic Lifting Platform Truck Aerial Boom Lift Bucket Cherry Picker Truck
Application range:
1. maintenance of traffic lights, street lights,
2. landscaping trees
3. cleaning/setting signboard,
5. cherry picking and other high aerial works.
Product Descriptions:
1. Dongfeng chassis with 190HP diesel engine
2. Working height is up to 32 meters
3. Bucket dimension is 1080X610X1100mm
4. Working platform can 360 degree rotation.
5. Double H outriggers can adapt different road condition and increasing the stability.
Product advantages:
1. Double H outriggers with good stability which can adapt to various working conditions.
2. It is equipped with hydraulic and electrical components: proportional valve, balance valve, controller which are all imported.
3. The outrigger operation box is equipped with lights, which is convenient for working at night,
4. It install to spirit level to ensure the truck's safety.
5. The working platform adopts 360 degree rotation,
6. The hanging basket is made of high-strength aluminum alloy, which is flexible during working.
7. It use computer control,and equip with dangerous work alarm in order to excellent safety performance.
8. Its expansion and contraction at the same time that can improve working efficiency and working range.
Product parameters:
| Parameter | Overall dimension (Length*width*high) | (mm) | 8790*2500x28400 |
| Total Mass | (kg) | 16000 | |
| Kerb Mass | (kg) | 5000 | |
| Wheel base | (mm) | 5000 | |
| Approach/rear angle | (°) | 20/12 | |
| Max speed | (km/h) | 90 | |
| Fuel type | diesel | ||
| Engine | Displacement standard | EURO 3 | |
| Chassis | Chassis type | Dongfeng | |
| Drive system | 4x2 | ||
| Tire type | 10.00R20 | ||
| Number of tire | 6 | ||
| passengers | 3 | ||
| Cabin | one and half row cabin | ||
| Special parameter | Working platform rating loading | (kg) | 200 |
| Max operation height | (m) | 32 | |
| Max working radius | (m) | 14.8 | |
| Rotation speed | (r/min) | 0.15~0.20m/s | |
| Max hoisting height | (m) | 8 | |
| Rated hoisting capacity | (kg) | 1000-2000 | |
| Max rotation angle | (°) | 360 |
Reference photos
Aerial working platform Truck Working Show
Our advantages:
- Certificate: ASM, ISO, BV, SGS, CCC etc.
- More than 30 independents workshops for different types of trucks
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians and about 8000 staffs
- 800kinds of trucks and semi-trailers with various functions
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- More than 100,000 trucks and semi-trailers annually.
- Truck Sold to 90 countries
- Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK, FOTON,FAW,BEIBEN,ETC
- We can handle production of bulk order water trucks of tender and government purchase in required time
