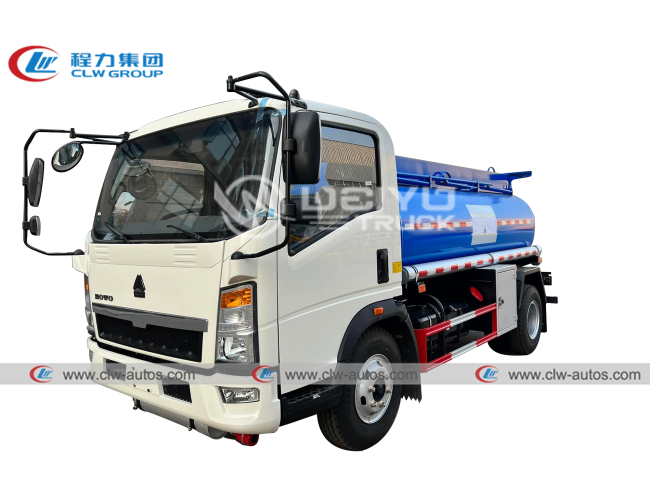

5cbm 5000L HOWO Fuel Tanker Truck Mobile Diesel Tanker With Flowmeter
5cbm 5000liter 5000L HOWO Fuel Tanker Truck Fuel Dispensing Truck Mobile Diesel Tanker Transportation Trcuk With Flowmet
Product description:
1. Howo 4X2 left hand driving
2. YUNNEI diesel engine with 116hp
3. Axle loading: front axle 2t rear axle 3.5t
4. 5-Forward & 1-Reverse WLY gear box
5. Q235B carbon steel; Ellipse tank shape
6. 5cbm tank volume with 4mm thickness
Application range:
1. city, suburb, mining plants, wharf, airport, bus station, country road,
2. many other places which is without filling station,which can be used as mobile filling station.

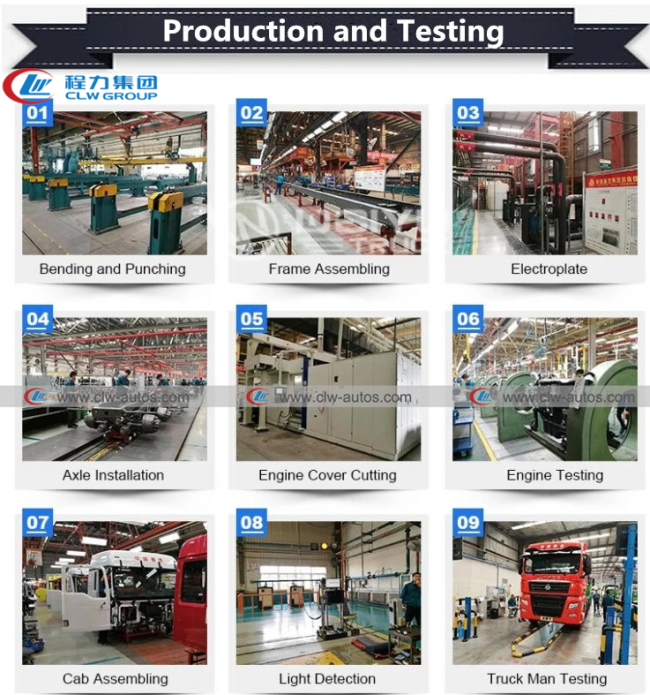

Producing process:
Bending and punching--Frame assembling--Electroplate--Axle installation--Engine cover cutting--Engine testing-- Cab assembling--Light detection--Truck man testing
Product Specification
| TECHNICAL SPECIFICATION | ||||
| Model | SINOTRUK | Tank volume | 5000L /5m3 | |
| Overall Dimension(mm): | 5990*2000*2380 | Driving type | 4x2 Left hand driving | |
| Chassis parameters | ||||
| Chassis | HOWO | |||
| Cabin | Single row cabin, allowable for 2 passengers with air conditioner | |||
| Engine | Model | YN4100QBZL | ||
| Rated power | 116hp | |||
| Displacement | 3.298L | |||
| Type | 4 cylinders in-line, 4-strokes, turbo-charged intercooling, direct injection | |||
| Emission | Euro 3, Diesel | |||
| Manufacturer | SINOTRUK | |||
| Tire | Size | 7.00R16, steel wire tire | ||
| Number | 6 tire with one spare | |||
| Front / Rear axle | 2000/3500 | Transmissions | WLY535,5-Forward & 1-Reverse | |
| Fuel tank | 400L, steel | Wheel Base | 3360mm | |
| Tanker parameters | ||||
| Tank dimensions | 3400*1600*1100mm | Tank volume | 5,000L | |
| Shape of the tanker | Ellipse | Tank thickness | 4mm body/ end plate 4mm | |
| Material of tanker | Q235B carbon steel, epoxy paint 3 layer inner surface for anti-corrosion | |||
| Transport medium | Diesel oil, gasoline or others | |||
| Manhole | GLME, Euro standard, including pressure relief valve | |||
| Bottom Valve | GLME, Euro standard | |||
| Discharge Valve | Aluminium Alloy Ball Valve type (stainless steel ball valve is optional) | |||
| Emergency Cutoff Device | Equipped | |||
| Oil Pump | Weilong or Yifeng (Chinese famous brand ) | |||

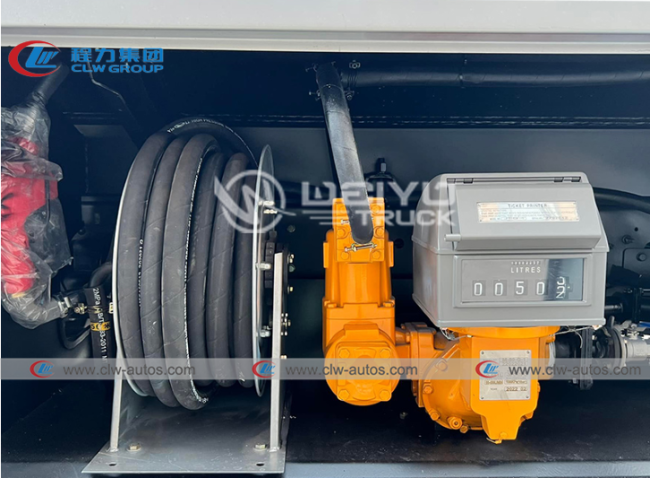

| Flow Meter | High-end flow meter | |||
| Filling Gun | Rotary filling gun | |||
| Standard configuration | tool box,climbing ladder, handrail, fire extinguisher, oil hose etc are included | |||
| Optional Configuration | pneumatic valve, AIP valve, overflow sensor system, vapour recovery system | |||
| Color & Logo | Customized | |||
Detailed photos:
fuel tanker truck;fuel boswer truck; oil transport truck; oil truck tanker; light fuel tank truck; truck tank fuel; petrol tanker; petrol fuel tank; diesel dispensing truck; oil delivery truck; Mobile Fuel Truck; oil loading truck; oil refuelling truck; oil transport truck; oil truck tanker; light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, fuel bowser, diesel dispensing truck,) is mainly used o storage and transport oil; diesel, gasoline, kerosene, Stainless steel fuel bowser etc.
