HOWO 6 Wheels 5Cbm 5000 Liters Fuel Truck Mobile Oil Tanker Off Road Aircraft Transport
HOWO 6 Wheels 5 Cbm 5000 Liters Fuel Truck Mobile Oil Tanker Off-Road Aircraft Transportation Truck
Product Description
1. Purpose: It used for helicopter refueling and mobile transporting aviation kerosene.
2. Main parts: Fuel pump, flow meter and filling gun etc.
3. Advantage: Our helicopter refueling truck have most competitive price.
Truck Chassis Main Specification
(1) Sinotruk HOWO Flat Cabin, With one or Without Sleeper Bed. Air conditioner.
(2) 266 HP diesel engine, EUROII
(3) Steering Wheel: optional choose for RHD/LHD
(4) Drive Model: 4x4 Full Wheel Drive.
(5) Transmission/Gearbox type: Manual control
(6) Front Axle:3 ton
Rear Axle: 5Ton
(7) Fuel Tanker: 400L
Fratures:
European standard tank mouth: integrated with built-in breathing emergency energy discharge
Aluminum alloy folding guardrail, sturdy and beautiful, easy to use
High-quality integrated automatic welding tank
Well-known tanker brand, quality assurance
| Condition | New condition/Left hand drive | ||
| Drive Type |
4x2, Full Wheel Drive, All Wheel Drive, AWD. Off Road Type For Army, Military Using |
||
| Chassis | Brand | SINOTRUK | |
| Model | HOWO | ||
| Curb weight(kg)(Whole Truck) | 4700 kg | ||
| Loading weight(kg) | 3700 kg | ||
| Wheelbase(mm) | 3800 mm | ||
| Front/Rear axle loading weight(kg) | 6000/10,000 kg | ||
| Dimensions(mm)(Whole Truck) | 6500×2600×2400 mm | ||
| Front/Rear overhang(mm) | 1500/2675 mm | ||
| Approach/Departure angle(°) | 20/14° | ||
| Max. driving speed(km/h) | 80 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheel. Auxiliary brake: engine exhaust valve brake |
||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6pcs with one spare tire | |
| Specifications | 12.00R20 | ||
| Fuel tank volume(L) | 400 L | ||
| Transmission | Manual type, HW19710, 10 Forwards and 2 reverses | ||
| Steering | Power steering, hydraulic steering with power assistance | ||
| Cabin | It can accommodate three people, With Air conditioner | ||
| Engine | Brand | SINOTRUK | |
| Model | WD615.62 | ||
| Fuel type | Diesel | ||
| Displacement(ml) | 9726 ml | ||
| Power(kw) | 88 kw | ||
| Horsepower(HP) | 266 | ||
| Cylinder number | 6 pcs | ||
| Rated speed(rpm) | 2500 rpm | ||
| Emission standard | Euro 2 | ||
| Upper & Equipment | |||
| Fuel tank | Capacity(cbm) | 5cbm, 5000Liters, 5M3, 5 Cubic Meters | |
| Tank material | Aluminium alloy | ||
| Compartment quantity(pcs) | 1 pcs | ||
| Filling medium | Aviation kerosene, Jet A1 | ||
| Piping system | Stainless steel | ||
| Manhole | Quantity(pcs) | 2 pcs | |
| Size(mm) | 500 mm | ||
| Filter | International brand filter | ||
| Remarks | Pls directly contact with us for more technical parameters | ||

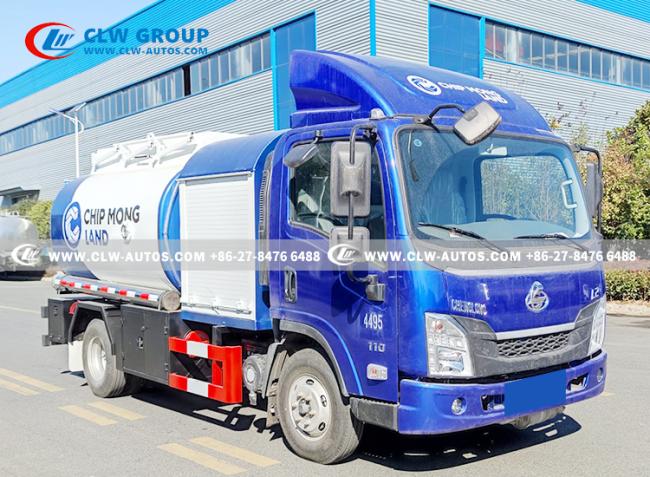

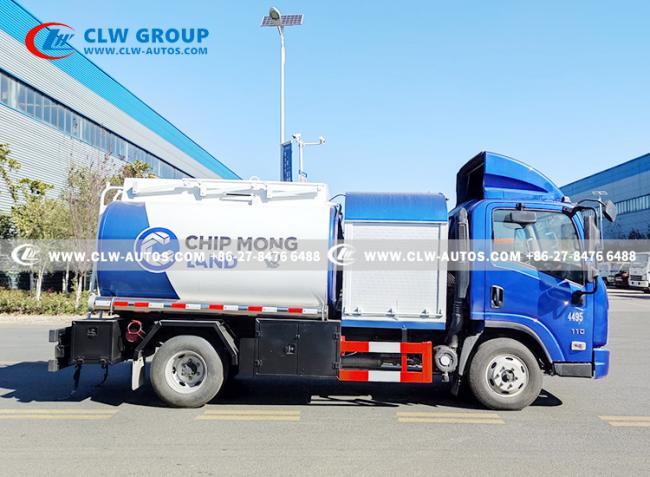

1. Single row cab with ellipse tank
side strap toolbox
Aluminum alloy guardrail, sturdy and easy for using

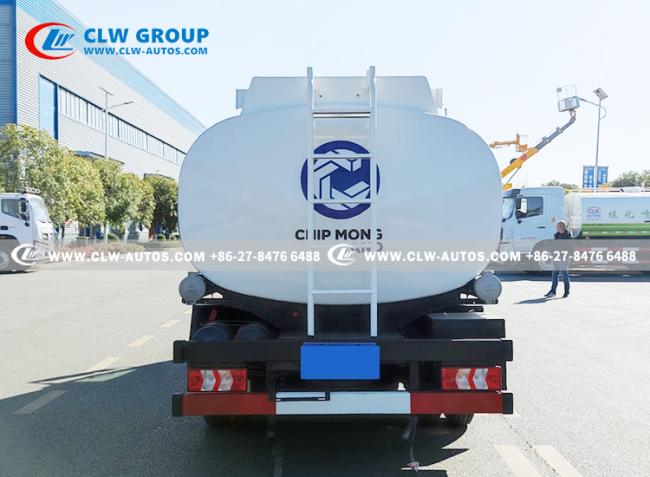

3.With ladder at the back of the fuel tank
rear profile indicator light
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation
and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products
arriving at destination safely.
