Off Road 4X4 All Wheel Driving Stainless Steel Fuel Oil Truck 5000liters 5tonnes
5000liters 5tonnes Off-Road 4X4 All Wheel Driving Stainless Steel Fuel Bowser Machine Fuel Oil Transportation Truck Dies
Product advantages:
1. Tank materials: Optional for carbon steel, stainless steel, rotational lining plastic, and FRP;
2. Tank shape: Optional for round square, oval, and round;
3. Functions: The tank can be made to be made to be separated chambers to load different oil or chemical varieties .and can be designed as as pump-in and pump-out through measurement;
4. Oil pump:Optional single counting, double counting, and tax control tanker;
5. Pump: According to the use of tankers, can choose centrifugal pumps, gear pump, copper gear pump, stainless steel pump, it has big flow,fast speed of suction and some other characteristics.
6. It can be divided into many compartments to transport different medium, which will make your transportation easy and safe.
Product main details:
1.Howo 4X4 Off-Road left hand driving
2. Cummins diesel engine with 141hp
3. WLY651,6-Forward & 1-Reverse gear box
4. Front axle 2.2T with Rear axle 4.2T
5. Euro standard manhole and bottom valve
6. It is optional for Chinese famous brand or other brand.
Product Specifications
| TECHNICAL SPECIFICATION | ||||
| Model | SINOTRUK | Tank volume | 5000L /5m3 | |
| Overall Dimension(mm): | 5990X2000X2380mm | Driving type | 4x4 Off-Road Left hand driving | |
| Chassis parameters | ||||
| Chassis | HOWO | |||
| Cabin | Single row cabin, allowable for 2 passengers with air conditioner | |||
| Engine | Model | ISF3.8S3141 | ||
| Rated power | 141hp | |||
| Displacement | 3.76L | |||
| Type | 4 cylinders in-line, 4-strokes, turbo-charged intercooling, direct injection | |||
| Emission | Euro 3, Diesel | |||
| Manufacturer | SINOTRUK | |||
| Tire | Size | 215/75R17.5, steel wire tire | ||
| Number | 6 tire with one spare | |||
| Front / Rear axle | 2200/4200 | Transmissions | WLY651,6-Forward & 1-Reverse | |
| Fuel tank | 400L, steel | Wheel Base | 3360mm | |
| Tanker parameters | ||||
| Tank dimensions | 3400*1600*1100mm | Tank volume | 5,000L | |
| Shape of the tanker | Ellipse | Tank thickness | 4mm body/ end plate 4mm | |
| Material of tanker | Q235B carbon steel, epoxy paint 3 layer inner surface for anti-corrosion | |||
| Transport medium | Diesel oil, gasoline or others | |||
| Manhole | GLME, Euro standard, including pressure relief valve | |||
| Bottom Valve | GLME, Euro standard | |||
| Discharge Valve | Aluminium Alloy Ball Valve type (stainless steel ball valve is optional) | |||
| Emergency Cutoff Device | Equipped | |||
| Oil Pump | Weilong or Yifeng (Chinese famous brand ) | |||
| Flow Meter | High-end flow meter | |||
| Filling Gun | Rotary filling gun | |||
| Standard configuration | tool box,climbing ladder, handrail, fire extinguisher, oil hose etc are included | |||
| Optional Configuration | pneumatic valve, AIP valve, overflow sensor system, vapour recovery system | |||
| Color & Logo | Customized | |||

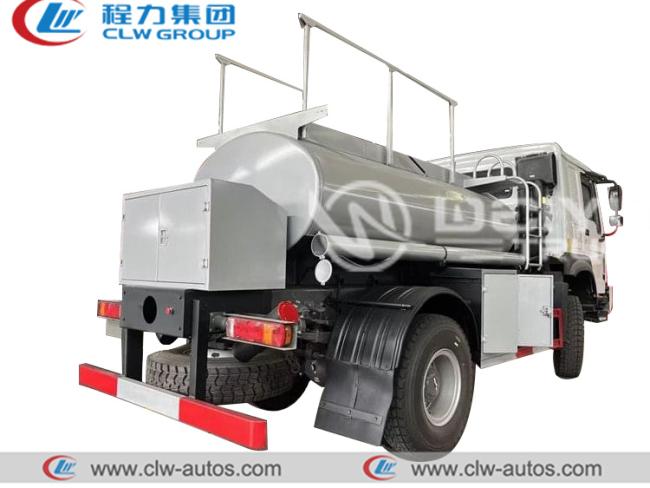

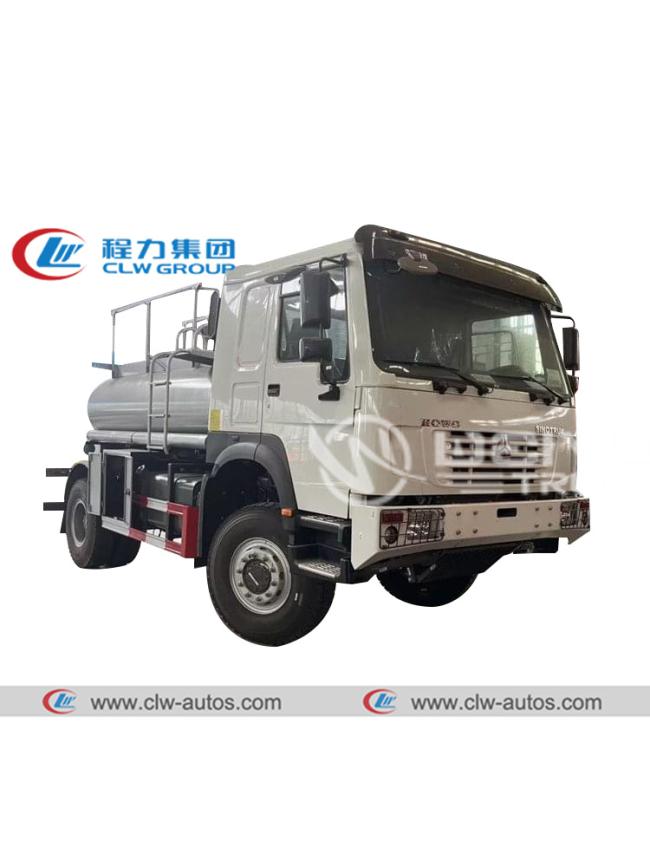

Truck appearance

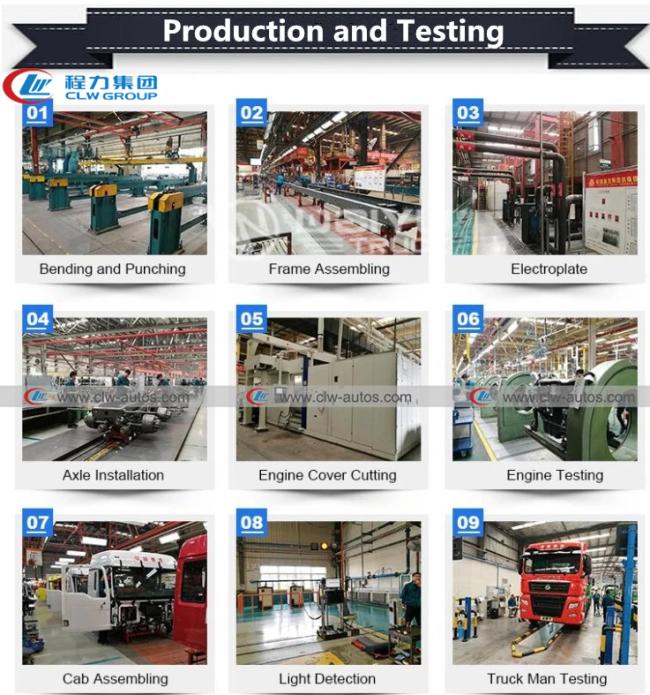

Product process

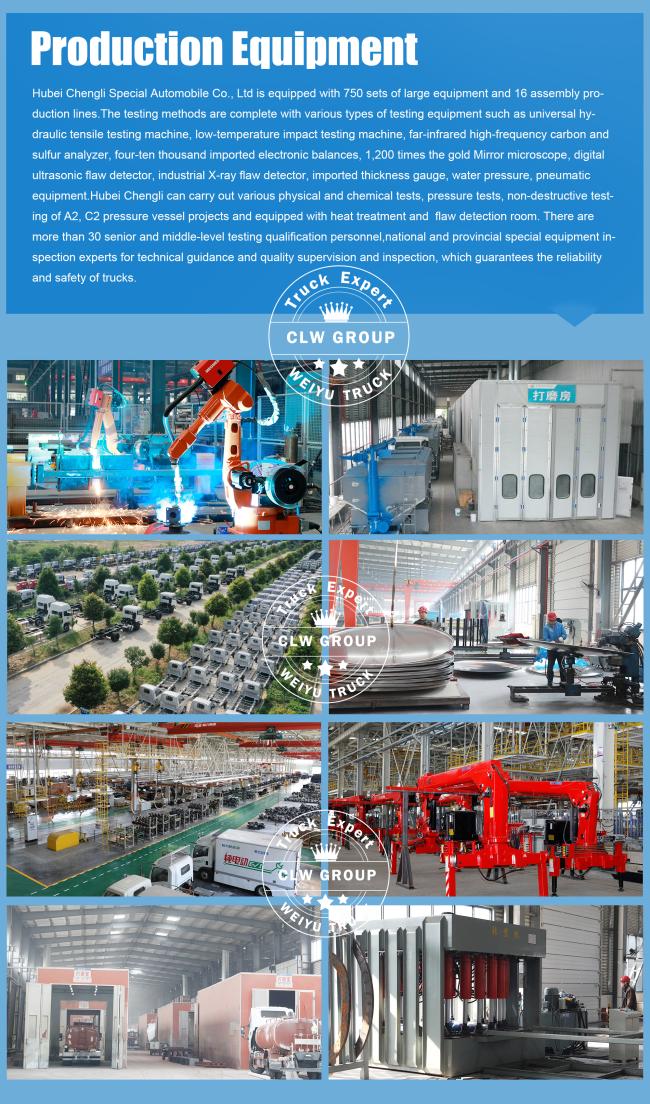

Factory overview
Key words: Fuel truck , fuel bowser, fuel tank truck, fuel tanker, oil tanker, oil tank truck, petrol tank, petrol fuel tank, tanker truck, refueler truck , petroleum tanker, fuel dispenser truck, fuel dispensing truck, mobile dispenser truck, crude oil truck, crude oil tanker truck, fuel transport truck, diesel truck, mobile diesel tanker truck.
