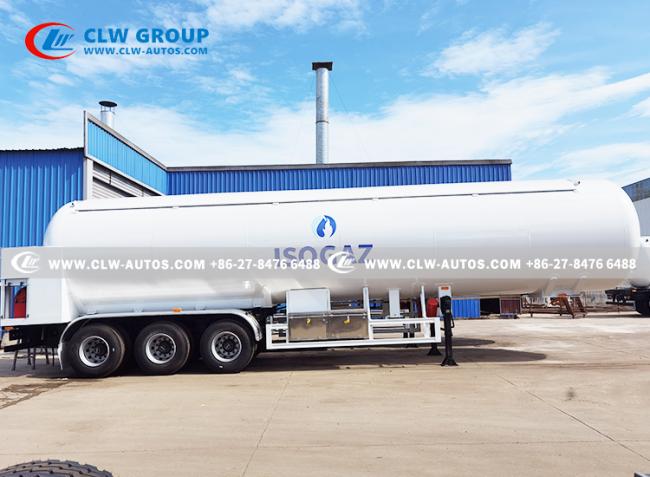

30tons Butane Propane Gas Tanker Trailer With Pump And Flow Meter
30tons Butane Propane Gas Tanker Trailer With Pump And Flow Meter
Product Description:
1. 12990*2500*3990 overall dimensions
2. 25tonns tank volume with Q345 carbon steel tank material
3. 1.61 design pressure and 2.22 Hydraulic Test pressure
4. Jost outrigger, 3*13T BPW axles
5. lpg accessories: Manhole, Safety Valve, Level Gauge, Emergency Cut-off Valves, Ball Valve,Liquid Gauge,Thermometer, Pressure Gauge
Application range:
--It is used to transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.
--We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
--Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
--Optional accessories: ROCHESTER level gauge, volume and mass flow meter(LC or Neptune brand), sun shelter, lpg pump, lpg dispenser machine, filling hose
--Quick in and flange type liquid or vapour phase
--FUWA, L1, YORK, BPW axles
Factory Specification of lpg gas tanker trailer
| VESSEL | |||
| Water capacity of Tank | 59.5CBM | ||
| Overall Dimensions(L*W*H) | 12990*2500*3990mm | ||
| Tank Dimensions(Inner Diameter*thickness*Length) | 2478*12*12781mm | ||
| Estimated Tare Weight (kg) | 15650 | ||
| Payload(kg) | 25000 | ||
| Total Weight(kg) | 40650 | ||
| Wheelbase(mm) | 7230+1300+1300 | ||
| Loading medium | Liquefied Petroleum Gas (propane) | ||
| Fluid Property | Flammable | ||
| Design Temperature | -19 ºC~+50 ºC | ||
| Design Working Pressure | 1.61 Mpa/16.1 Bar | ||
| Hydraulic Testing Pressure | 2.12 Mpa/ 21.2 Bar | ||
| Corrosion Allowance(mm) | 1.00 | ||
| Weld Joint Factor | 1 | ||
| Major Tanker Materials and Thickness | Tanker body: Q345,12mm, | ||
| End plate:Q345R,12mm,double ellipse | |||
| Valves and fittings | |||
| Emergency Shut-off Valves | Model | Vapour phase | QGJ43F-2.5-8 |
| Liquid phase | QGJ43F-2.5-8 | ||
| Size | Vapour phase | DN80 ball valve with ACME 3 "l / 4 connection + plug | |
| Liquid phase | DN80 ball valve with ACME 3 "l / 4 connection + plug | ||
| Type | Mechanical operated | ||
| Shut off time | ≤10 S | ||
| Melting-close time | 75±5 | ||
| Safety Valve | Model | A412-25-16 | |
| Type | Build-in | ||
| Nominal pressure | 2.5Mpa/25 Bar | ||
| Valve base throat Diameter | 53 mm | ||
| Curb discharge pressure | ≤1.93 | ||
| Level gauge | Float-ball with measuring range 50~2475mm | ||
| Pressure Gauge | YN-100T | ||
| Thermometer | WTQ280 | ||
| Kingpin | |||
| 2" JOST king-pin,suitable for 4X2 or 6X4 truck head | |||
| Fabrication&Testing | |||
| Heat Treatment | Overall treatment in a furnace,600ºC to 640 ºC | ||
| Flaw Detection of All Plate | 100% Flaw detection | ||
| Radio graphic testing of welding lines | 100% | ||
| Air leakage test for piping and valves | 100% | ||
Reference photos
Sun shelter on top of 30 tonnes gas road tanker to avoid high temperature

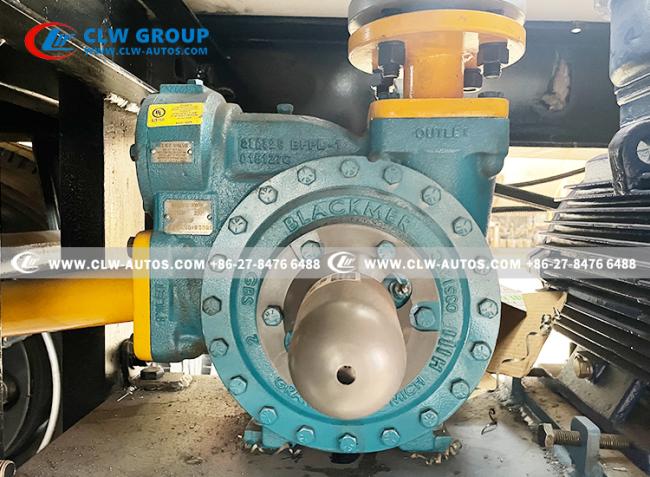

3" or 2" blackmer vane pump with 7.5HP Ex-proof motor for 30 tonnes gas road tanker

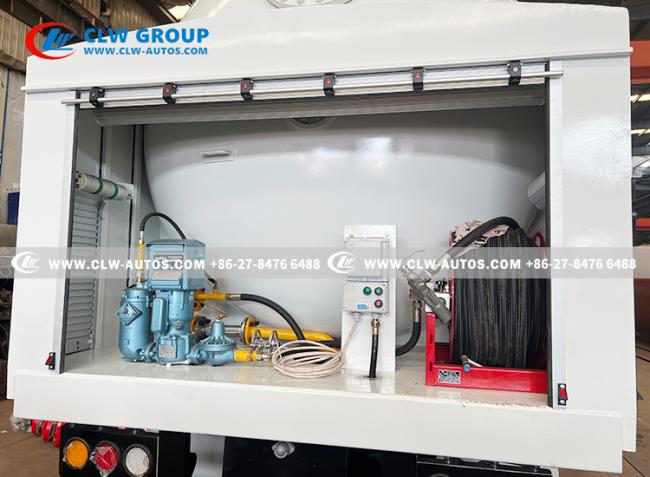

USA neptune flow meter and 40 meters filling hose for 30 tonnes gas road tanker
Successful case
After- sale service
a. Before purchasing:
1-Quick reply on customers' inquiry;
2-Professional suggestion on truck choice according to different countries.
3-Details quotation with spec.and reasonable price.
4-Welcome to visit our company before purchasing.
b. After purchasing:
1-Production pictures and video updated every week.
2-Customer can visit factory after truck completion or arrange third party inspection.
c. After-sales service:
1-English Operation Video
2-Free operation and technical train at factory but not include accommodation
3-Spare parts supplied at factory price whenever needed.
4-Engineers can be sent to your country and offer local engineering support and train.
