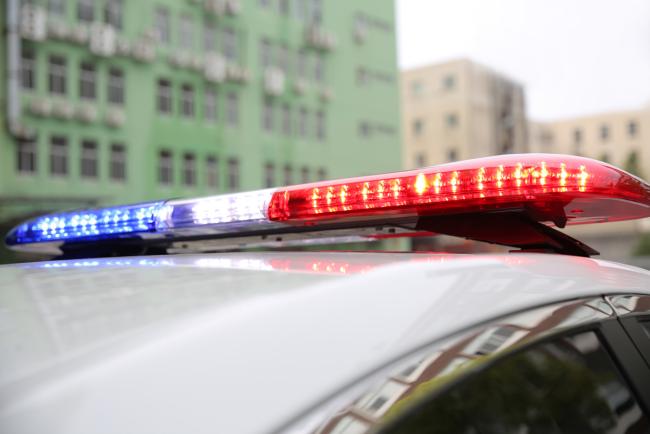

Roof Mounted Emergency Strobe Light Bar With PC Cover Aluminum Base
Emergency Warning Police LED Light Bar with PC Cover, Aluminum Base TBD-280001
Characteristics
This warning lightbar is mainly for Police Vehicle, Ambulance, Fire Truck, color can be customized basing on different situation.
It's our unique model with design patent, especially the screws are installed from bottom to up, ensuring that no holes seeing from above, meaning better watherproof function.
With different color combination of upper case & down case, the lightbar can have various changes according to clients' requirements.
Major component and material:
Bottom plate: well-treated aluminum alloy, shock resistant.
light source: 3W LED-3 lamp *22 modules
(10 in red, 10 in blue, 2 in white; 22 in total)
Controller: PK-11 model.
Technical parameter:
| Temperature: | -40℃ to 55℃ |
| Voltage: | DC 12V |
| Lamp power: | 75W |
| Current: | 12A for lamp and 8A for siren |
| Fusing current: | 40A |
| Frequency of strobe: | 60-180/min |
| Max illumination: | ≥5000lx (visible in 1000m, or 500m in fog) |
| Speaker: | 100W/8Ω speaker in-built |
| Siren: | Independent siren model 10094A |
| Enclosure ratings of dome: | IP65 |
| Dimensions: | 1200*302*155mm |
| Net weight: | 13KG |
