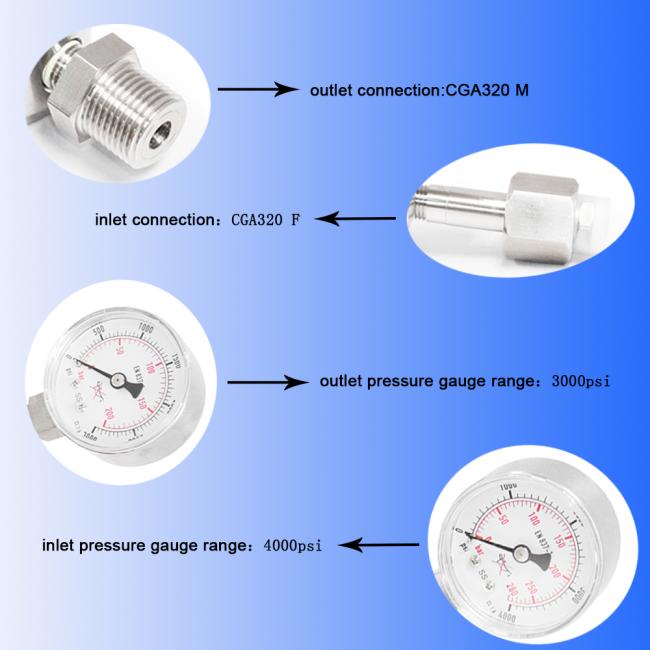

AFK Stainless Steel R41 High Pressure Oxygen Regulator 4000psi With Inlet Outlet CGA320
Features
1. Single stage piston sensing structure
2. Larger outlet pressure adjustment range
3. It can be used for standard gas and non corrosive gas
4. Install a 20 micron filter element at the inlet
5. Oxygen environment application options can be provided
Technical Data
1. Maximum inlet pressure: 4500psi or 6000PSI
2. Outlet pressure range: 0 ~ 1500,0 ~ 3000
3. Material of internal components:
Valve seat: PCTFE
Piston: 316L
O-ring: FKM
Filter element: 316L
4. Working temperature: - 26 ℃ ~ + 74 ℃ (- 15 ℉ ~ + 165 ℉)
5. Leakage rate (helium):
Inside: no visible bubbles
External: no visible bubbles
6. Flow coefficient (CV): 0.09
7. Parent port:
Inlet: 1 / 4NPT
Outlet: 1 / 4NPT
Pressure gauge port: 1 / 4NPT
Ordering Information
| R41 | L | B | B | D | G | 00 | 00 | P |
| Item | Body Materia | Body Hole | Inlet Pressure | Outlet Pressure | Pressure Gauge | Inlet Size | Outlet Size | Options |
| R41 | L:316 | A | B:6000psig | D:0~3000psig | G:MPa gauge | 00:1/4″NPT(F) | 00:1/4″NPT(F) | P:Panel mounting |
| B:Brass | B | D:3000psig | E:0~1500psig | P:Psig/bar gauge | 00:1/4″NPT(M) | 00:1/4″NPT(M) | ||
| D | F:0~500psig | W:No gauge | 10:1/8″OD | 10:1/8″OD | ||||
| G | G:0~250psig | 11:1/4″OD | 11:1/4″OD | |||||
| J | 12:3/8″OD | 12:3/8″OD | ||||||
| M | 15:6mm”OD | 15:6mm”OD | ||||||
| 16:8mm”OD | 16:8mm”OD |

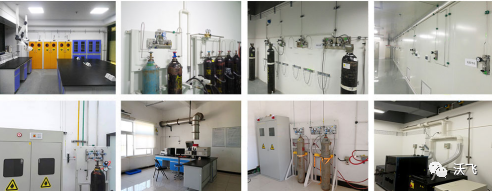

Project Case
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve
4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
