Stainless Steel High Pressure Air Regulator Two Stage Pressure Regulator With Relief Valve

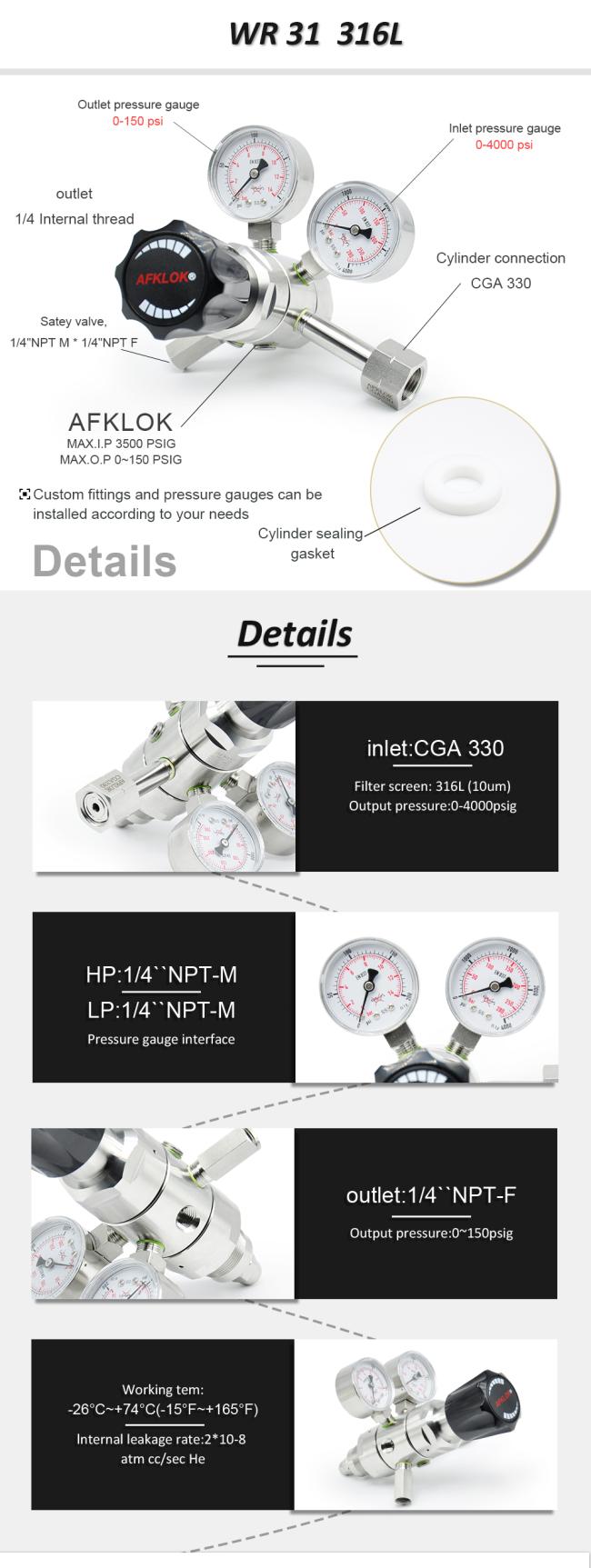

Product Description of High Pressure Air Nitrogen Hydrogen Regulator Two Stage Pressure Regulator with Stainless Pressure Relief Valve
Specification of High Pressure Air Nitrogen Hydrogen Regulator Two Stage Pressure Regulator with Stainless Pressure Relief Valve
|
Ordering Information |
||||||||
| R31 | L | B | G | G | 00 | 00 | 02 | P |
| Item | Body Materia |
Body Hole |
Inlet pressure |
Outlet pressure |
Pressure gauge |
Inlet size | Outlet size | Options |
| R31 | L:316 | M | D:3000psi | G:0-250psig | G:MPa gauge | 00:1/4 NPT(F) | 00:1/4 NPT(F) | P:panel mounting |
| B:Brass | Q | F:500psi | I:0_100psig | P:Psig/bar gauge | 01:1/4 NPT(M) | 01:1/4 NPT(M) | R:With relief valve | |
| K:0-50psig | W:No gauge | 23:CGA330 | 10:1/8 OD | N:With needle valve | ||||
| L:0-25psig | 24:CGA350 | 11:1/4 OD | D:With diaphragm valve | |||||
| Q:30 Hg Vac-30psig | 27:CGA580 | 12:3/8OD | ||||||
| S:30 Hg Vac-60psig | 28:CGA660 | 15:6mm OD | ||||||
| T:30 Hg Vac-100psig | 30:CGA590 | 16:8mm OD | ||||||
| U:30 Hg Vac-200psig | 52:G5/8-RH(F) | 74:M8X1-RH(M) | ||||||
| 63:W21.8-14H(F) | ||||||||
| 64:W21.8-14LH(F) | ||||||||
|
MATERIAL |
||
| 1 | Body | 316L,Brass |
| 2 | Bonnet | 316L,Brass |
| 3 | Diaphragm | 316L |
| 4 | Strainer | 316L(10um) |
| 5 | Seat | PCTFE,PTFE,Veapel |
| 6 | Spring | 316L |
| 7 | Stem | 316L |

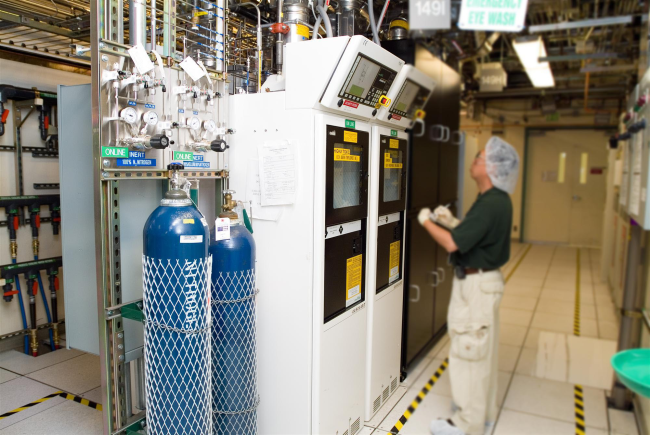

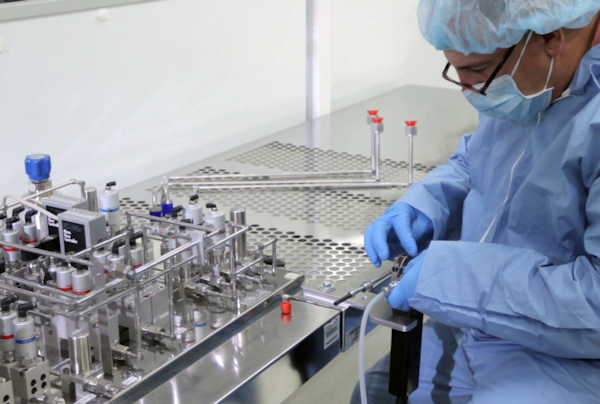

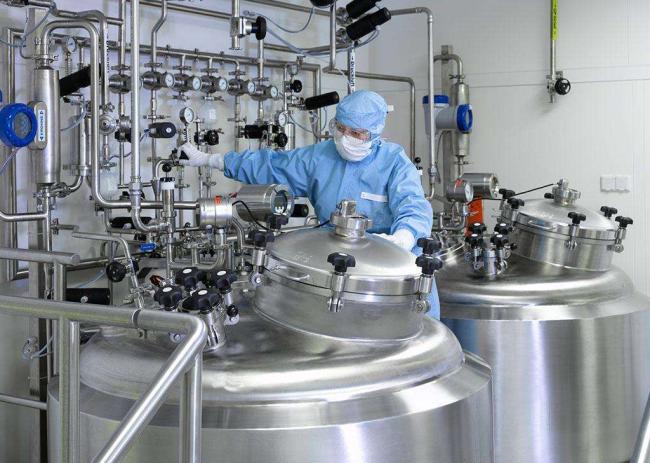

Application
Our products are used in laboratories, industry, semiconductors and gas analysis and testing, etc. We have done hundreds of projects in China and have a wealth of experience.
 |
 |
 |
 |
Collaborated on the following projects
 |
|
|
|
|
 |
|
Qualifications
 |
 |
 |
 |
FAQ
Q. Are you manufacturer?
A. Yes, we are manufacturer.
Q.What is lead time?
A.3-5days. 7-10 days for 100pcs
Q. How do I order?
A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours
Q. Do you have any certificates?
A. We have CE certificate.
Q. What materials do you have?
A. aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.
Q. What is maximum inlet pressure?
A.3000psi (about 206bar)
Q. How do I confirm inlet connnection for cylidner?
A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also
available e.g CGA540, CGA870 etc.
Q. How many types for connecting cylinder?
A. Down way and side way. (you can choose it)
Q. What is product warranty?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
