Laboratory Research Ultra High Purity Gas Regulator 1/4 VCR Connection CV Value 0.09

Product Description:

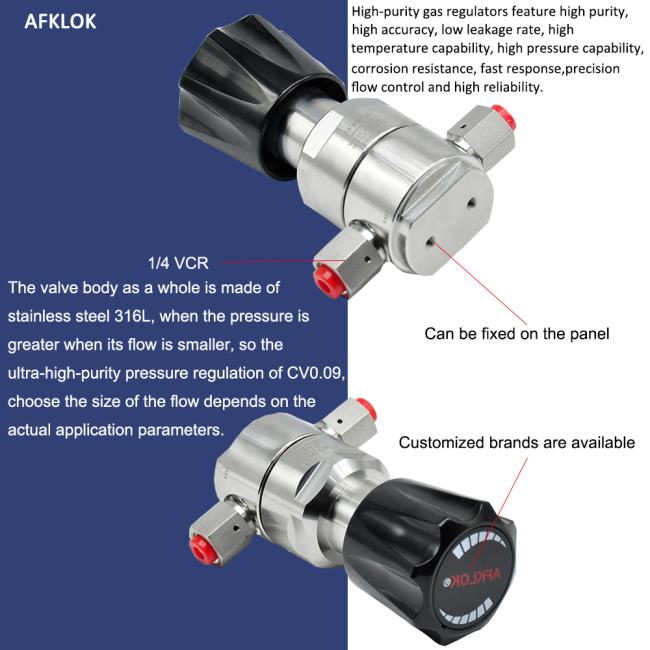

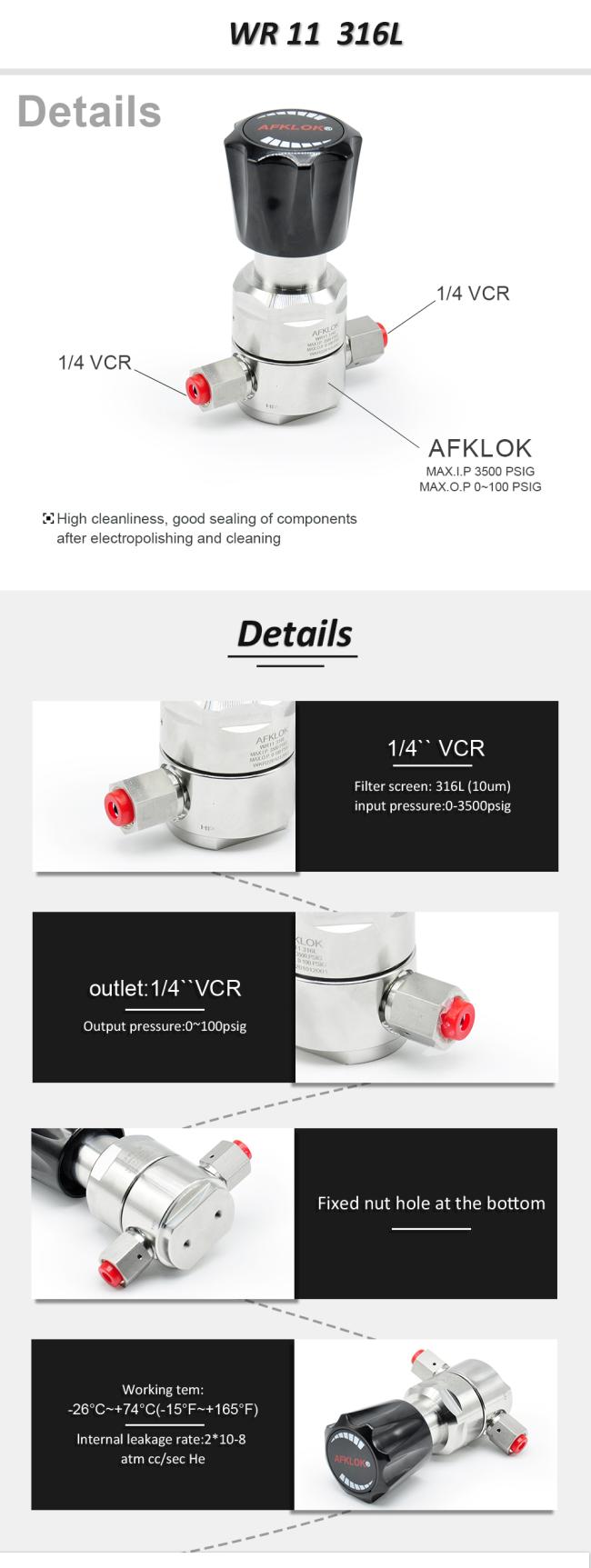

The VCR1/4 fitting ultra-high purity gas regulator is a regulator designed to control the flow and pressure of ultra-high purity gases. It is connected using the VCR1/4 fitting, a precision compression fitting commonly used in ultra-high purity gas systems. It provides a reliable seal and connection to ensure that no leakage occurs in the gas system. The regulator is designed to handle ultra-high purity gases, which typically require very low impurity levels. The regulator's design and material selection are designed to minimize the impact on gas purity to ensure precise control of pure gases. This makes it an excellent assistant in the handling of high purity gases.

Features:

• Product Name: Stainless Steel Pressure Regulator
• Warranty: 1 Year
• Connection Type: 1/4 VCR
• Working Temperature: -40℃～+74℃(-40℉～+165℉)
• External Flow Rate: ≤1×10-9 Mbar L/s
• Outlet Pressure Range: 0~30, 0~60, 0~100, 0~150, 0~250, 0~500psig
• High Precision Pressure Regulators
• High Purity Gas Regulators
• VCR Ultrahigh-Purity Pressure Regulators

Technical Parameters:

Applications:

AFKLOK is a leading manufacturer and supplier of stainless steel pressure regulator with model number DV. It has obtained CE certification and has minimum order quantity 1. The price is negotiable and specialized carton packaging ensures a safe delivery in 7~10 days. Customers can choose from various payment terms like L/C, D/A, D/P, T/T, Western Union, MoneyGram. With a supply ability of 5000, this pressure regulator can work in a temperature range of -40℃～+74℃(-40℉～+165℉). The external flow rate is ≤1×10-9 Mbar L/s and CV value is 0.09, while the internal flow rate is ≤1×10-7 Mbar L/s. It has an outlet pressure range of 0~30, 0~60, 0~100, 0~150, 0~250, 0~500psig.

This stainless steel pressure regulator is widely used in industrial applications. It is an ideal choice for industrial process control, power plants, chemical plants, oil refineries, water supply systems and other industries. The VCR Series Ultrahigh-Purity Gas Regulators is designed for precise control of pressure and flow. As a professional VCR Series Ultrahigh-Purity Gas Regulators manufacturer, AFKLOK provides Cv0.09 VCR Series Ultrahigh-Purity Gas Regulators satisfy the needs of customers.

Packing and Shipping:

• The pressure regulator is packaged in a sturdy cardboard box.
• The box also includes foam inserts to protect the item during shipping.
• The pressure regulator will be shipped via a reliable courier service.
• Once the item has been shipped, the customer will receive an email notification with tracking information.

FAQ:
