High Quality Two Stage High Pressure Stainless Steel Gas Pressure Regulator with CGA580
Price:
Negotiable
MOQ:
1 - 9 Sets
Delivery Time:
Negotiable
Brand:
AFK
Product Description
Product Application
R31 Series stainless steel pressure regulator , double-stage diaphragm pressure reducing construction, stable output pressure, applied to high pure gas, standard gas, corrosive gas and so on.
Main Features
1) Five hole design of the body
2) Double -stage reduce Structure.
3) Use hard-seal between body and diaphragm
4) Body Thread: input and output connection 1/4“ NPT F
5) Easy to sweep inside body
6) Filter element installed internally
7) Panel mountable or wall mounting available
8)Optional outlet : needle valve , diaphragm valve
Typical applications
1) Laboratory
2) Gas Chromatograph
3) Gas Laser

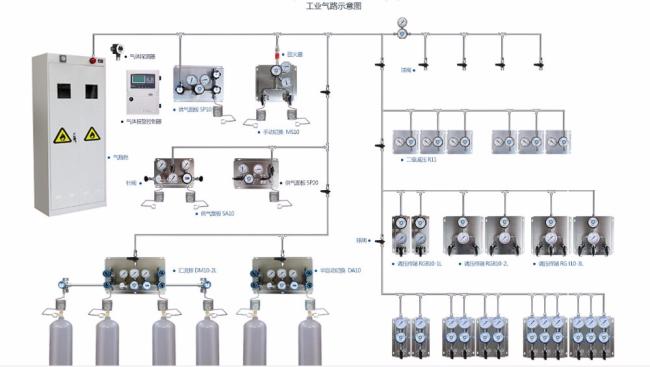

4) Gas bus-bar
5) Petrochemical industry
6) Tested instrumentation
|
Material List
|
Tenchnical Data
|
||
|
Body
|
316L, Brass
|
Max inlet pressure
|
500, 3000 psig
|
|
Roof
|
316L, Brass
|
Outlet pressure
|
0~25, 0~50, 0~100, 0~250psig
|
|
Diaphragm
|
316L
|
Proof pressure
|
1.5 times of maximum rated pressure
|
|
Filter mesh
|
316L (10μm)
|
Working temperature
|
-40°F-+165°F(-40°C-+74°C)
|
|
Valve seat
|
PCTFE, PTFE, Vaspel
|
Leakage rate
|
2*10-8 atm cc/sec He
|
|
Spring loaded
|
316L
|
Cv
|
0.06
|
|
Valve disc regulation pole
|
316L
|
Body Thread
|
1/4" NPT ( F )
|
|
ORDERING INFORMATION
|
||||||||
|
Item
|
Body material
|
Body hole
|
Inlet pressure
|
Outlet pressure
|
Pressure gauge
|
Inlet size
|
Outlet size
|
Mark
|
|
R31
|
L
|
B
|
D
|
F
|
G
|
00
|
00
|
P
|
|
|
L: 316L
B:Brass
|
A
B D G J M |
D:0-3000psig
E:0-2200psig F:0-500psig |
F:0-500psig
G:0-250psig I:0-100psig K:0-50psig L:0-25psig |
G:Mpa gauge
P:Psig bar gauge W:No gauge |
00:1/4"NPT(F)
01:1/4"NPT(M) 23:CGA330 24:CGA350
27:CGA580 28:CGA660 30:CGA590 52:G5/8"-RH(F) 63:W21.8-14RH(F) 64:W21.8-14LH(F) Other type can option |
00:1/4"NPT(F)
01:1/4"NPT(M) 10:1/8" Ferrule fitting 11:1/4" Ferrule fitting 12:3/8" Ferrule fitting 15:6mm ferrule fitting 16:8mm ferrulr fitting Other type can option |
P:Panel mount
R:Safety valve N:Needle valve O:Diaphragm valve |

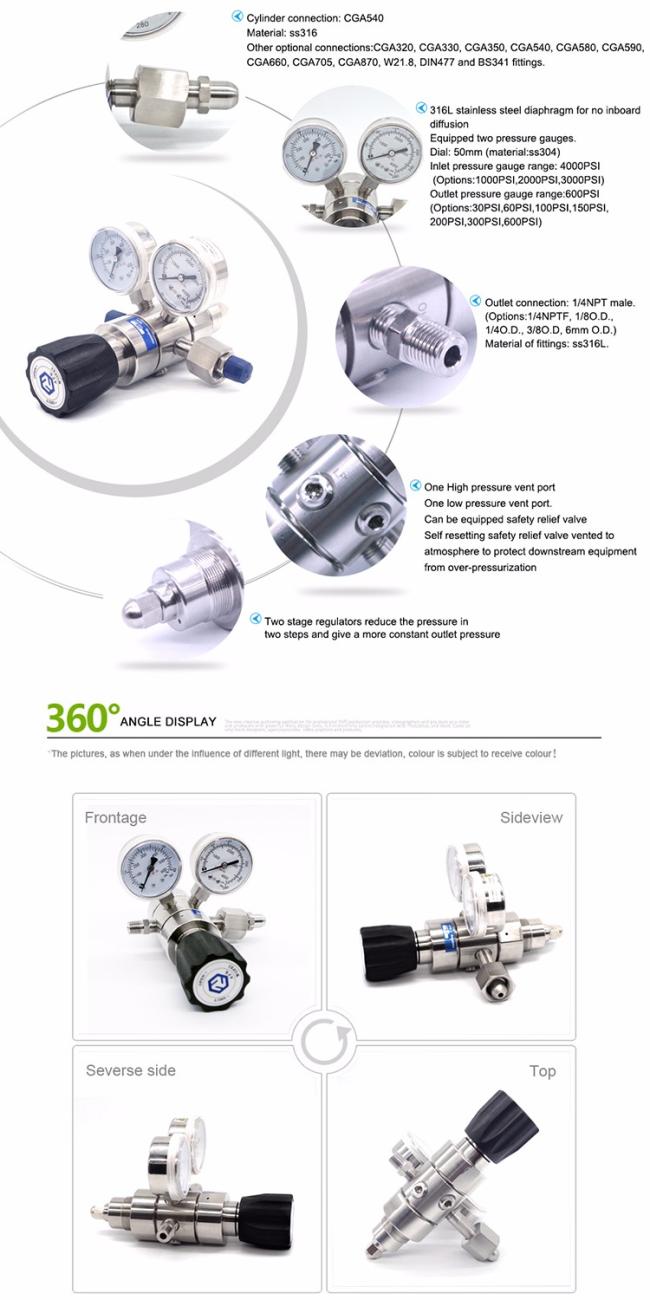

Product Show
