Chemical Lab Laboratory Female Connection End 70 bar Outlet Helium gas regulator for Helium Bottle
1.Piston pressure reducing instructure.
2. Stable pressure.
3. Used for high input pressure demand. 6000PSI.
4. Apply for high purity gas, standard gas, corrosive gas etc.
|
Specification
|
|
|
Max. inlet pressure
|
3000, 6000psig
|
|
Outlet pressure
|
0-250, 0-500, 0-1500, 0-3000psig
|
|
Safety test pressure
|
1.5times max. inlet pressure
|
|
Appliable temperature
|
-10℉+165℉ (-23℃+74℃)
|
|
Leakage rate
|
Foam test
|
|
CV
|
0.06
|
|
Material
|
|
|
Body
|
ss316L, nickel plated brass
|
|
Bonnet
|
ss316L
|
|
Seat
|
PCTFE
|
|
Spring
|
ss316L
|
|
Stem
|
Ss316L
|
|
O-ring
|
Viton
|
|
Stainer
|
ss316L(10um)
|
|

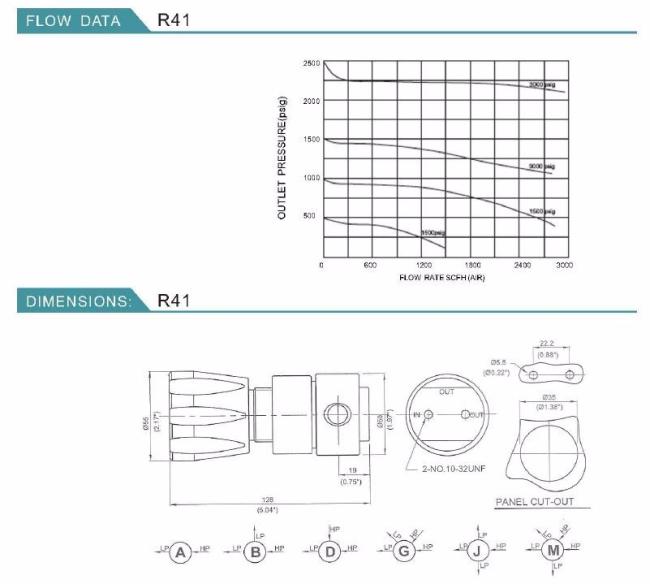

Item NO.
|
Body
|
Ports
|
Inlet pressure
|
outlet pressure
|
gauge
|
inlet connection
|
Outlet connection
|
Options
|
|
R41
|
L:316L
|
A
|
D:6000psi
|
D:0-3000psi
|
G:Mpa
|
00:1/4"NPT F
|
00:1/4"NPT F
|
P:Panel
|
|
|
B:brass
|
B
|
B:3000psi
|
E:0-1500psi
|
P:psi/bar
|
01:1/4NPT M
|
01:1/4NPT M
|
|
|
|
|
D
|
|
F:0-500psi
|
W:none
|
10:1/8O.D.
|
10:1/8O.D.
|
|
|
|
|
G
|
|
G:0-250psi
|
|
11:1/4O.D.
|
11:1/4O.D.
|
|
|
|
|
J
|
|
|
|
12:3/8O.D.
|
12:3/8O.D.
|
|
|
|
|
M
|
|
|
|
15:6mm O.D.
|
15:6mm O.D.
|
|
|
|
|
|
|
|
|
16:8mm O.D.
|
16:8mm O.D.
|
|
|
Other fittings are available, pls specify
|
||||||||
Please provide the following parameters in your inquiry as many as possible:
1. Inlet actual working pressure
2. Outlet actual working pressure
3. Inlet conenction and size
4. Outlet conenction and size
5. Material: brass, nickel plated brass, stainless steel
6. If you have special flow rate requirements and a panel, please indicate it.
7. Quantity
Notes: The ranges of pressure gauges, inlet connector, outlet connector can be equiped according to your requirements. Please write the above descriptions as possible as you can. If you can not confirm it at the moment, just send us inquiry, we also can recommend our regular model for you.

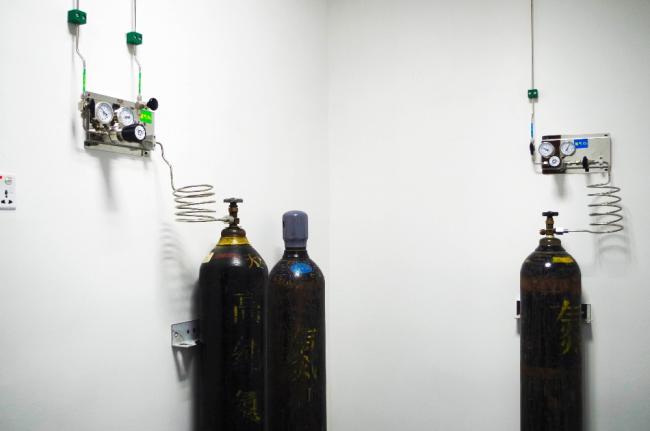

Application
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
