Stainless Steel 316L Single Stage Co2 Gas Low Pressure Regulator
Stainless Steel 316L Single Stage Co2 Gas Low Pressure Regulator
R12 Series stainless steel pressure reducers, single-stage diaphragms construction, Stainless steel diaphragms pressure transmission, stable output pressure, applied to medium flow gas system.
Main Features
1) Single -stage pressure reducing Structure.
2) Metal-to-metal diaphragm seal.
3) Body Thread : 1/2“ NPT ( F )
4) Pressure gauge, safety valve interface : 1/4" NPT ( F )

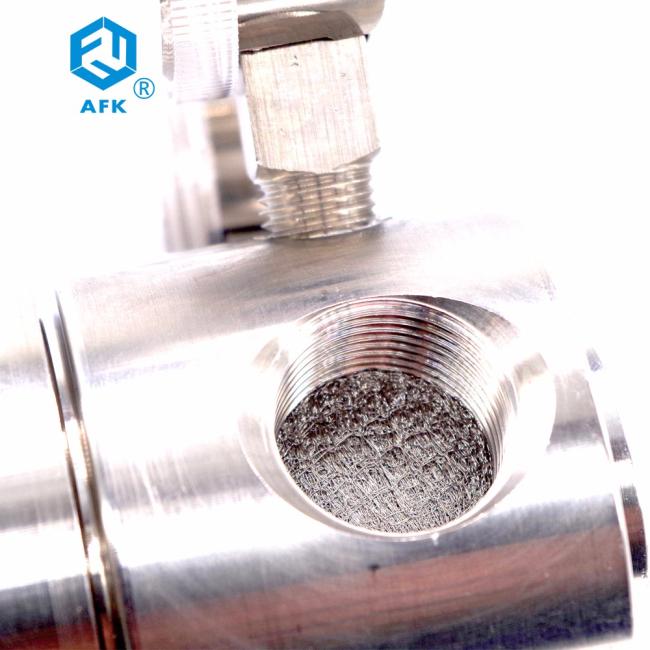

5) Filter element installed internally
6) Panel mountable or wall mounting available
Typical applications
1) Laboratory
2) Gas purge system
3) Corroslve gas, special gas
4) Gas bus-bar
5) Testing equipment
6) Oil and chemical industry
|
Material List
|
Tenchnical Data
|
||
|
Body
|
316L, Brass
|
Max inlet pressure
|
500, 3000 psig
|
|
Roof
|
316L, Brass
|
Outlet pressure
|
0~25, 0~50, 0~100, 0~125, 0~250 psig
|
|
Diaphragm
|
316L
|
Proof pressure
|
1.5 times of maximum rated pressure
|
|
Strainer
|
316L (10μm)
|
Working temperature
|
-40°F-+165°F(-40°C-+74°C)
|
|
Valve seat
|
PCTFE, PTFE, Vaspel
|
Leakage rate
|
2*10-8 atm cc/sec He
|
|
Spring loaded
|
316L
|
Cv
|
1.1
|
|
Valve disc regulation pole
|
316L
|
Body Thread
|
1/4" NPT ( F )
|
Ordering information
| R12 | L | B | D | F | G | 02 | 00 | P |
| Item |
Body Materia |
Body Hole |
Inlet pressure |
Outlet pressure |
Pressure gauge |
Inlet size |
Outlet size |
mark |
| R12 | L:316 | A | D:3000psi | G:0~250psig | G:MPa gauge | 02:3/8”NPT(F) | 02:3/8”NPT(F) | P:Panel mointing |
| B:Brass | B | F:500psi | H::0~125psig | 03:3/8”NPT(M) | 03:3/8”NPT(M) | R:With relief valve | ||
| D | I::0~100psig | P:Psig/bar gauge | 04:1/2”NPT(F) | 04:1/2”NPT(F) | ||||
| G | K::0~50psig | 05:1/2”NPT(M) | 05:1/2”NPT(M) | |||||
| J | L::0~25psig | W:No gauge | 12:3/8”OD | 12:3/8”OD | ||||
| M | 13:1/2”OD | 13:1/2”OD | ||||||
| Other type is available | Other type is available |
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
