Single Stage Co2 Nitrogen Gas Pressure High Pressure Regulator g 5/8 CGA320
|
SPECIFICATIONS FOR R52 pressure regulator
|
|
Max. inlet pressure
|
500, 1500, 3000psig
|
||
|
outlet pressure
|
0-15,0-25,0-50,0-100,0-250psig
|
||
|
safety testing pressure
|
1.5times max. inlet pressure
|
||
|
applicable temperature
|
-10 ℉+165℉ (-23℃+74℃)
|
||
|
leakage rate
|
foam test
|
||
|
Cv
|
0.06
|
||
|
Main parts of material
|
|||
|
body
|
316L
|
||
|
bonnet
|
316L
|
||
|
seat
|
PCTFE
|
||
|
spring
|
316L
|
||
|
stem
|
316L
|
||
|
o-ring
|
viton
|
||
|
stainer
|
316L(10um)
|
||
Main Features
1) piston reducing pressure structure.
2) body ports:1/4NPT (F)
3) set stainer inside.
4) using panel mouting or wall mounting
Ordering Information
| R52 | L | B | D | G | G | 00 | 00 | P |
| ltem | Body Material | Body Hole | Inlet Pressure | Outlet pressure | Pressure gauge | Inlet size | Outlet size | Options |
| R52 | L:316 | A | D:3000psig | G:0~250psig | G:MPa gauge | 00:1/4"NPT(F) | 00:1/4"NPT(F) | P:Panel mounting |
| B:Brass | B | E:1500psig | 1:0~100psig | P:Psig/bar gauge | 01:1/4"NPT(M) | 01:1/4"NPT(M) | R:With relief valve | |
| D | F:500psig | K:0~50psig | W:No gauge | 23:CGA330 | 10:1/8"OD | N:With needle valve | ||
| G | L:0~25psig | 24:CGA350 | 11:1/4" OD | D:With diaphragm valve | ||||
| J | M:0~15psig | 27:CGA580 | 12:3/8" OD | |||||
| M | Q:30" Hg Vac-30psig | 28:CGA660 | 15:6mm OD | |||||
| S:30" Hg Vac-60psig | 30:CGA590 | 16:8mm OD | ||||||
| T:30" Hg Vac-100psig | 52:G5/8M-RH(F) | 74:M8B1-RH(M) | ||||||
| U:30" Hg Vac-200psig | 63:W21 8-14RH(F) | |||||||
| 64:W21 8-14LH(F) |

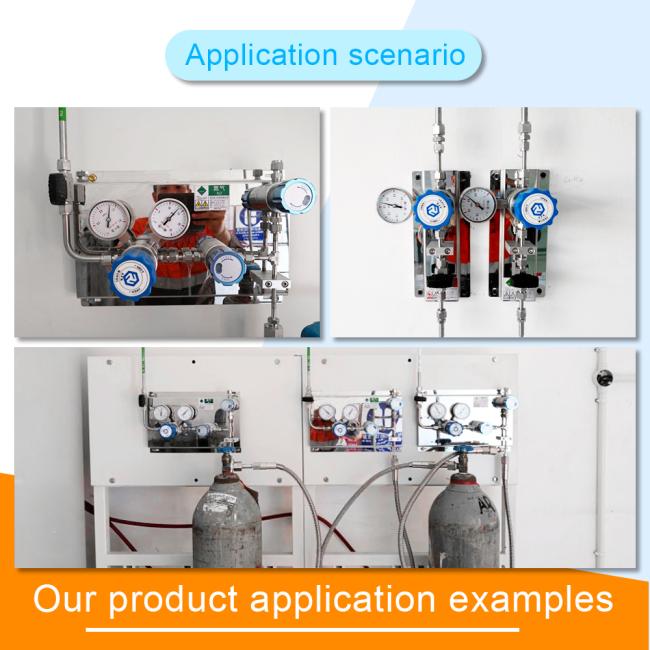

Application field laboratory, etc
