china products 1/4NPT 200bar air compressor regulator in ss/brass
china products 1/4NPT 200bar air compressor regulator in ss/brass
| Technical Diameter | ||||||
| Maximum Inlet Pressure | 500,3000psig | |||||
| Outlet Pressure Ranges | 0~25, 0~50, 0~50,0~250,0~500psig | |||||
| Safety test pressure | 1.5 times maximum inlet pressure | |||||
| Operating Temperature | -40°F to 165°F / -40°c to 74°c | |||||
| Leakage Rate AgainstAtmosphere | 2*10-8atm cc/sec he | |||||
| Cv value | 0.08 | |||||

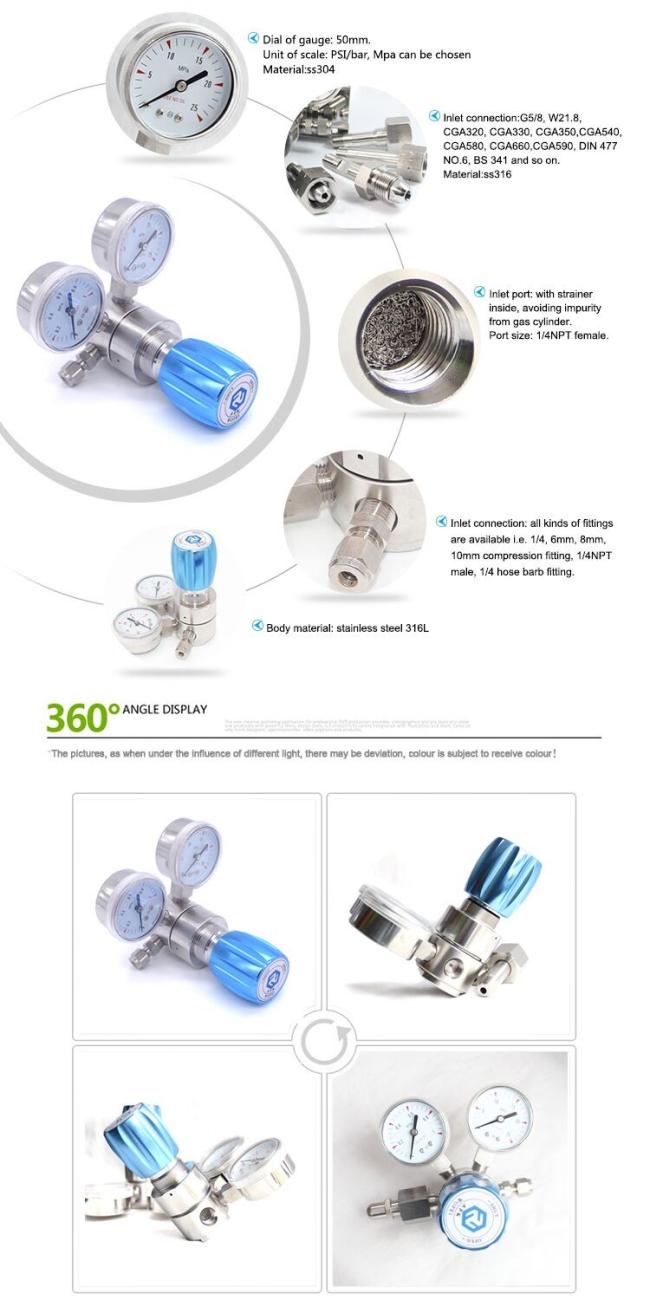

| Materials | ||||||
| Body | 316L,Brass | |||||
| Bonnet | 316L. Brass | |||||
| Diafragm | 316L | |||||
| strainer | 316L(10mm) | |||||
| Seat | PCTFE,PTEE,Vespel | |||||
| Spring | 316L | |||||
| Plunger valve core | 316L | |||||
| Design Features | ||||||
| Single-stage pressure reducer Maternal and diaphragm use hard seal form Body NPT:1/4''NPT(F) The internal structure easy to purge Can set filters Can use a panel or wall mounting |
||||||
| Typical Applications | ||||||
|
Labotary
|
||||||
Pls kindly inform following information to us when you send us inquiry.
1. Media? co2, o2, N2, H2, or?
2. Atual inlet and outlet pressure?
3. Inlet and outlet connection?
4. Flow rate?
5. Quantity?
6. Special demands, pls specify.
ORDERING INFORMATION
| R11 | L | B | D | F | G | 00 | 00 | P |
| Item |
Body Materia |

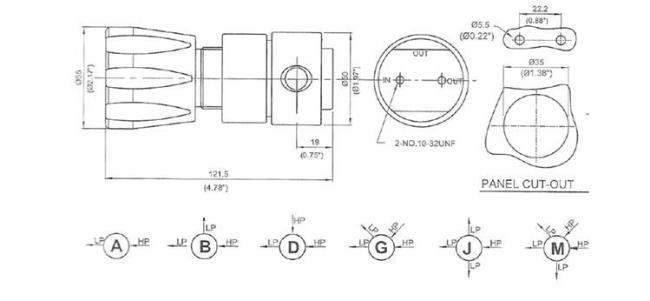

Body Hole |
Inlet pressure |
Outlet pressure |
Pressure gauge | Inlet size | Outlet size | mark |
| R11 | L:316 | A | D:3000 psi | F:0-500 psi | G:MPa gauge | 00:1/4 " NPT (F) | 00: 1/4 " NPT(F) | P:Panel mounting |
| B:Brass | B | E:2200 psi | G:0-250 psi | 01:1/4 " NPT (M) | 01: 1/4 " NPT(M) | N:Needle valve | ||
| D | F:500 psi | l:0-100 psi | P:Psig/bar gauge | 23: CGA330 | 10:1/8 " OD | N:Needle valve | ||
| G | K:0-50 psi | 24: CGA350 | 11:1/4 " OD | D:Diaphragm valve | ||||
| J | L:0-25 psi | W:No gauge | 28: CGA660 | 12:3/8 " OD | ||||
| M | 28: CGA660 | 15:6mm OD | ||||||
| 30: CGA590 | 16:8mm OD | |||||||
| 52: G5/8 "-RH(F) | ||||||||
| 63: W21.8-14H(F) | ||||||||
| 64: W21.8-14LH(F) |
FAQ
Q1. What is your terms of packing?
A: Export standard.
Q2. What is your terms of payment?
A: T/T ,PayPal, Western Union.
Q3. What is your terms of delivery?
A: EXW.
Q4. How about your delivery time?
A: Generally, it will take 5 to 7 days after receiving your full payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
