Specialty Gas Two Gauge CGA580 Nitrogen High Pressure Regulator
R11 series stainless steel pressure regulator, sinlge stage diphragm reducing structure, stainless steel diaphragm pressure transmit, stable outlet pressure, suitable for purity gas, standard gas and corrosive gas etc.
|
Maximum Inlet Pressure
|
500,3000psig
|
||
|
Outlet Pressure Ranges
|
0~25, 0~50, 0~50,0~250,0~500psig
|
||
|
Safety test pressure
|
1.5 times maximum inlet pressure
|
||
|
Operating Temperature
|
-40°F to 165°F / -40°c to 74°c
|
||
|
Leakage Rate Against Atmosphere
|
2*10-8atm cc/sec he
|
||
|
Cv value
|
0.08
|
||
|
Body
|
316L,Brass
|
||
|
Bonnet
|
316L. Brass
|
||
|
Diaphragm
|
316L
|
||
|
Strainer
|
316L(10mm)
|
||
|
Seat
|
PCTFE,PTEE,Vespel
|
||
|
Spring
|
316L
|
||
|
Plunger valve core
|
316L
|
||
gauge: one (Mpa, PSI/bar)
Mount: Panel
Details:
Details:

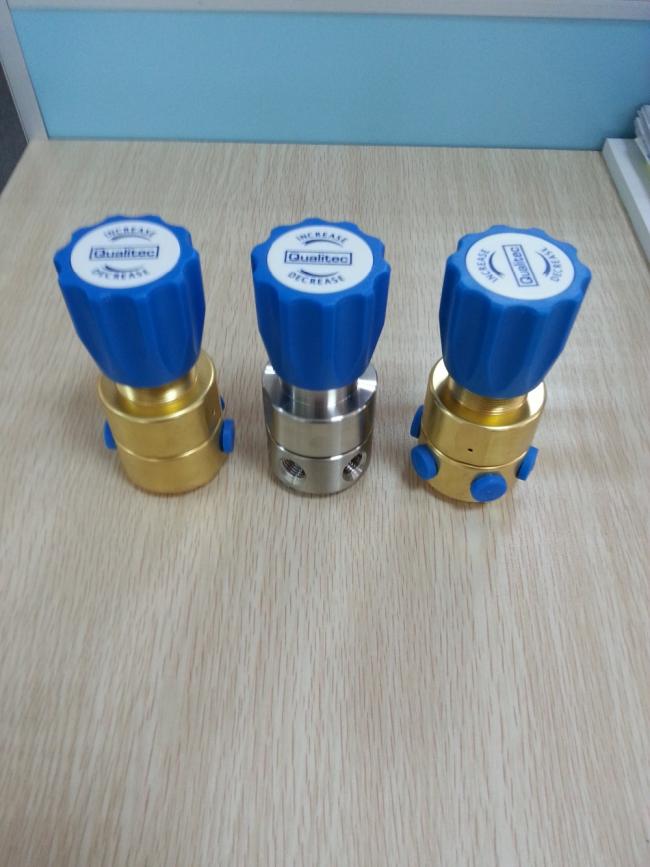

Knob: you can choose Black or Blue.
Body Material: stainless steel 316L, Brass and Nickel plated brass are available.

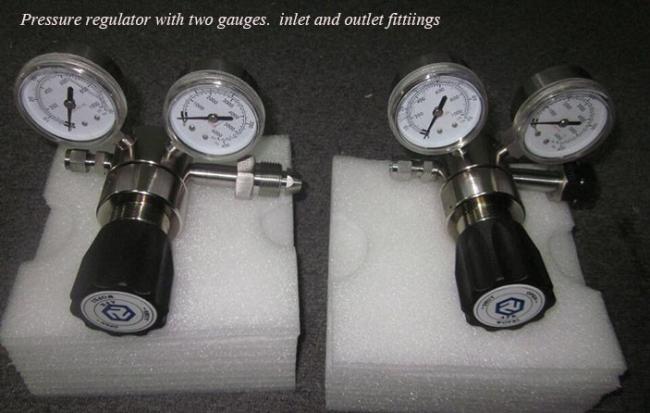

Gauge: No, one, two as your request.
Inlet and outlet connection: equipped them as your request.
ORDERING INFORMATION
| R11 | L | B | D | F | G | 00 | 00 | P |
| Item |
Body Materia |

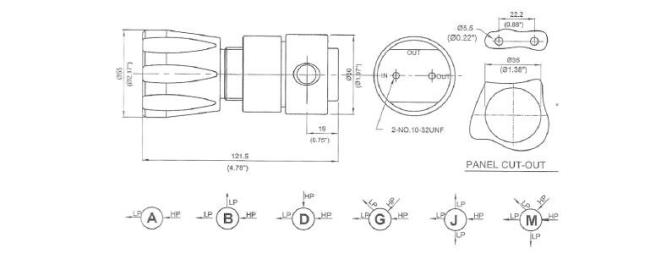

Body Hole |
Inlet pressure |
Outlet pressure |
Pressure gauge | Inlet size | Outlet size | mark |
| R11 | L:316 | A | D:3000 psi | F:0-500 psi | G:MPa gauge | 00:1/4 " NPT (F) | 00: 1/4 " NPT(F) | P:Panel mounting |
| B:Brass | B | E:2200 psi | G:0-250 psi | 01:1/4 " NPT (M) | 01: 1/4 " NPT(M) | N:Needle valve | ||
| D | F:500 psi | l:0-100 psi | P:Psig/bar gauge | 23: CGA330 | 10:1/8 " OD | N:Needle valve | ||
| G | K:0-50 psi | 24: CGA350 | 11:1/4 " OD | D:Diaphragm valve | ||||
| J | L:0-25 psi | W:No gauge | 28: CGA660 | 12:3/8 " OD | ||||
| M | 28: CGA660 | 15:6mm OD | ||||||
| 30: CGA590 | 16:8mm OD | |||||||
| 52: G5/8 "-RH(F) | ||||||||
| 63: W21.8-14H(F) | ||||||||
| 64: W21.8-14LH(F) |
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
