3000PSI R31 stainless steel dual stage oxygen regulator with two manometers
Price:
Negotiable
MOQ:
1 - 9 Pieces
Delivery Time:
Negotiable
Brand:
AFK
Product Description
Product Description

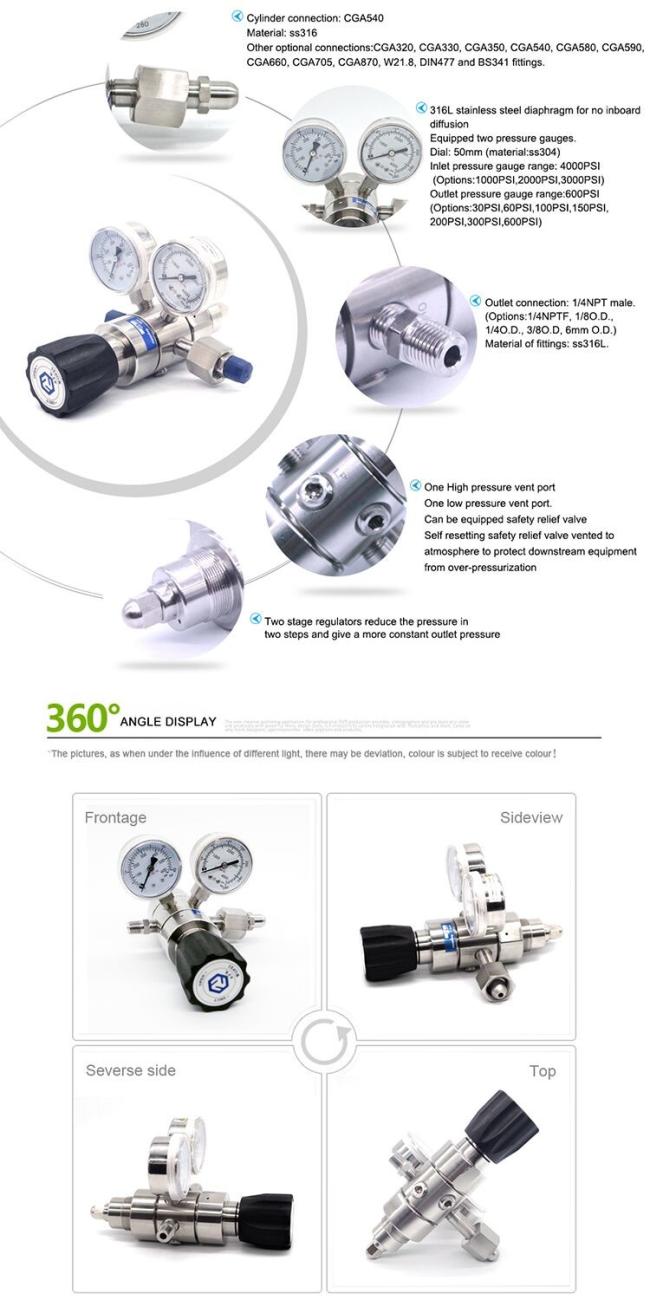

R31 series stainless steel pressure regulator, double stage diaphragm reducing structure, stable input pressure, suitable for high purity gas, standard gas, corrosive gas etc.
Ordering Information
| R31 | L | B | G | G | 00 | 00 | 02 | P |
| Item | Body Materia |
Body Hole |
Inlet pressure |
Outlet pressure |
Pressure gauge |
Inlet size | Outlet size | Options |
| R31 | L:316 | M | D:3000psi | G:0-250psig | G:MPa gauge | 00:1/4 NPT(F) | 00:1/4 NPT(F) | P:panel mounting |
| B:Brass | Q | F:500psi | I:0_100psig | P:Psig/bar gauge | 01:1/4 NPT(M) | 01:1/4 NPT(M) | R:With relief valve | |
| K:0-50psig | W:No gauge | 23:CGA330 | 10:1/8 OD | N:With needle valve | ||||
| L:0-25psig | 24:CGA350 | 11:1/4 OD | D:With diaphragm valve | |||||
| Q:30 Hg Vac-30psig | 27:CGA580 | 12:3/8OD | ||||||
| S:30 Hg Vac-60psig | 28:CGA660 | 15:6mm OD | ||||||
| T:30 Hg Vac-100psig | 30:CGA590 | 16:8mm OD | ||||||
| U:30 Hg Vac-200psig | 52:G5/8-RH(F) | 74:M8X1-RH(M) | ||||||
| 63:W21.8-14H(F) | ||||||||
| 64:W21.8-14LH(F) |

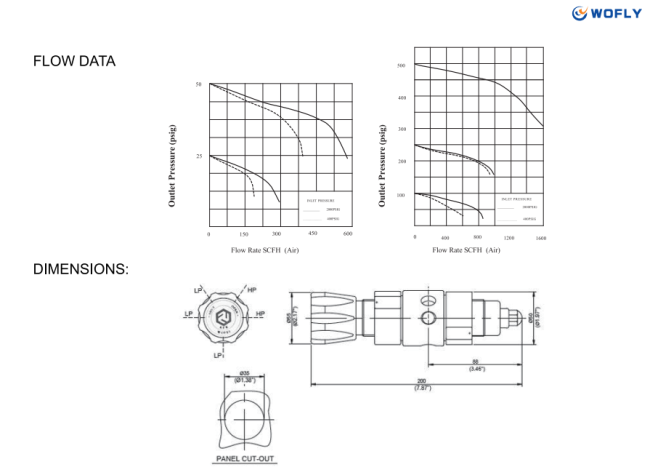

Technical parameters
|
Maximum Inlet Pressure
|
500,3000psig
|
||
|
Outlet Pressure Ranges
|
0~25, 0~50, 0~50,0~250,0~500psig
|
||
|
Safety test pressure
|
1.5 times maximum inlet pressure
|
||
|
Operating Temperature
|
-40°F to 165°F / -40°c to 74°c
|
||
|
Leakage Rate Against Atmosphere
|
2*10-8atm cc/sec he
|
||
|
Cv value
|
0.08
|
||
Material of Parts
|
Body
|
316L,Brass
|
||
|
Bonnet
|
316L. Brass
|
||
|
Diaphragm
|
316L
|
||
|
Strainer
|
316L(10mm)
|
||
|
Seat
|
PCTFE,PTEE,Vespel
|
||
|
Spring
|
316L
|
||
|
Plunger valve core
|
316L
|
||
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
