R41 Natural Gas Pressure Regulator High Pressure Wall Pressure Relief Structure
Technical Parameter
--Maximum Inlet Pressure:3000,6000psig
--Outlet Pressure Ranges: 0~250, 0~500, 0~1500,0~3000psig
--Safety test pressure :1.5 times maximum inlet pressure
--Operating Temperature:40°F to +165°F / -40°c to 74°c
---Leak rate foam test
---Cv value 0.06
Design Feature
--Piston type pressure relief structure.
--Body NPT:1/4''NPT(F)
--Can set filters
--Can use a panel or wall mounting
Typical Applications
--Labotary
--Gas Chromatography
--Gas laser
--Gas bus-bar
--petro-chemical industry
---Test equipment

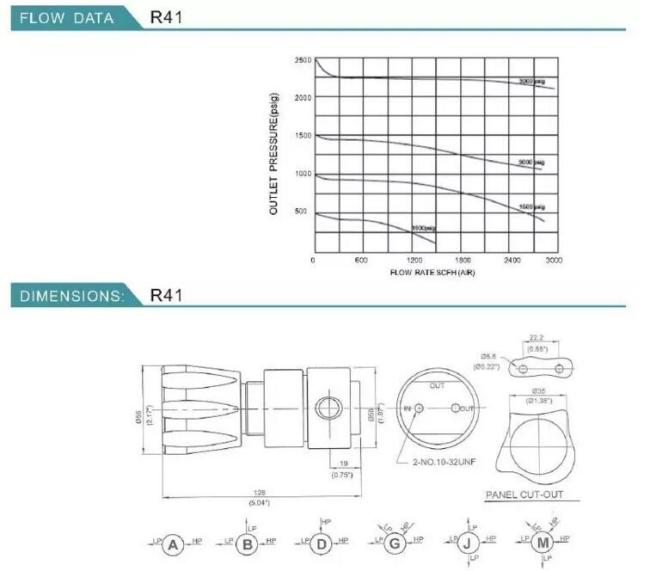

Product selection
| R41 | L | B | B | D | G | 00 | 00 | P |
| Item | Body Materia | Body Hole | Inlet Pressure | Outlet Pressure | Pressure Gauge | Inlet Size | Outlet Size | Options |
| R41 | L:316 | A | B:6000psig | D:0~3000psig | G:MPa gauge | 00:1/4"NPT(F) | 00:1/4"NPT(F) | P:Panel mounting |
| B:Brass | B | D:3000psig | E:0~1500psig | P:Psig/bar gauge | 00:1/4"NPT(M) | 00:1/4"NPT(M) | ||
| D | F:0~500psig | W:No gauge | 10:1/8"OD | 10:1/8"OD | ||||
| G | G:0~250psig | 11:1/4"OD | 11:1/4"OD | |||||
| J | 12:3/8"OD | 12:3/8"OD | ||||||
| M | 15:6mm"OD | 15:6mm"OD | ||||||
| 16:8mm"OD | 16:8mm"OD | |||||||
| Other type is available | Other type is available |
Please provide the following parameters in your inquiry as many as possible:
1. Inlet actual working pressure
2. Outlet actual working pressure
3. Inlet conenction and size
4. Outlet conenction and size
5. Material: brass, nickel plated brass, stainless steel
6. If you have special flow rate requirements and a panel, please indicate it.
7. Quantity
Notes: The ranges of pressure gauges, inlet connector, outlet connector can be equiped according your requirements. Please write the above descriptions as possible as you can. If you can not confirmed it at the moment, just send us inquiry, we also can recommend our regular model for you
|
Packaging
|
|
|
Size
|
17cm(L) * 17cm (W) * 17cm (D)
|
|
Weight
|
0.9KGS
|
|
Packaging Details
|
But Netural Package is also available
|
|
Packaging
|
|
|
Size
|
36.5 cm(L) * 37.5cm (W) * 36.5cm (D)
|
|
Weight
|
10KGS
|
|
Packaging Details
|
Carton Packaging
|
RFQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
