Oxygen Cylinder High Pressure Regulator 316L Plunger Valve Core Gas Laser Application
Technical Parameter of Oxygen Cylinder High Pressure Regulator
| 1 | Maximum Inlet Pressure | 3000,6000psig | |||||
| 2 | Outlet Pressure Ranges | 0~250, 0~500, 0~1500,0~3000psig | |||||
| 3 | Safety test pressure | 1.5 times maximum inlet pressure | |||||
| 4 |
Operating Temperature |
-40°F to +165°F / -40°c to 74°c |
|||||
| 5 | Leak rate | foam test | |||||
| 6 | Cv value | 0.06 | |||||
Material of Oxygen Cylinder High Pressure Regulator
| 1 | Body | 316L.Brass | |
| 2 | Bonnet | 316L. Brass | |
| 3 | Diafragm | 316L | |
| 4 | Strainer | 316L(10 μm) | |
| 5 | Seat | PCTFE | |
| 6 | Spring | 316L | |
| 7 | Plunger valve core | 316L | |
| 8 | o-ring | viton | |
Design Feature of Oxygen Cylinder High Pressure Regulator
| 1 | Piston type pressure relief structure. |
| 2 | Body NPT:1/4''NPT(F) |
| 3 | Can set filters |
| 4 | Can use a panel or wall mounting |
Typical Applications of Oxygen Cylinder High Pressure Regulator
| 1 | Labotary | School laboratory,Research gas,Industrial gas |
| 2 | Gas Chromatography | |
| 3 | Gas laser | |
| 4 | Gas bus-bar | |
| 5 | petro-chemical industry | |
| 6 | Test equipment | |
Ordering Information of Oxygen Cylinder High Pressure Regulator

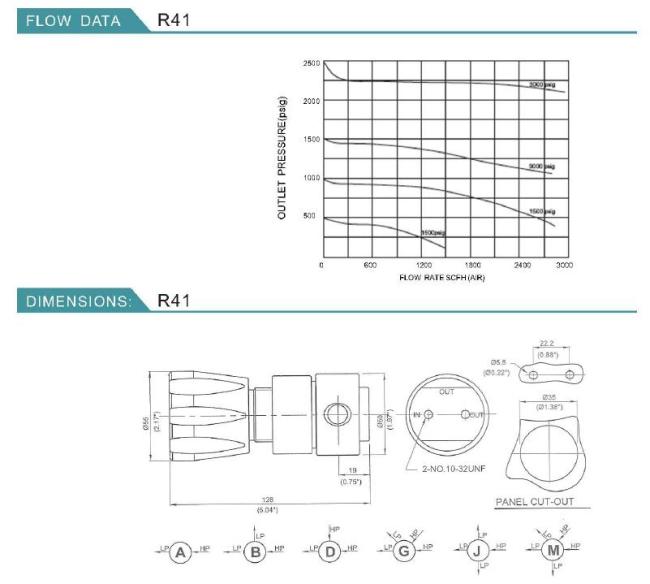

| Item NO | Body material | Body ports | Inlet pressure | Outlet pressure | Gauge | Inlet connection | Outlet connection | Options |
| R41 | L:316L | A | D:6000psi | D:0-3000psi | G:Mpa | 00:1/4NPT F | 00:1/4NPT F | P:panel mount |
| B:brass | B | B:3000psi | E:0-1500PSI | P:psi/bar | 01:1/4NPT M | 01:1/4NPT M | ||
| D | F:0-500psi | W:none | 10:1/8O.D. | 10:1/8O.D. | ||||
| G | G:0-250psi | 11:1/4O.D. | 11:1/4O.D. | |||||
| J | 12:3/8O.D. | 12:3/8O.D. | ||||||
| M | 15:6mm O.D. | 15:6mm O.D. | ||||||
| 16:8mm O.D. | 16:8mm O.D. |
Please provide the following parameters in your inquiry as many as possible:
1. Inlet actual working pressure
2. Outlet actual working pressure
3. Inlet conenction and size
4. Outlet conenction and size
5. Material: brass, nickel plated brass, stainless steel
6. If you have special flow rate requirements and a panel, please indicate it.
7. Quantity
Notes: The ranges of pressure gauges, inlet connector, outlet connector can be equiped according your requirements. Please write the above descriptions as possible as you can. If you can not confirmed it at the moment, just send us inquiry, we also can recommend our regular model for you
Click for More Information!!!

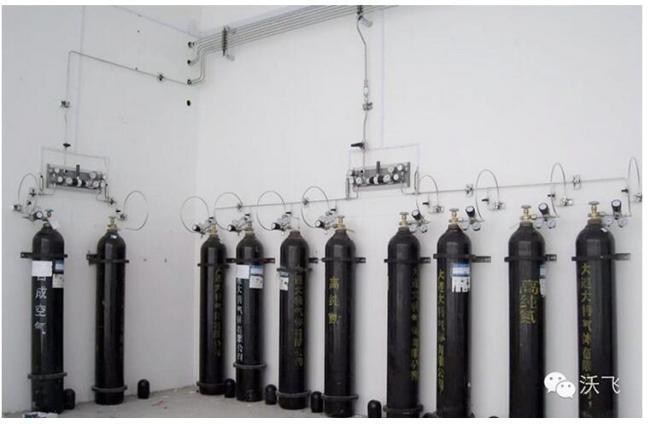

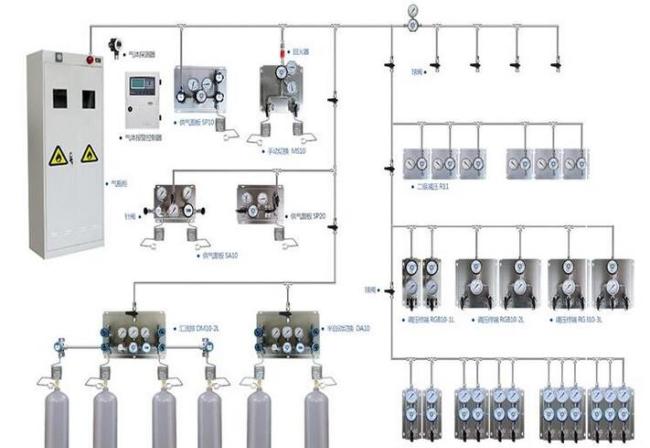

Application
FAQ
Q1. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q2. Do you have any MOQ limit ?
A: Low MOQ 1 pic.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days. Airline and sea shipping also optional.
Q4. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.
