Helium Natural Gas Stainless Steel Pressure Regulator Single Stage Cv Value 1.8
Price:
Negotiable
MOQ:
1-9 Pieces
Delivery Time:
Negotiable
Brand:
AFK
Product Description
Technical Parameter:
--Maximum Inlet Pressure:500,1500psig
--Outlet Pressure Ranges:0~15, 0~25, 0~75,0~125PSIG
--Safety test pressure: 1.5 times maximum inlet pressure
--Operating Temperature: 40°F to +165°F / -40°c to 74°c
--Leakage Rate Against Atmosphere:2*10-8atm cc/sec he
--Cv value 1.8
Material:
--Body :316L, Brass
--Bonnet: 316L. Brass
--Diaphragm:316L
--Strainer: 316L(10 μm)
--Seat:PCTFE,PTEE
--Spring: 316L
--Plunger valve core:316L
Typical Applications:
--Labotary
--Gas Chromatography
--Gas laser
--Gas bus-bar
--petro-chemical industry
--Test equipment
Ordering Information
|
Item
|
Body material
|
Body ports
|
Inlet pressure
|
Outlet pressure
|
Pressure Gauge
|
Inlet connection
|
Outlet connection
|
Option
|
|
R13
|
L
|
B
|
E
|
H
|
G
|
04
|
04
|
P
|
|
|
L:316L
|
A
|
E:1500psi
|
H:0-125psi
|
G:Mpa
|
04:1/2"npt F
|
04:1/2"npt F
|
P:panel
|
|
|
B:brass
|
B
|
F:500psi
|
J:0-75psi
|
P:psi/bar
|
05:1/2"npt M
|
05:1/2"npt M
|
R:safety valve
|
|
|
|
D
|
|
L:0-25psi
|
W:no
|
06:3/4"npt F
|
06:3/4"npt F
|
|
|
|
|
G
|
|
M:0-15psi
|
|
13:1/2"OD
|
13:1/2"OD
|
|
|
|
|
J
|
|
Q:30"Hg
|
|
14:3/4"OD
|
14:3/4"OD
|
|
|
|
|
M
|
|
|
|
|
|
|
Pls send us your order code e.g.: R13-L-B-E-H-P-04-04-P or pls inform us following information:
1.What media is used for?
2.What is inlet pressure?
3.What is outlet pressure?
4.What type of inlet connection?
5.What type of outlet connection?
6.How much is flow rate?
7.If you have other special requests, pls inform us.

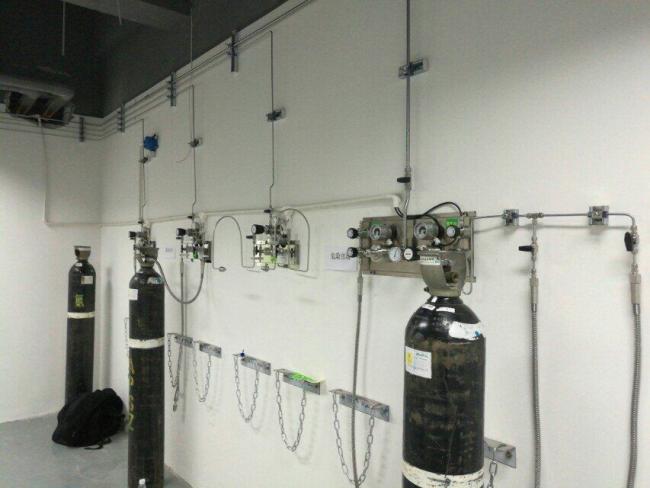

Application
