Panel Mounting Gas Regulator Valve Co2 725 Psi Seat PCTFE Viton O - Ring
high pressure panel mounting gas regulator co2 725 psi
Technical Parameter:
| Maximum Inlet Pressure | 3000,6000psig | |||||
| Outlet Pressure Ranges | 0~250, 0~500, 0~1500,0~3000psig | |||||
| Safety test pressure | 1.5 times maximum inlet pressure | |||||
|
Operating Temperature |
-40°F to +165°F / -40°c to 74°c |
|||||
| Leak rate | foam test | |||||
| Cv value | 0.06 | |||||
Material:
| Body | 316L.Brass | |
| Bonnet | 316L. Brass | |
| Diafragm | 316L | |
| Strainer | 316L(10 μm) | |
| Seat | PCTFE | |
| Spring | 316L | |
| Plunger valve core | 316L | |
| o-ring | viton | |
Design Feature:
Piston type pressure relief structure.
Body NPT:1/4''NPT(F)
Can set filters
Can use a panel or wall mounting
Typical Applications:
Labotary
Gas Chromatography
Gas laser
Gas bus-bar
petro-chemical industry
Test equipment
Flow Diagram:
Ordering Information:
| R41 | L | B | B | D | G | 00 | 00 | P |
| Item | Body Materia | Body Hole | Inlet Pressure | Outlet Pressure | Pressure Gauge | Inlet Size | Outlet Size | Options |
| R41 | L:316 | A | B:6000psig | D:0~3000psig | G:MPa gauge | 00:1/4″NPT(F) | 00:1/4″NPT(F) | P:Panel mounting |
| B:Brass | B | D:3000psig | E:0~1500psig | P:Psig/bar gauge | 00:1/4″NPT(M) | 00:1/4″NPT(M) | ||
| D | F:0~500psig | W:No gauge | 10:1/8″OD | 10:1/8″OD | ||||
| G | G:0~250psig | 11:1/4″OD | 11:1/4″OD | |||||
| J | 12:3/8″OD | 12:3/8″OD | ||||||
| M | 15:6mm”OD | 15:6mm”OD | ||||||
| 16:8mm”OD | 16:8mm”OD |

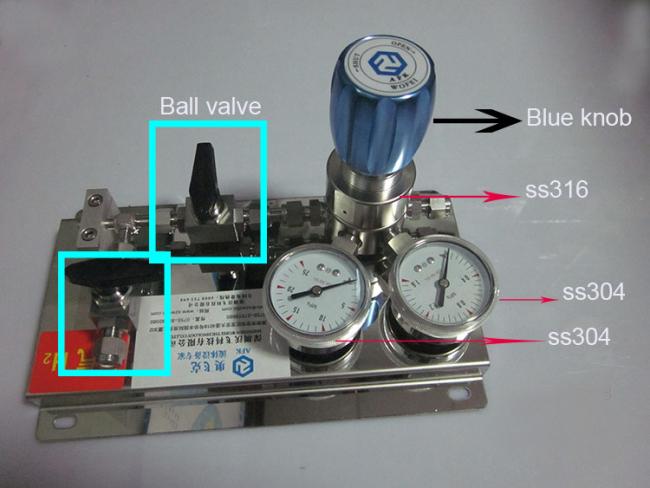

Product Image:
