DN50 Stainless steel actuator valve flow control electric ball valve
Price:
Negotiable
MOQ:
>=1 Sets
Delivery Time:
Negotiable
Brand:
AFK
Product Description
DN50 Stainless steel actuator valve flow control electric ball valve
|
Product
|
Q911F 3-piece electric ball valve
|
|
Material
|
SS316 , SS304 or 316L
|
|
Pressure
|
10-16 Bar
|
|
Connection
|
Thread
|
|
Seal
|
FTFE, PPL, Metal Seal
|
|
Environmental Temperature
|
-30℃ ~60℃
|
|
Applicable Media
|
Water, oil, Acids, viscous fluids etc
|
|
Warranty
|
1 year
|
|
SDV sereies actuator specification
|

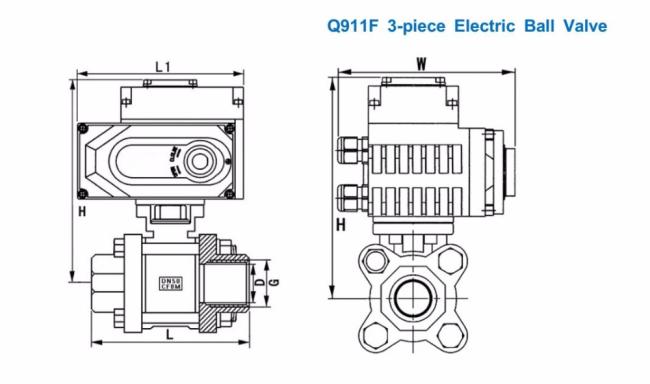

Q911F Electric 3-piece Ball Valve
|
||
|
Power
|
AC110, 220, 380V/DC24, 220V
|
DN
|
DN15-100mm
|
|
Torque
|
50N·M~2000N·M
|
PN
|
PN1.6, 2.5, 4.0, 6.4Mpa
|
|
Optional
|
On-off type, switch signal type, Intelligent type
|
Valve shaft
|
Stainless steel
|
|
Actuation Range
|
0~90℃±5°℃
|
The Material of body
|
WCB, SS304/316/316L
|
|
Actuation time
|
15s/30s/60s
|
The Material of valve body
|
SS304/316/316L
|
|
Environmental Temperature
|
-30℃~60℃
|
The Material of sealing and seat
|
PTFE, PPL, Metal Seal
|
|
Manual operation
|
Attached handle operation
|
Temperature
|
PTFE=180℃, PPL=300℃
|
|
Limited
|
Electrical and mechanical double linit
|
Structure type
|
3-piece, BW, SW
|
|
IP
|
IP-67(Explosion-proof enclosure: Exd Ⅱ BT4 IP67 optional)
|
Applicable medium
|
Water, oil, Acids, viscous fluids etc
|
|
Input signal
|
0-10, 1-5VDC/4-20mA(Intelligent type)
|
Feature
|
Compact structure, small size, large circulation capacity
|
