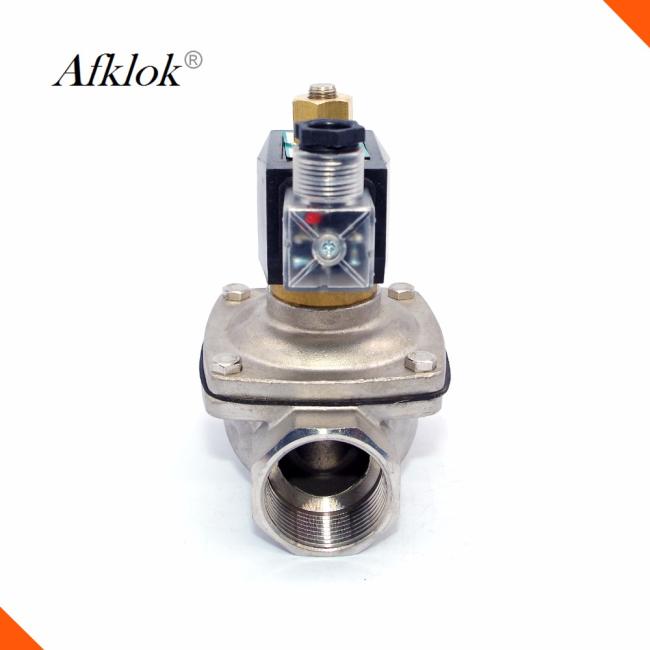

1-1/4 inch Normally Open Stainless Steel Lpg Water Solenoid Valve DC 12V
Price:
Negotiable
MOQ:
>=1 Sets
Delivery Time:
Negotiable
Brand:
AFK
Product Description
1-1/4 inch Normally Open Stainless Steel Lpg Water Solenoid Valve DC 12V
1.Model: 2W-32BK
2.Size: 1 1/4 inch
3. Orifice size: 32mm
4.Connection : G thread
5.Type:Normally open
6.Working voltage: AC380V, 220V,110V,24V DC24,12V
7.Material: Stainless steel 304
8.Medium: Water, Gas, Air
9.Pressure : 1-10kgf/cm2
4.Connection : G thread
5.Type:Normally open
6.Working voltage: AC380V, 220V,110V,24V DC24,12V
7.Material: Stainless steel 304
8.Medium: Water, Gas, Air
9.Pressure : 1-10kgf/cm2
|
DESIGN FEATURES
|
|
|
1. Pilot diaphragm type
|
|
|
2. Fit for air, water, Air , Gas
|
|
|
3.Normally open
|
|
|
4.Pipe size from 1/8' to 2' .
|
|
|
5. Service voltage : AC380V, 220V,110V,24V DC24,12V
|
|
|
6.Thread connection : G thread
|
|
|
7.Large flow.
|
|
|
8.Material: Stainless steel 304
|
|
Model Number
|
|
|
2W-10BK
|
2W-15BK
|
2W-20BK
|
2W-25BK
|
2W-32BK
|
2W-40BK
|
2W-50BK
|
|
Pipe Size
|
|
|
3/8"
|
1/2"
|
3/4"
|
1"
|
1 1/4"
|
1 1/2"
|
2"
|
|
Orifice
|
|
|
16mm
|
16mm
|
20mm
|
25mm
|
32mm
|
40mm
|
50mm
|
|
Fluid
|
Air water oil, the neutral gasliquid
|
Service voltage
|
AC110V/220V/DC24V(50/60Hz)
|
||||||
|
Operating
|
Pilot type
|
Type
|
Normally open
|
||||||
|
Body material
|
Stainless steel 304
|
Working pressure
|
(water, air): 1-10kgf/cm2
|
||||||
|
Material of seal
|
Standard: Below 80℃ fluid temperature use NBR, below 150℃ use VITON
|
||||||||
Product Show
Packing & Delivery
|
Packaging
|
|
|
Size
|
17cm*17cm*17cm
|
|
Weight
|
Different size has different weight
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). Or according to customers special request.
|
