1 1/2" Stainless Steel Normally Closed Solenoid Valve 12v
Price:
Negotiable
MOQ:
1 - 9 Sets
Delivery Time:
Negotiable
Brand:
AFK
Product Description
304 Stainless Steel 1-1/2 inch Normally Closed Water Solenoid Valve 220v

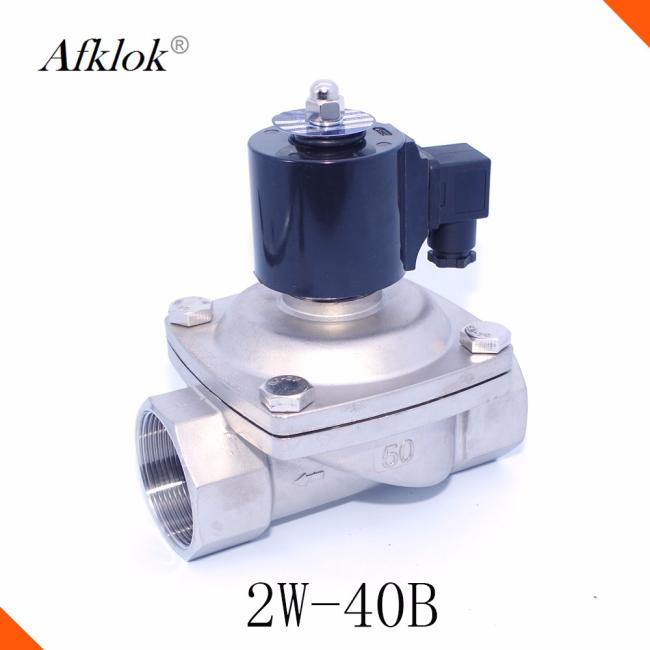

1) Model: 2W-40B
2) Pipe size: 1-1/2 inch
3) Orifice size : 40 mm
2) Pipe size: 1-1/2 inch
3) Orifice size : 40 mm
4) Connection: G , NPT
5) Medium: Air, water, oil
6.Working Pressure:
5) Medium: Air, water, oil
6.Working Pressure:
(water, air )0~10kgf/cm²
(Oil) : 0~7 kgf/cm²
7.Body Material : Stainless steel
8.Seal:Below 80℃ use NBR,
(Oil) : 0~7 kgf/cm²
7.Body Material : Stainless steel
8.Seal:Below 80℃ use NBR,
Below 120℃use EPDM,
Below 150℃ use VITON
|
DESIGN FEATURES
|
|
|
1. Direct acting
|
|
|
2. Fit for air, water, oil , the neutral gas liquid.
|
|
|
3. Type: normally closed.
|
|
|
4.Pipe size from 1/8' to 2' .
|
|
|
5. Service voltage : AC380V, 220V,110V,24V DC24,12V
|
|
|
6.Thread connnector : G, NPT
|
|
|
7. Material: Stainless steel
|
|
|
8.Large flow.
|
Structure Parameters
|
Model NO.
|
2W-025-06
|
2W-025-08
|
2W-040-10
|
2W-160-10
|
2W-160-15
|
|
Pipe size
|
1/8'
|
1/4'
|
3/8'
|
1/2'
|
|
|
Orifice size
|
2.5mm
|
4mm
|
4mm
|
16mm
|
16mm
|
|
CV value
|
0.23
|
0.6
|
4.8
|
4.8
|
|
|
Fluid
|
Air water oil , the neutral gasliquid
|
||||
|
Service voltage
|
AC380V AC220V AC110V AC24V DC24V DC12V ( allow ± 10% )
|
||||
|
Operating
|
Direct acting
|
Type
|
|||
|
Body Material
|
Stainless Steel
|
viscosity
|
|||
|
Working pressure
|
( water, air ) : 0~10 kgf/cm² ( oil ) : 0~7 kgf/m²
|
||||
|
Material of seal
|
Standard : below 80℃ fluid temperature use NBR , below 120℃ use EPDM, below 150℃ use VISTON
|
||||
|
Model NO.
|
2W-200-20
|
2W-250-25
|
2W-320-32
|
2W-400-40
|
2W-500-50
|
|
Pipe size
|
3/4'
|
1'
|
1 1/4‘’
|
1 1/2‘’
|
2‘’
|
|
Orifice size
|
20mm
|
25mm
|
32mm
|
40mm
|
50mm
|
|
CV value
|
7.6
|
12
|
24
|
29
|
48
|
|
Fluid
|
Air water oil, the neutral gasliquid
|
||||
|
Servise voltage
|
AC380V AC220V AC110V AC24V DC24V DV12V ( allow ± 10%)
|
||||
|
Operating
|
Type
|
Normally Closed
|
|||
|
Body Material
|
viscosity
|
( Below )20CST
|
|||
|
Working pressure
|
( water, air ) :0~10 kgf/cm² ( oil ) : 0~7 kgf/m²
|
||||
|
Material of seal
|
Standard : below 80℃ fluid temperature use NBR, below 120℃ use EPDM, below 150℃ use VITON
|
||||
Characteristic
1. The direct-acting type diaphragm structure without pressure to open to extend the using field.
2. Using the plate diaphragm structure opening and closing with reliable. Then extent the product life.
3.Can choose plastic type, explosion-proof energy-saving.
4. Switching element of modern industrial pipeline.
5. Start and stop with eletromagnetic force.
6. Dust elimination and filter should go ahead of use of medium.
5. Start and stop with eletromagnetic force.
6. Dust elimination and filter should go ahead of use of medium.

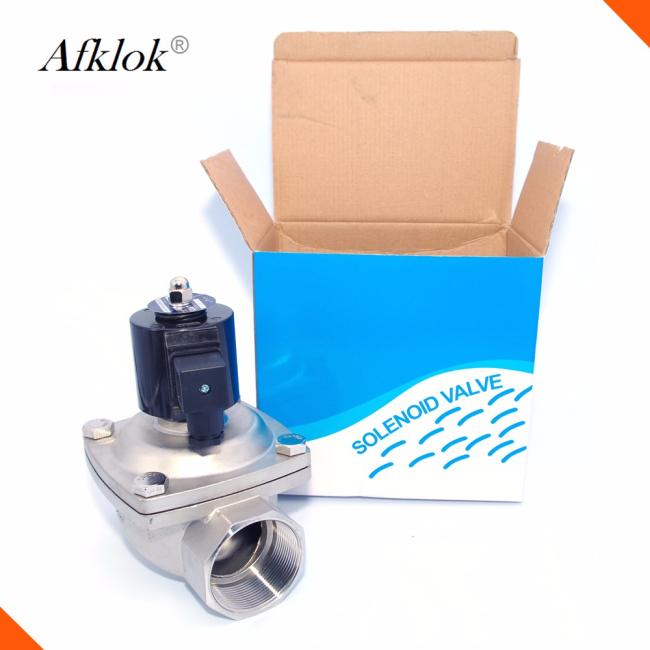

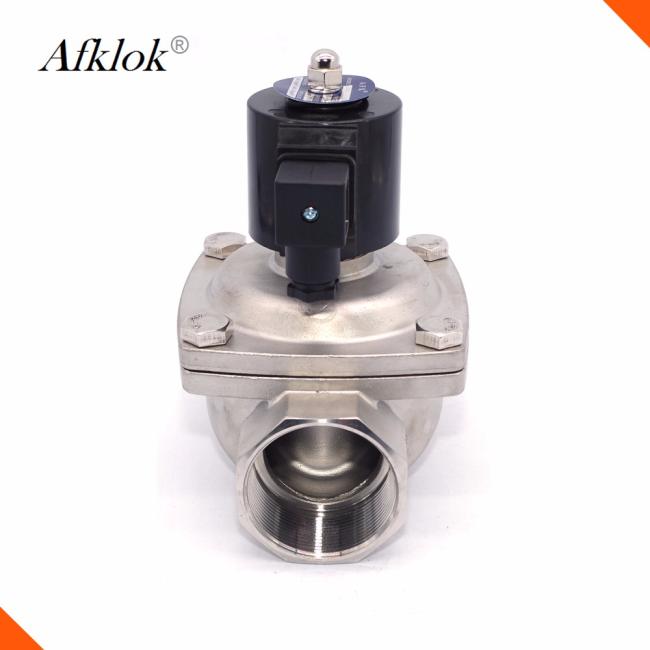

Product Show
Packing & Delivery
|
Packaging
|
|
|
Size
|
17cm*17cm*17cm
|
|
Weight
|
Different size has different weight
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). Or according to customers special request.
|
