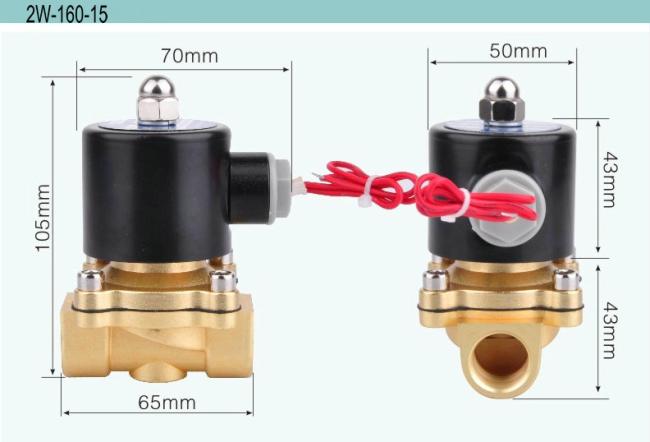

2W-160-15 Water Solenoid Valve Low Voltage Fuild Temperature Below 80°C
Price:
Negotiable
MOQ:
1 Set/Sets
Delivery Time:
Negotiable
Brand:
AFK
Product Description
Brass Low Voltage Electric 1/2 Inch Gas Water Solenoid Valve 24 volt
Technical data
|
Model NO. |
2w-025-06 |
2w-025-08 |
2w-040-10 |
2w-160-10 |
2w-160-15 |
2w-200-20 |
2w-250-25 |
2w-320-32 |
2w-400-40 |
2w-500-50 |
|
Pipe size |
1/8” |
1/4” |
3/8” |
1/2” |
3/4” |
1” |
1 1/4“ |
1 1/2” |
2” |
|
|
Orifce size |
2.5mm |
4mm |
4mm |
16mm |
16mm |
20mm |
25mm |
32mm |
40mm |
50mm |
|
CV valve |
0.23 |
0.6 |
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
|
fuild |
Air, water, ol, the neutral gas,liquid |
|||||||||
|
Service voltage |
AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10% |
|||||||||
|
Operating |
Direct acting |
Type |
Normally closed |
|||||||
|
Body Material |
Brass |
viscosity |
(Below)20CST |
|||||||
|
Working pressure |
Water, air;0-10kgf/m2 ;oil:0-7kgf/m2 |
|||||||||
|
Material of seal |
Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITON |
|||||||||
Main Features
- the direct-acting type diaphragm structure without pressure to open to extend the using field.
- Using the plate diaphragm structure opening and closing with reliable. Then extent product life.
- Can choose plastic type,. Explosion-proof energy-saving.
