12 Volt Water Ball Valve Chemical Resistant High Temp Durable With Diaphragm
Price:
Negotiable
MOQ:
1 Piece/Pieces
Delivery Time:
Negotiable
Brand:
AFK
Product Description
12 Volt Solenoid Valve Chemical Resistant 1/2"-2" High Temperature Diaphragm
Thread: G
*Type: Normally closed
*Seal: NBR
*Medium:Air water oil, the neutral gas liquid
*Working pressure : (water, air):1~10kgf/cm2 (Oil):0~7kgf/cm2
*Operating: Direct acting
*Voltage: AC240V/AC220V/AC120V/AC110V/AC24V/DC24V/DC12V
*Materail: Brass
*2-way normally closed solenoid valve, closed when de-energizes,open when energized.
|
Pipe size |
3/8 |
1/2” |
3/4” |
1” |
1 1/4“ |
1 1/2” |
2” |
|
Orifce size |
16mm |
16mm |
20mm |
25mm |
32mm |
40mm |
50mm |
|
CV valve |
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
fuild |
Air, water, ol, the neutral gas,liquid |
||||||
|
Service voltage |
AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10% |
||||||
|
Operating |
Pilot operating |
Type |
Normally closed |
||||
|
Body Material |
stainless teel 304 |
viscosity |
(Below)20CST |
||||
|
Working pressure |
Water, air;0-10kgf/m2 ;oil:0-7kgf/m2 |
||||||
|
Material of seal |
Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITON |
||||||

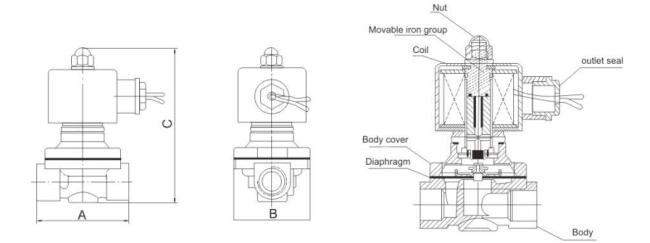

| Model NO. | A | B | C |
| 2W-160-10B | 69 | 57 | 107 |
| 2W-160-15B | 69 | 57 | 107 |
| 2W-200-20B | 73 | 57 | 115 |
| 2W-250-25B | 98 | 77 | 125 |
| 2W-320-32B | 115 | 87 | 153 |
| 2W-400-40B | 124 | 94 | 162 |
| 2W-500-50B | 168 | 123 | 187 |
