Normally Closed Electric Water Valve High Pressure , 1/2 Inch Water Shut Off Valve

Name: Normally Closed Electric Water Valve High Pressure , 1/2 Inch Water Shut Off Valve
Brand: Shenzhen Wofly Technology Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1 Set/Sets

Delivery Time: Negotiable

Brand: AFK

Product Description

2W160-15 220V 110V Normally Closed 1/2 Inch Solenoid Valve Water

Technical data

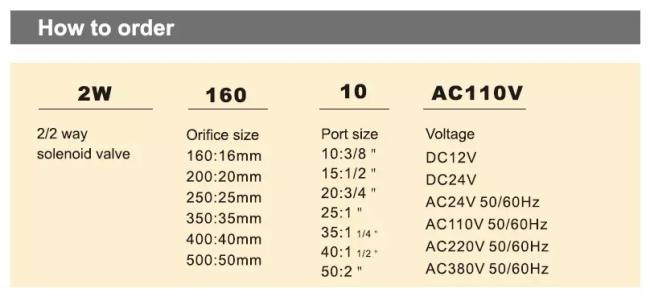

Model NO.	2w-025-06	2w-025-08	2w-040-10	2w-160-10	2w-160-15	2w-200-20	2w-250-20	2w-320-32	2w-400-40	2w-500-50
Pipe size	1/8”	1/4”	3/8”		1/2”	3/4”	1”	1 1/4“	1 1/2”	2”
Orifce size	2.5mm	4mm	4mm	16mm	16mm	20mm	25mm	32mm	40mm	50mm
CV valve	0.23		0.6	4.8	4.8	7.6	12	24	29	48
fuild	Air, water, ol, the neutral gas,liquid
Service voltage	AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10%
Operating	Direct acting				Type	Normally closed
Body Material	Brass				viscosity	(Below)20CST
Working pressure	Water, air;0-10kgf/m2 ;oil:0-7kgf/m2
Material of seal	Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITON

Main Features

the direct-acting type diaphragm structure without pressure to open to extend the using field.
Using the plate diaphragm structure opening and closing with reliable. Then extent product life.
Can choose plastic type,. Explosion-proof energy-saving.
