2 Way High Temperature 1-1/2 inch Hot Water Solenoid Valve DC 24V
Price:
Negotiable
MOQ:
1 - 9 Sets
Delivery Time:
Negotiable
Brand:
AFK
Product Description
1-1/2" High temperature 24v dc solenoid valve for water steam
1.Model: 2L-40
2.Size: 1-1/2 inch
3.Thread: G
4.Operation: Pilot type
5.Operating pressure range: 0.2-1.6Mpa
6.Insulation grade: B class
7.Power: 26W
8.Material: Brass
9.Medium: Liquid gas steam <20CST
10.Response time: Open≤2 second ≤3 second
11.Voltage: AC240V/AC220V/AC120V/AC110V/AC24V/DC24V/DC12V
| Maximum working pressure | 1.6Mpa |
| Operating pressure range | 0.2-1.6Mpa |
| Media temperature | <20cst liquid gas steam |
| Operation | Pilot type |
| Voltage | AC:380V 220V 36V/50Hz DC:24V |
| Isulation grade | B class |
| The power supply range | -15%~+10% |
| Power | 26W |
| Response time | open <=2 second close<=3 second |
| Install way | Media flow direction and the no the arrow consistent.The coil vertically upward, the working media clean and no particle impurities |

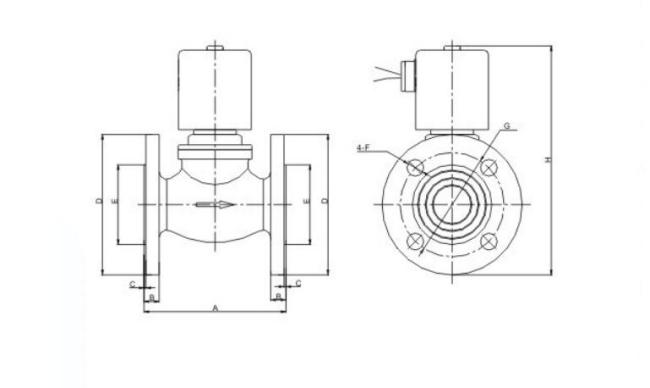

Structure Parameters
| Model | Thread | Size | Material |
| 2L-15 | G | 1/2" | Brass |
| 2L-20 | G | 3/4" | Brass Brass Brass Brass Brass |
| 2L-25 | G | 1" | |
| 2L-32 | G | 1 1/4" | |
| 2L-40 | G | 1 1/2" | |
| 2L-50 | G | 2" |
