Brass 1/2 inch G Thread 220V AC Steam Air Solenoid Valve 24V DC
Price:
Negotiable
MOQ:
1 - 9 Sets
Delivery Time:
Negotiable
Brand:
AFK
Product Description
Brass 1/2 inch G Thread 220V AC Steam Air Solenoid Valve 24V DC
1.Model: 2L-15
2.Size: 1/2 inch
3.Thread: G
4.Operation: Pilot type
5.Operating pressure range: 0.2-1.6Mpa
6.Insulation grade: B class
7.Power: 26W
8.Material: Brass
9.Medium: Liquid gas steam <20CST
10.Response time: Open≤2 second ≤3 second
11.Voltage: AC240V/AC220V/AC120V/AC110V/AC24V/DC24V/DC12V
Characteristic
1.The top structure of automatic compensation sealing type greatly extend the service life of the valve.
2.Design of balance piston clearance greatly enhances the reliability of the valve at high temperature.
3.Install way: Media flow direction and on the arrow consistent.
The coil vertically upward, the working media clean and no particle impurities.
| Maximum working pressure | 1.6Mpa |
| Operating pressure range | 0.2-1.6Mpa |
| Media temperature | <20cst liquid gas steam |
| Operation | Pilot type |
| Voltage | AC:380V 220V 36V/50Hz DC:24V |
| Isulation grade | B class |
| The power supply range | -15%~+10% |
| Power | 26W |
| Response time | open <=2 second close<=3 second |
| Install way |
Media flow direction and the no the arrow consistent.The coil vertically upward, the working media clean and no particle impurities |

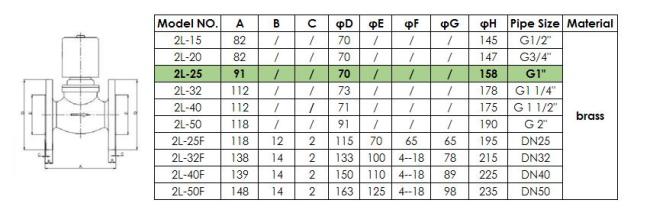

Structure Parameters
